Genuine EX Kawasaki Parts delivered quickly!


GEAR CHANGE DRUM/SHIFT FORK(S)

EX250H5 ZZR250 1994 EUROPE NL AR GR IT

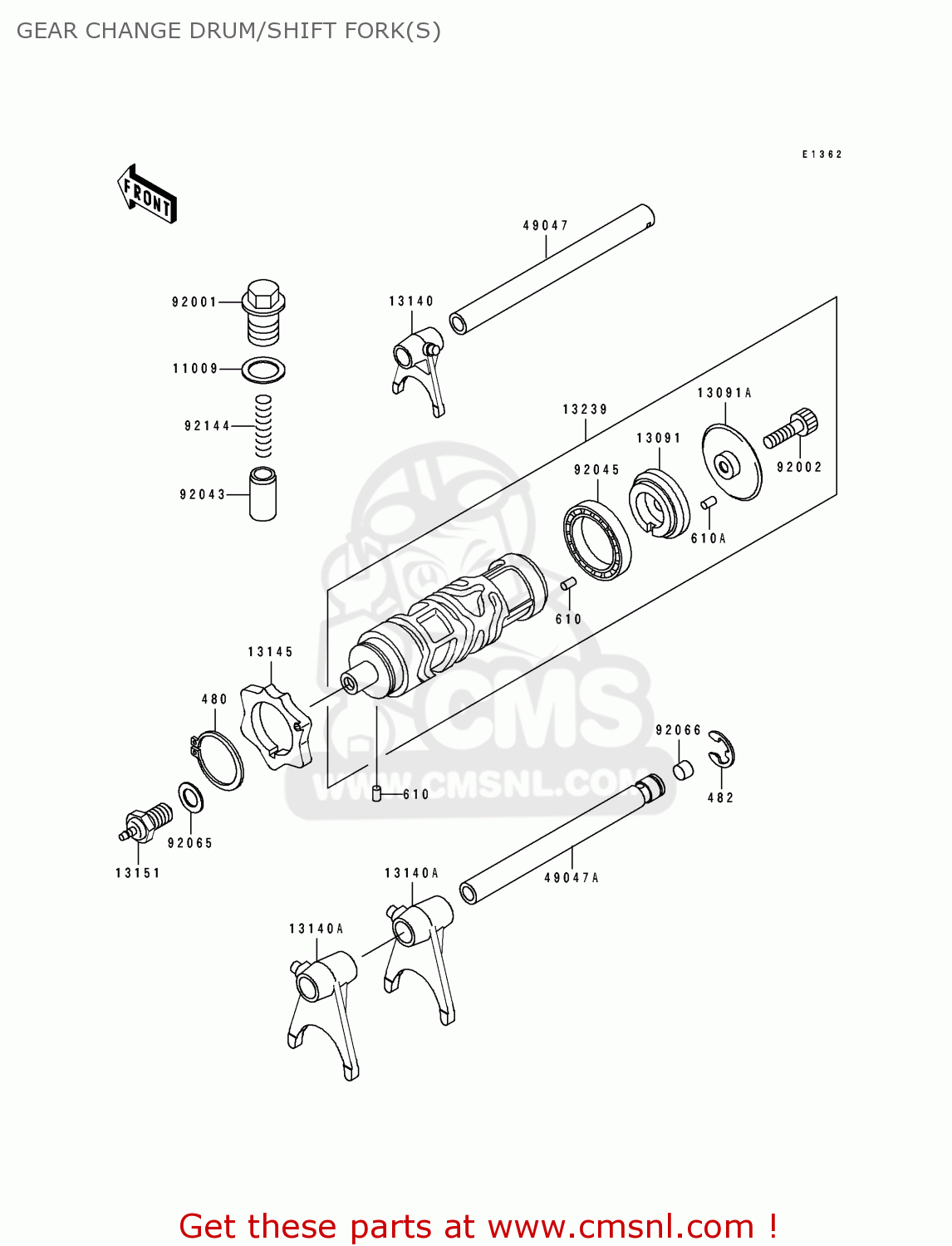

Gear change drum/shift fork(s) diagram EX250H5 ZZR250 1994 EUROPE NL AR GR IT

GEAR CHANGE DRUM/SHIFT FORK(S) EX250H5 ZZR250 1994 EUROPE NL AR GR IT
GEAR CHANGE DRUM/SHIFT FORK(S) EX250H5 ZZR250 1994 EUROPE NL AR GR IT
GEAR CHANGE DRUM/SHIFT FORK(S) EX250H5 ZZR250 1994 EUROPE NL AR GR IT
prices are in EUR
ref
part #
description
quantity
480
480J3000
ref: 480
CIRCLIP-TYPE-C,30MM
480J3000
€ 3.50
482
482J0100
ref: 482
CIRCLIP-TYPE-E,10MM
482J0100
€ 0.50
610
610A0406
ref: 610
ROLLER,4X6
610A0406
€ 2.50
610A
610A0408
ref: 610A
ROLLER,4X8
610A0408
€ 2.50
11009
110091008
ref: 11009
GASKET,15.5X22X1 (NAS)
110091008
€ 2.50
13091
130911417
ref: 13091
HOLDER
130911417
€ 30.00
13091A
130911464
ref: 13091A
HOLDER,CHANGE DRUM
130911464
€ 5.50
13140
131401148
ref: 13140
FORK-SHIFT,IN
131401148
€ 65.50
13140A
131401149
ref: 13140A
FORK-SHIFT,OUT
131401149
€ 65.50
13145
131451058
ref: 13145
CAM-CHANGE DRUM
131451058
€ 15.00
13151
131511007
ref: 13151
SWITCH,NEUTRAL
131511007
€ 9.00
13239
132391131
ref: 13239
DRUM-ASSY-CHANGE
132391131
€ 199.50
49047
490471066
ref: 49047
ROD-SHIFT,IN
490471066
€ 18.50
49047A
490471067
ref: 49047A
ROD-SHIFT,OUT
490471067
€ 19.50
92001
920011037
ref: 92001
BOLT,NEUTAL POSITION
920011037
€ 9.50
92002
920021696
ref: 92002
BOLT,SOCKET,6X25
920021696
€ 1.50
92043
92043076
ref: 92043
PIN-NEUTRAL PISTON
92043076
€ 8.00
92045
920451152
ref: 92045
BEARING-BALL,6806
920451152
€ 47.00
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92066
920661246
ref: 92066
PLUG
920661246
€ 2.50
92144
921441580
ref: 92144
SPRING
921441580
€ 4.00
