GEAR CHANGE MECHANISM

EX250H5 ZZR250 1994 EUROPE NL AR GR IT

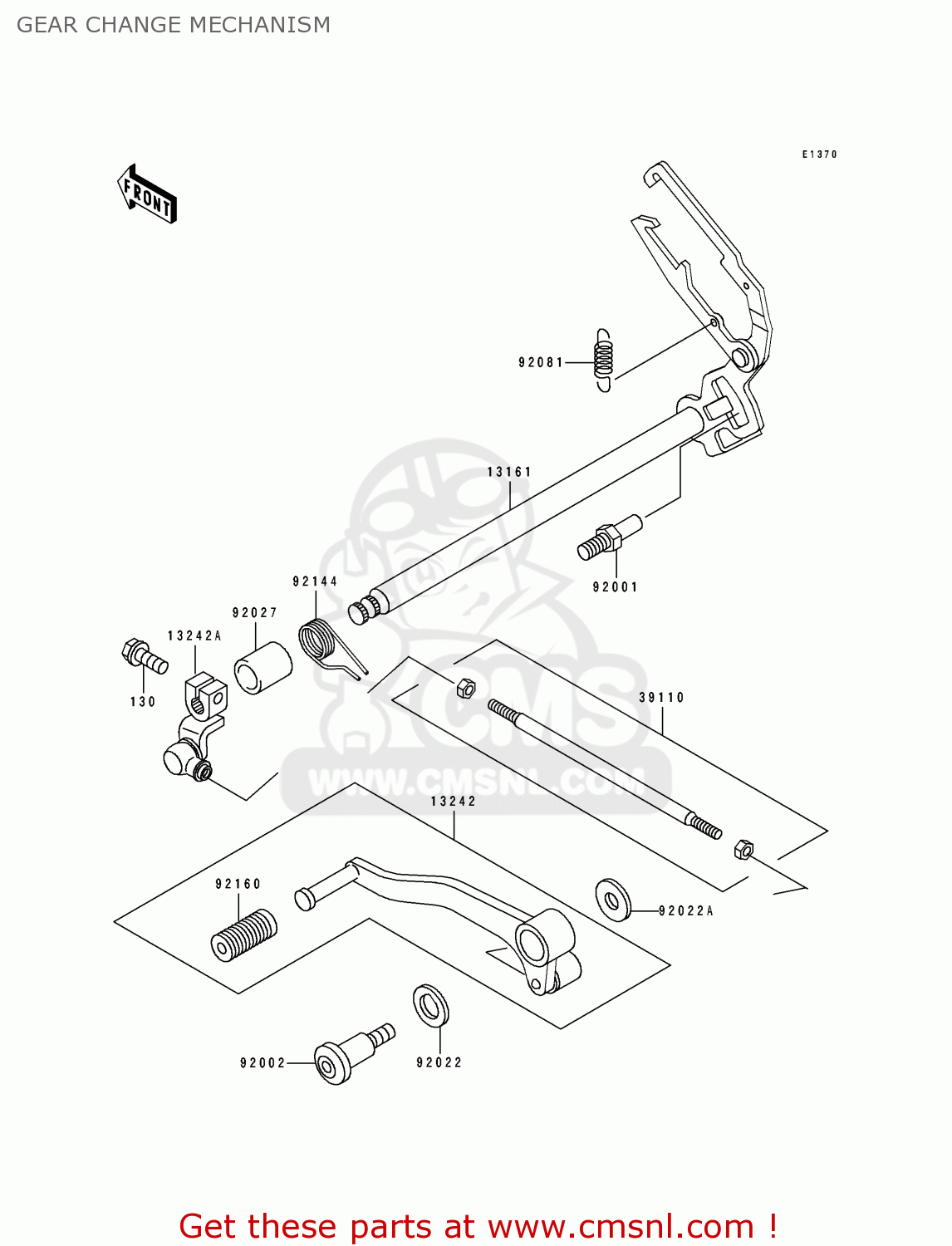

Gear change mechanism diagram EX250H5 ZZR250 1994 EUROPE NL AR GR IT

GEAR CHANGE MECHANISM EX250H5 ZZR250 1994 EUROPE NL AR GR IT
GEAR CHANGE MECHANISM EX250H5 ZZR250 1994 EUROPE NL AR GR IT
GEAR CHANGE MECHANISM EX250H5 ZZR250 1994 EUROPE NL AR GR IT
prices are in EUR
ref
part #
description
quantity
130
130G0620
ref: 130
BOLT,FLANGED,6X20
130G0620
€ 2.50
13161
131611131
ref: 13161
LEVER-COMP-CHANGE SHA
131611131
€ 77.00
13242
132421215
ref: 13242
LEVER-ASSY-CHANGE,PED
132421215
€ 40.00
13242A
132421280
ref: 13242A
LEVER-ASSY-CHANGE,BOS
132421280
€ 27.50
39110
391101013
ref: 39110
ROD-ASSY-TIE,CHANGE L
391101013
€ 15.50
92001
920011455
ref: 92001
BOLT
920011455
€ 3.00
92002
920021926
ref: 92002
BOLT,CHANGE PEDAL
920021926
€ 10.50
92022
92022072
ref: 92022
WASHER,12.5X22X1.2
92022072
€ 2.50
92022A
920221561
ref: 92022A
WASHER,8.5X20X1.6
920221561
€ 2.50
92027
920271440
ref: 92027
COLLAR,13X18.3X21.5
920271440
€ 3.50
92081
92081076
ref: 92081
SPRING-CHANG LEVER
92081076
€ 3.50
92144
921441074
ref: 92144
SPRING,CHANGE PEDAL R
921441074
€ 6.50
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
921601036
€ 3.50
