STARTER MOTOR
EX250H5 ZZR250 1994 EUROPE NL AR GR IT

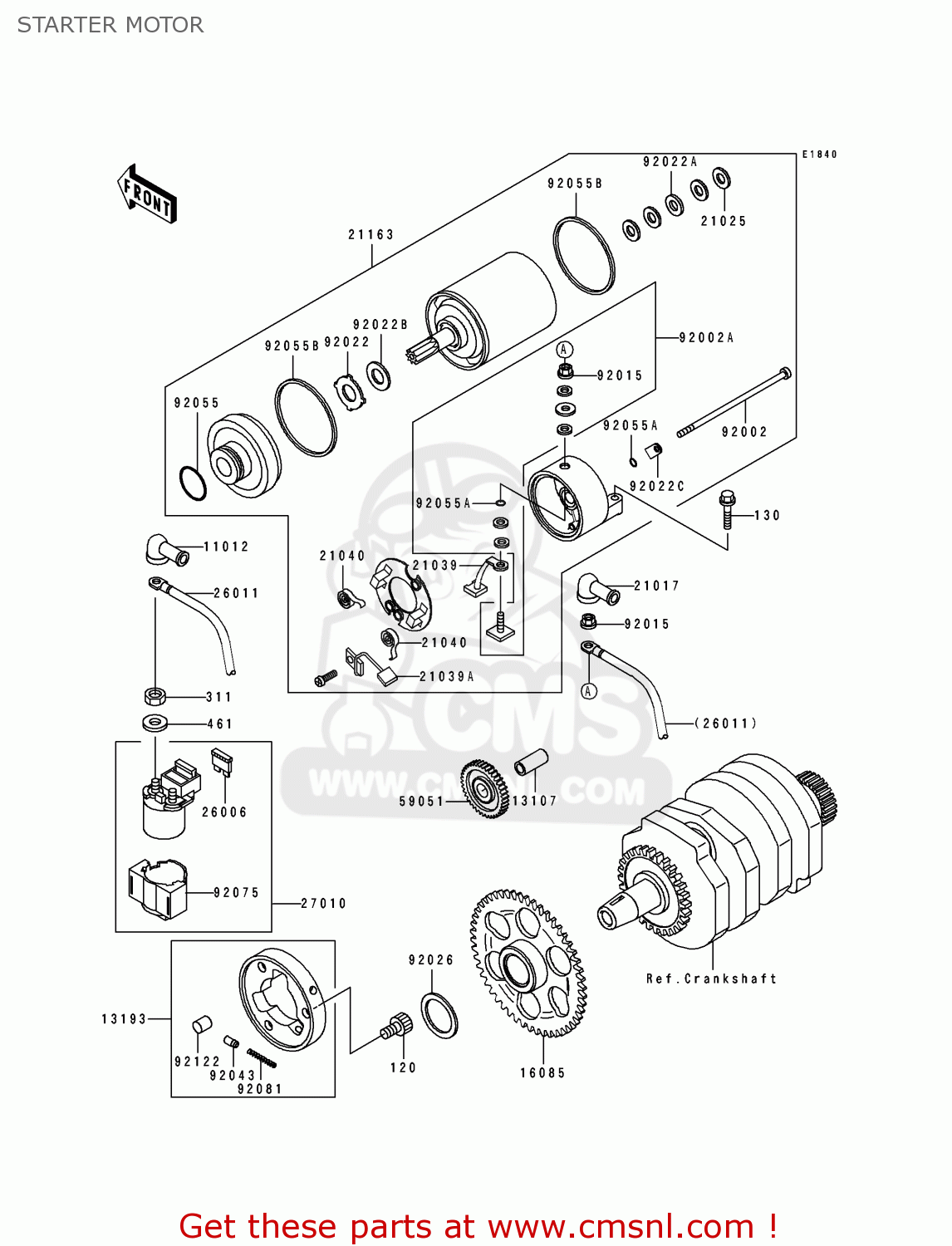

Starter motor diagram EX250H5 ZZR250 1994 EUROPE NL AR GR IT
STARTER MOTOR EX250H5 ZZR250 1994 EUROPE NL AR GR IT
×
prices are in EUR
ref
part #
description
quantity
120
120P0814
ref: 120
BOLT-SOCKET,8X14
€ 3.00
130
130J0620
ref: 130
BOLT-FLANGED,6X20
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
11012
110121354
ref: 11012
CAP,TERMINAL
€ 7.00
13107
131071176
ref: 13107
SHAFT,7.8X12X26.5
€ 6.50
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 96.00
16085
160851166
ref: 16085
GEAR,ONEWAY CLUTCH,65
€ 121.00
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21039
210391001
ref: 21039
BRUSH,CARBON(+)
€ 21.50
21039A
210391056
ref: 21039A
BRUSH,CARBON(-)
€ 20.50
21040
210401053
ref: 21040
SPRING-BRUSH
€ 6.50
21163
211631221
ref: 21163
STARTER-ELECTRIC
€ 506.00
26006
260061006
ref: 26006
FUSE,30A-G
€ 3.00
26011
260111376
ref: 26011
WIRE-LEAD
€ 55.00
27010
270101213
ref: 27010
SWITCH,MAGNETIC
€ 111.00
59051
590511154
ref: 59051
GEAR-SPUR,IDLE
€ 101.50
92002
920021818
ref: 92002
BOLT,STARTER
€ 5.00
92002A
920021819
ref: 92002A
BOLT,TERMINAL
€ 17.50
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
920221130
ref: 92022
WASHER,THRUST SUPPORT
€ 4.00
92022A
920221132
ref: 92022A
WASHER,9.1X18X0.8
€ 4.00
92022B
920221714
ref: 92022B
WASHER,22X12.2X0.5
€ 2.50
92022C
920221825
ref: 92022C
WASHER,LOCK
€ 4.00
92026
920261004
ref: 92026
SPACER,25X40X1
€ 4.50
92043
92043132
ref: 92043
PIN
€ 4.00
92055
920551303
ref: 92055
RING-O
€ 7.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
€ 3.00
92055B
920551418
ref: 92055B
RING-O
€ 7.50
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
€ 14.00
92081
92081159
ref: 92081
SPRING, COIL
€ 2.50
92122
92122006
ref: 92122
ROLLER
€ 4.00
