COWLING LOWERS(EX250-H5)

EX250H5 ZZR250 1994 EUROPE NL AR GR IT

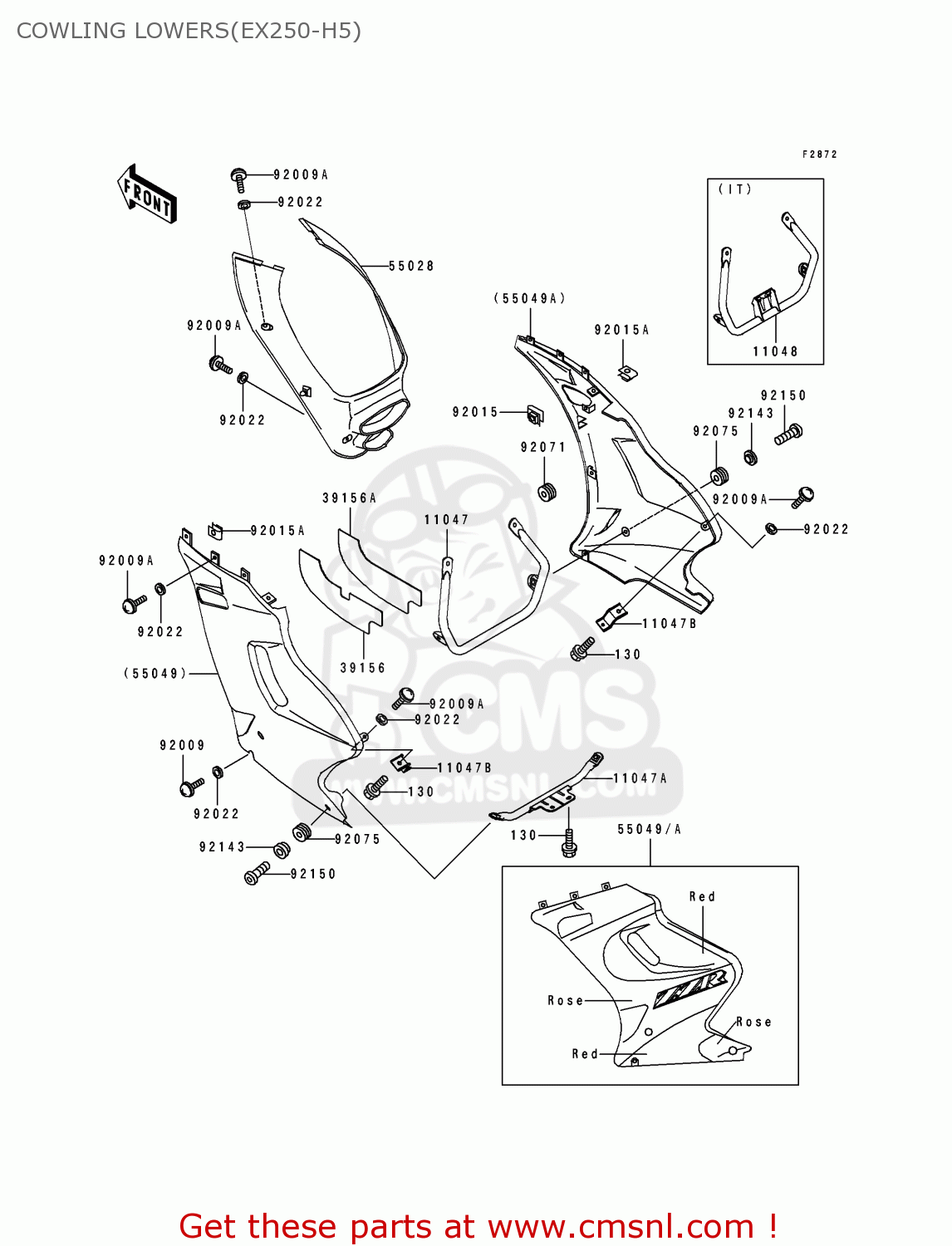

Cowling lowers(ex250-h5) diagram EX250H5 ZZR250 1994 EUROPE NL AR GR IT

COWLING LOWERS(EX250-H5) EX250H5 ZZR250 1994 EUROPE NL AR GR IT
COWLING LOWERS(EX250-H5) EX250H5 ZZR250 1994 EUROPE NL AR GR IT
COWLING LOWERS(EX250-H5) EX250H5 ZZR250 1994 EUROPE NL AR GR IT
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
11047
110471036
ref: 11047
AREUGRNL
BRACKET,LWR COWLING,F
€ 25.00
11047A
110471037
ref: 11047A
BRACKET,LWR COWLING,R
110471037
€ 29.00
11047B
110471038
ref: 11047B
BRACKET,LWR COWLING
110471038
€ 6.50
11048
110481303
ref: 11048
IT
BRACKET,LWR COWLING,F
110481303
€ 25.00
39156
391561417
ref: 39156
PAD,LWR COWLING,LH
€ 34.50
39156A
391561418
ref: 39156A
PAD,LWR COWLING,RH
€ 34.50
55028
550281262HC
ref: 55028
COWLING,FR,L.ROSE OPE
€ 176.00
55049
550495206HF
ref: 55049
COWLING.,LWR,LH,RED/R
€ 444.50
55049A
550495207HF
ref: 55049A
COWLING.,LWR,RH,RED/R
€ 444.50
92009
920091659
ref: 92009
SCREW
920091659
€ 2.50
92009A
920091660
ref: 92009A
SCREW
920091660
€ 3.00
92015
920151573
ref: 92015
NUT,5MM
920151573
€ 4.50
92015A
920151798
ref: 92015A
NUT
920151798
€ 4.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
92143
921431226
ref: 92143
COLLAR,BLACK
921431226
€ 7.50
92150
921501553
ref: 92150
BOLT,SOCKET,6X18
921501553
€ 4.00
