FRONT MASTER CYLINDER

EX250H5 ZZR250 1994 EUROPE NL AR GR IT

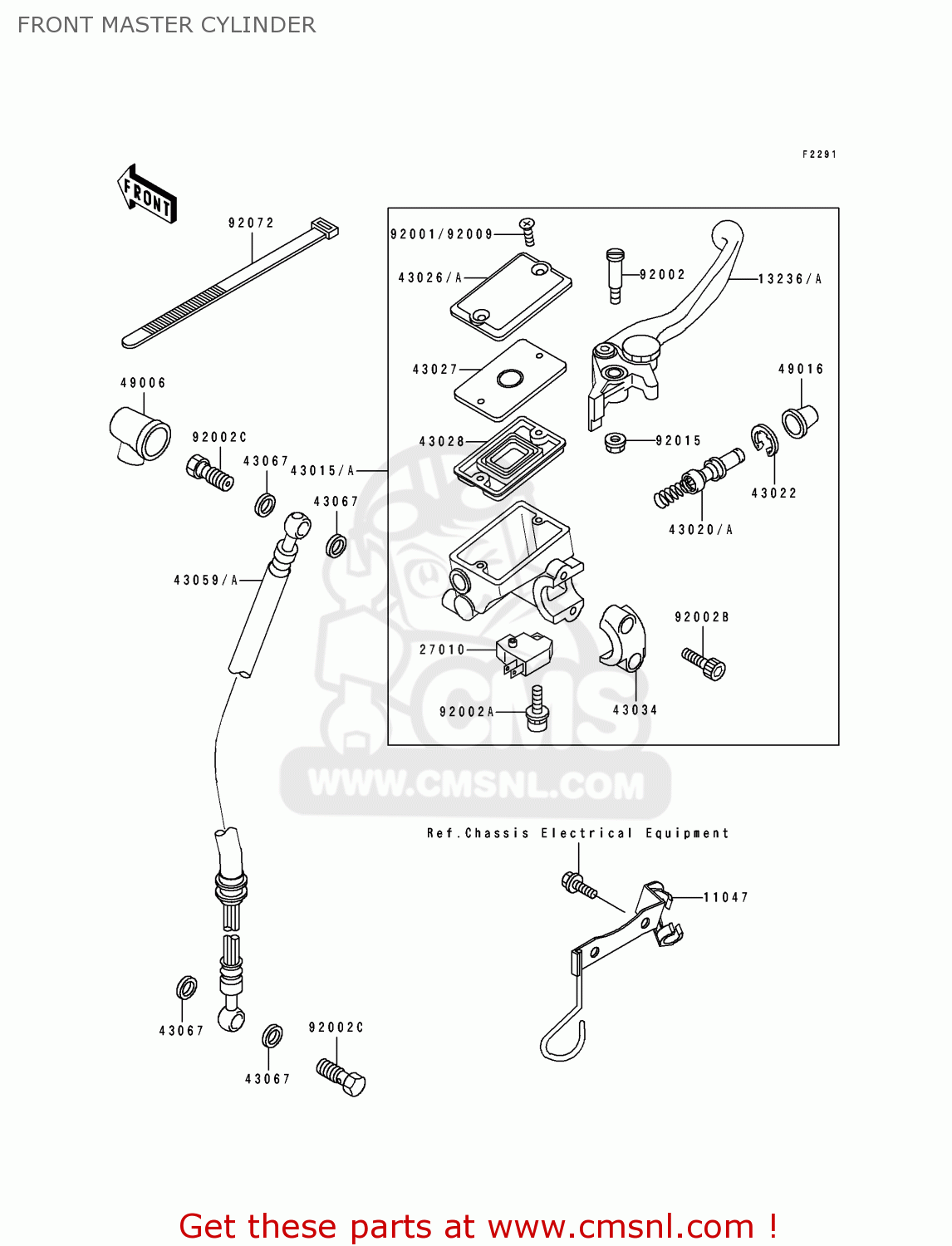

Front master cylinder diagram EX250H5 ZZR250 1994 EUROPE NL AR GR IT

FRONT MASTER CYLINDER EX250H5 ZZR250 1994 EUROPE NL AR GR IT
FRONT MASTER CYLINDER EX250H5 ZZR250 1994 EUROPE NL AR GR IT
FRONT MASTER CYLINDER EX250H5 ZZR250 1994 EUROPE NL AR GR IT
prices are in EUR
ref
part #
description
quantity
11047
110471125
ref: 11047
BRACKET,HOSE&CABLE
110471125
€ 16.50
13236A
132361221
ref: 13236A
LEVER-COMP,FRONT BRAK
132361221
€ 40.50
27010
270101170
ref: 27010
SWITCH,BRAKE
270101170
€ 26.00
43015A
430151496
ref: 43015A
CYLINDER-ASSY-MASTER,
€ 397.50
43020A
430201098
ref: 43020A
PISTON-COMP-BRAKE
430201098
€ 38.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
430221010
€ 3.00
43026A
430261076
ref: 43026A
CAP-BRAKE
430261076
€ 31.00
43027
430271055
ref: 43027
PLATE-DIAPHRAGM
430271055
€ 5.50
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
430281058
€ 15.50
43034
430341053
ref: 43034
HOLDER-BRAKE,MASTER C
430341053
€ 26.00
43059A
430591804
ref: 43059A
HOSE-BRAKE,FR
€ 93.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
49006
490061040
ref: 49006
BOOT,DUST
490061040
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
92002
920021322
ref: 92002
BOLT,LEVER SET
920021322
€ 8.00
92002A
920021323
ref: 92002A
BOLT
920021323
€ 2.50
92002B
920021324
ref: 92002B
BOLT,SOCKET,6X20
920021324
€ 5.00
92002C
920021888
ref: 92002C
BOLT,OIL,L=23
920021888
€ 3.50
92009
920091458
ref: 92009
SCREW,4MM
920091458
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
920151233
€ 3.50
92072
920721197
ref: 92072
BAND
920721197
€ 5.00
