STAND(S)
EX250H5 ZZR250 1994 EUROPE NL AR GR IT

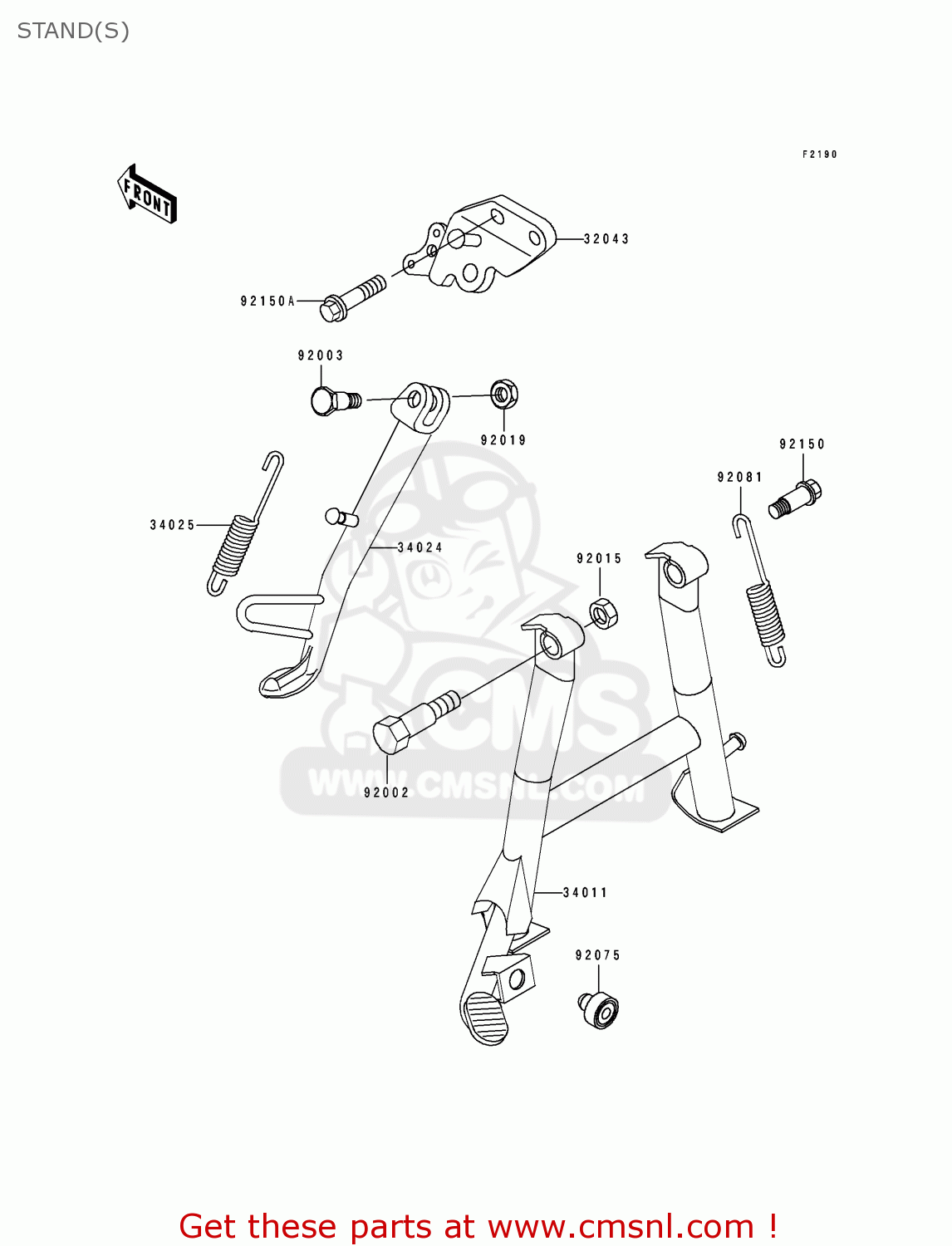

Stand(s) diagram EX250H5 ZZR250 1994 EUROPE NL AR GR IT
STAND(S) EX250H5 ZZR250 1994 EUROPE NL AR GR IT
×
prices are in EUR
ref
part #
description
quantity
32043
320431351GD
ref: 32043
BRACKET-STAND,SIDE,G.
€ 36.00
34011
340111148
ref: 34011
STAND-CENTER
€ 159.50
34024
340241271GD
ref: 34024
STAND-SIDE,G.GRAY
€ 64.50
34025
34025005
ref: 34025
SPRING-SIDE STAND
€ 5.00
92002
920021518
ref: 92002
BOLT,CENTER STAND
€ 7.50
92003
92003157
ref: 92003
BOLT,SIDE STAND FIT
€ 6.50
92015
920151188
ref: 92015
NUT,LOCK,10MM,BLACK
€ 4.00
92019
92019021
ref: 92019
NUT,LOCK,10M/M
€ 2.00
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92081
920811834
ref: 92081
SPRING,CENTER STAND
€ 10.00
92150
921501113
ref: 92150
BOLT,CENTER STAND SPR
€ 4.50
92150A
921501174
ref: 92150A
BOLT,FLANGED,10X30
€ 3.50
