CYLINDER HEAD
EX250H5 ZZR250 1994 EUROPE NL AR GR IT

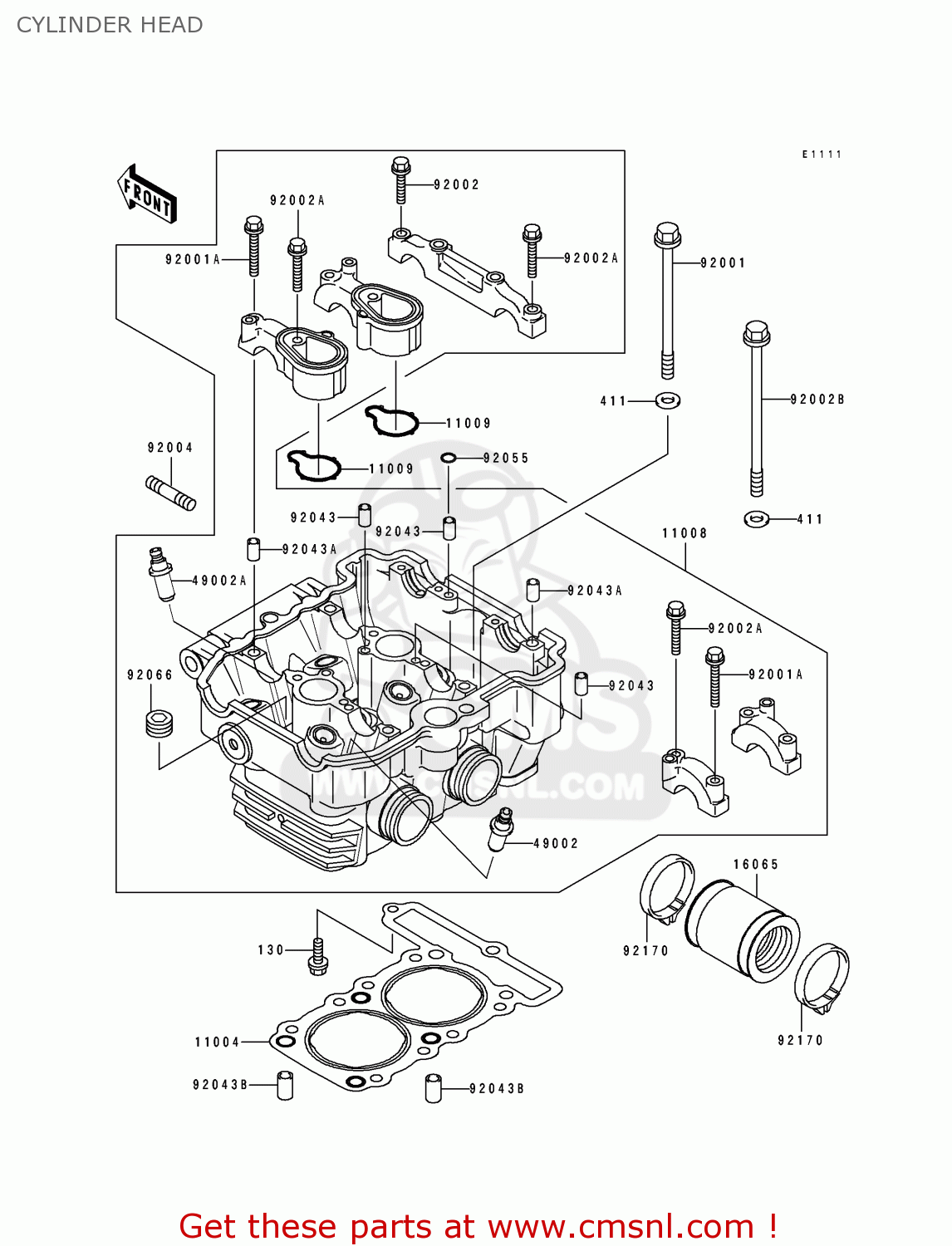

Cylinder head diagram EX250H5 ZZR250 1994 EUROPE NL AR GR IT
CYLINDER HEAD EX250H5 ZZR250 1994 EUROPE NL AR GR IT
×
prices are in EUR
ref
part #
description
quantity
130
130J0625
ref: 130
BOLT-FLANGED,6X25
€ 2.00
411
411B0800
ref: 411
WASHER-PLAIN,8MM
€ 0.50
11004
110041207
ref: 11004
GASKET-HEAD (NAS)
€ 29.50
11008
110081201
ref: 11008
HEAD-COMP-CYLINDER
€ 1,207.50
11009
110091573
ref: 11009
GASKET,CAMSHAFT BRAKE (NAS)
€ 5.00
16065
160651156
ref: 16065
HOLDER-CARBURETOR
€ 21.00
49002
490021070
ref: 49002
GUIDE-VALVE,INTAKE
€ 27.00
49002A
490021071
ref: 49002A
GUIDE-VALVE,EXHAUST
€ 27.00
92001
920011481
ref: 92001
BOLT,8X115
€ 8.00
92001A
920011872
ref: 92001A
BOLT,6X46
€ 2.50
92002
920021755
ref: 92002
BOLT,6X30
€ 2.50
92002A
920021756
ref: 92002A
BOLT,6X40
€ 3.00
92002B
920021832
ref: 92002B
BOLT,8X146
€ 8.00
92004
92004066
ref: 92004
STUD, 6X27
€ 3.50
92043
920431262
ref: 92043
PIN,DOWEL,4.2X6X12
€ 2.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
€ 0.50
92043B
920431264
ref: 92043B
PIN,DOWEL,8.2X10X14
€ 0.50
92055
920551339
ref: 92055
RING-O,5.5X1.5
€ 3.00
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
€ 6.50
92170
921701438
ref: 92170
CLAMP
€ 5.50
