AIR CLEANER
EX250H5 ZZR250 1994 EUROPE NL AR GR IT

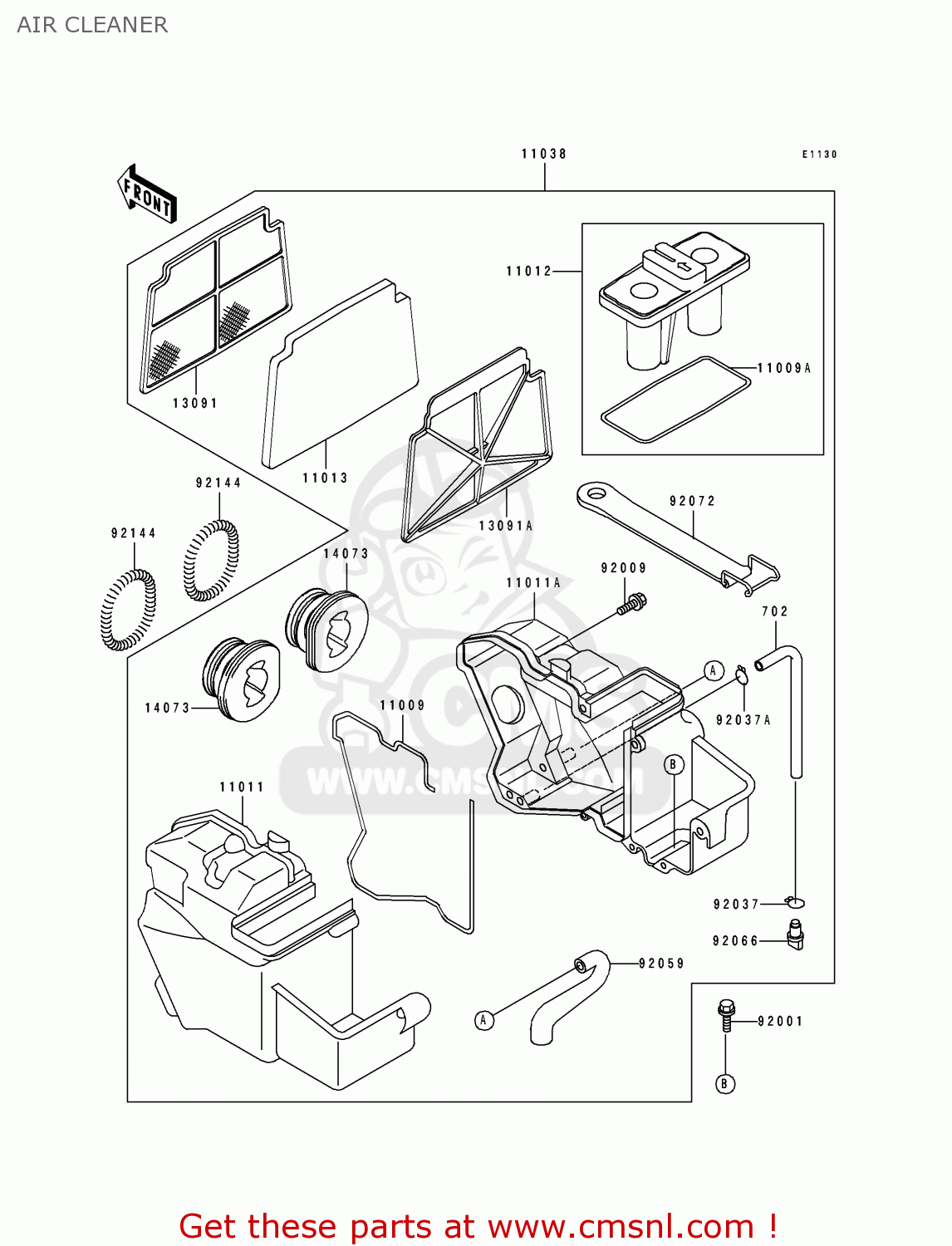

Air cleaner diagram EX250H5 ZZR250 1994 EUROPE NL AR GR IT
AIR CLEANER EX250H5 ZZR250 1994 EUROPE NL AR GR IT
×
prices are in EUR
ref
part #
description
quantity
702
702A07200
ref: 702
TUBE-RUBBER
€ 9.50
11009
110091599
ref: 11009
GASKET,AIR FILTER (NAS)
€ 8.50
11009A
110091613
ref: 11009A
GASKET (NAS)
€ 7.00
11011
110111218
ref: 11011
CASE-AIR FILTER,LH
€ 71.00
11011A
110111219
ref: 11011A
CASE-AIR FILTER,RH
€ 67.00
11012
110121504
ref: 11012
CAP,INTAKE
€ 28.00
11013
110131141
ref: 11013
ELEMENT-AIR FILTER
€ 6.50
11038
110381063
ref: 11038
CASE-ASSY-AIR FILTER
€ 241.00
13091
130911421
ref: 13091
HOLDER,AIR FILTER,FR
€ 13.50
13091A
130911422
ref: 13091A
HOLDER,AIR FILTER,RR
€ 15.50
14073
140731307
ref: 14073
DUCT,AIR FILTER
€ 18.50
92001
920011773
ref: 92001
BOLT,6X20
€ 2.50
92009
920091339
ref: 92009
SCREW,TAPPING, 5X25
€ 3.00
92037
920371712
ref: 92037
CLAMP
€ 3.00
92037A
920371972
ref: 92037A
CLAMP,TUBE
€ 2.50
92059
920591676
ref: 92059
TUBE,BREAHER
€ 12.00
92066
920661211
ref: 92066
PLUG
€ 5.50
92072
920721196
ref: 92072
BAND,AIR FILTER
€ 19.00
92144
921441771
ref: 92144
SPRING,AIR FILTER DUC
€ 8.00
