FRONT FORK
EX250H5 ZZR250 1994 EUROPE NL AR GR IT

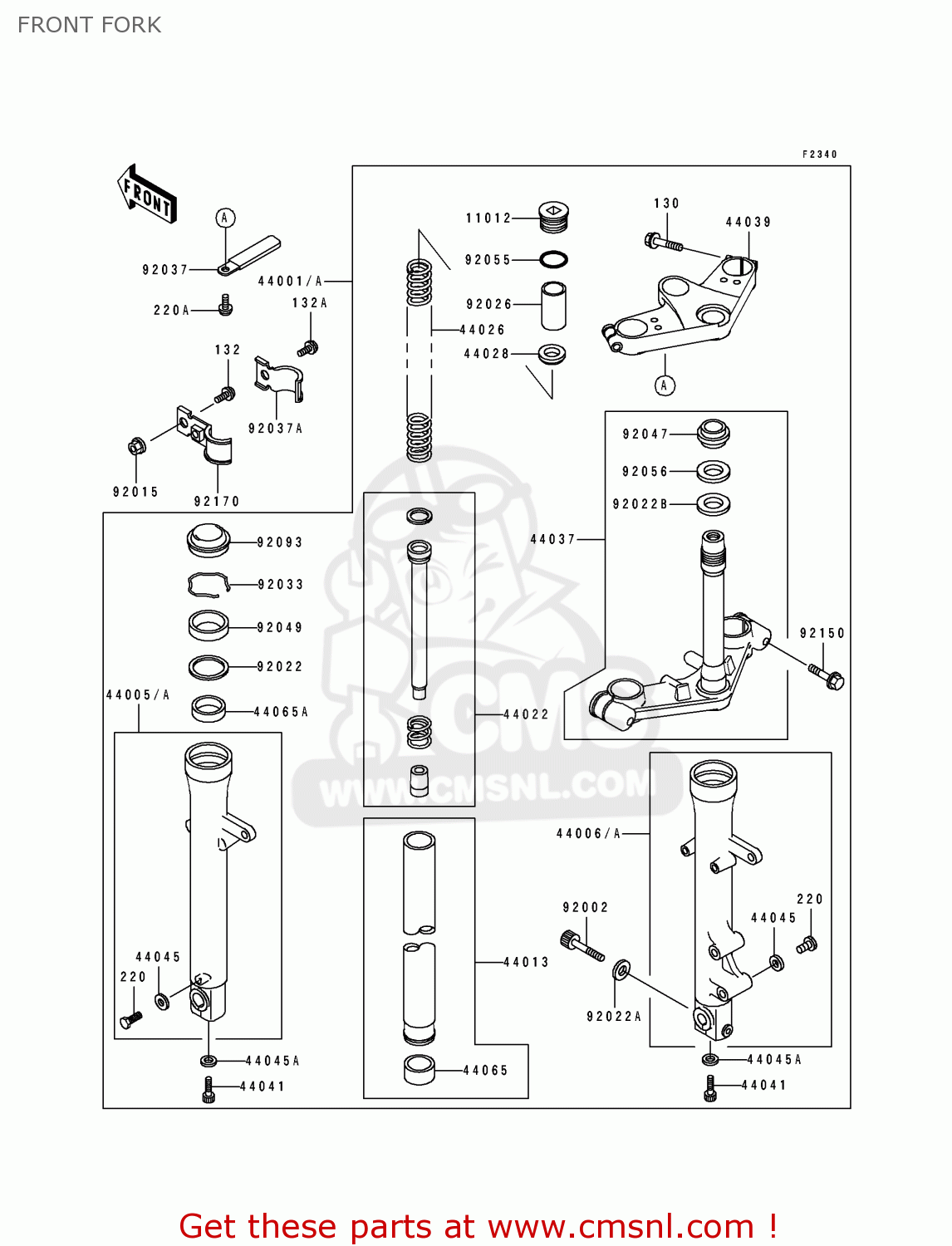

Front fork diagram EX250H5 ZZR250 1994 EUROPE NL AR GR IT
FRONT FORK EX250H5 ZZR250 1994 EUROPE NL AR GR IT
×
prices are in EUR
ref
part #
description
quantity
130
130G0835
ref: 130
BOLT,FLANGED,8X35
€ 1.00
132
132E0620
ref: 132
EUGRITNL
BOLT-FLANGED-SMALL
€ 2.00
11012
110121764
ref: 11012
CAP,FORK TOP
€ 36.50
44001A
440011892GD
ref: 44001A
FORK-FRONT,G.GRAY
€ 1,481.50
44005A
440051336
ref: 44005A
PIPE-LEFT FORK OUTER
€ 345.50
44006A
440061334
ref: 44006A
PIPE-RIGHT FORK OUTER
€ 345.50
44013
440131332
ref: 44013
PIPE-FORK INNER
€ 162.50
44022
440221261
ref: 44022
CYLINDER-FORK
€ 87.00
44026
440261473
ref: 44026
SPRING-FRONT FORK
€ 26.50
44028
440281003
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44037
440371296
ref: 44037
HOLDER-FORK UNDER
€ 297.50
44039
440391202GD
ref: 44039
HOLDER-FORK UPPER,G.G
€ 230.00
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
€ 4.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44045A
44045057
ref: 44045A
GASKET (NAS)
€ 3.00
44065
440651083
ref: 44065
BUSHING-FRONT FORK,IN
€ 17.00
44065A
440651084
ref: 44065A
BUSHING-FRONT FORK
€ 15.00
92002
920021316
ref: 92002
BOLT
€ 3.50
92015
920151237
ref: 92015
EUGRITNL
NUT,FLANGED,6MM,BLACK
€ 3.50
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
€ 4.50
92022A
920221598
ref: 92022A
WASHER
€ 4.50
92022B
92022231
ref: 92022B
WASHER,PLAIN
€ 3.00
92026
920261288
ref: 92026
SPACER,FORK,L=100
€ 11.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371539
ref: 92037
CLAMP,L=45
€ 3.00
92037A
920371898
ref: 92037A
CLAMP,HOSE
€ 5.50
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
€ 14.50
92049
920491372
ref: 92049
SEAL-OIL,FORK OUTER T
€ 15.00
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
€ 6.00
92093
920931314
ref: 92093
SEAL,FORK OUTER TUBE
€ 16.50
92150
921501438
ref: 92150
BOLT,FLANGED,10X32
€ 9.00
92170
921701200
ref: 92170
CLAMP,HOSE
€ 7.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0608
ref: 220A
SCREW-PAN HEAD,6X8
€ 0.50
