TURN SIGNALS
EX250H4 ZZR250 1993 NETHERLANDS IT

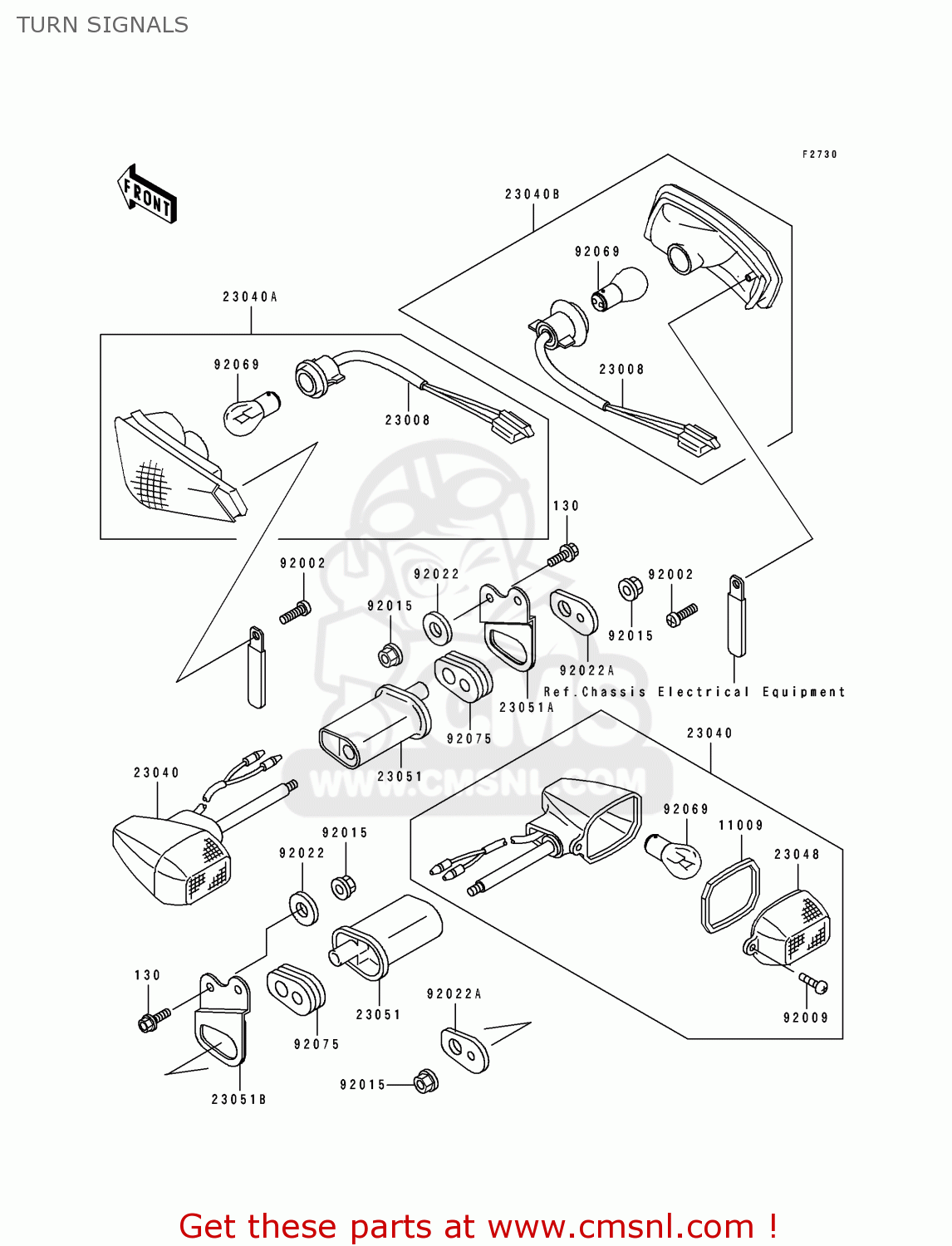

Turn signals diagram EX250H4 ZZR250 1993 NETHERLANDS IT
TURN SIGNALS EX250H4 ZZR250 1993 NETHERLANDS IT
×
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
11009
110091576
ref: 11009
GASKET,SIGNAL LAMP (NAS)
€ 4.50
23008
230081273
ref: 23008
SOCKET-ASSY,SIGNAL LA
€ 16.50
23040
230401143
ref: 23040
LAMP-SIGNAL,RR
€ 38.50
23040A
230401189
ref: 23040A
LAMP-SIGNAL,FR,LH
€ 43.00
23040B
230401190
ref: 23040B
LAMP-SIGNAL,FR,RH
€ 40.50
23048
230481068
ref: 23048
LENS-SIGNAL LAMP
€ 12.00
23051
230511164
ref: 23051
BRACKET-SIGNAL LAMP,F
€ 7.50
23051A
230511211
ref: 23051A
BRACKET-SIGNAL LAMP,R
€ 9.00
23051B
230511212
ref: 23051B
BRACKET-SIGNAL LAMP,R
€ 9.50
92002
920021472
ref: 92002
BOLT,TAPPING,5X16
€ 2.00
92009
920091142
ref: 92009
SCREW,TAPPING,4X12
€ 3.00
92015
920151237
ref: 92015
NUT,FLANGED,6MM,BLACK
€ 3.50
92022
920221346
ref: 92022
WASHER,6.5X20X1.6,BLA
€ 0.50
92022A
920221672
ref: 92022A
WASHER,SIGNAL LAMP
€ 3.50
92069
ref: 92069
92075
920751698
ref: 92075
DAMPER,SIGNAL LAMP
€ 6.00
