GEAR CHANGE DRUM/SHIFT FORK(S)

EX250H4 ZZR250 1993 NETHERLANDS IT

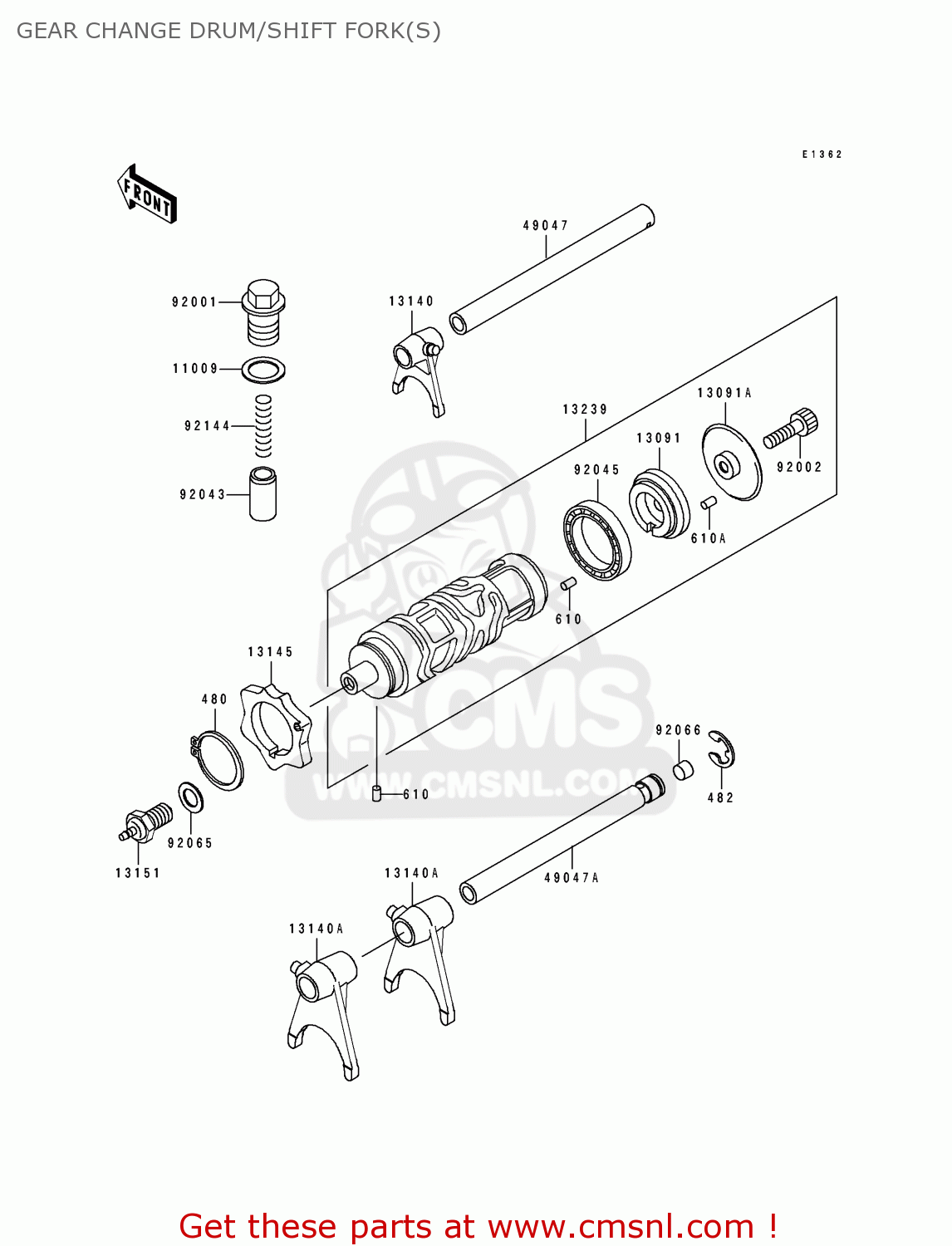

Gear change drum/shift fork(s) diagram EX250H4 ZZR250 1993 NETHERLANDS IT

GEAR CHANGE DRUM/SHIFT FORK(S) EX250H4 ZZR250 1993 NETHERLANDS IT

GEAR CHANGE DRUM/SHIFT FORK(S) EX250H4 ZZR250 1993 NETHERLANDS IT

prices are in EUR

ref

part #

description

quantity

480

480J3000
ref: 480

CIRCLIP-TYPE-C,30MM

€ 3.50

482

482J0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

610

610A0406
ref: 610

ROLLER,4X6

€ 2.50

610A

610A0408
ref: 610A

ROLLER,4X8

€ 2.50

11009

110091008
ref: 11009

GASKET,15.5X22X1 (NAS)

€ 2.50

13091

130911417
ref: 13091

HOLDER

€ 30.00

13091A

130911464
ref: 13091A

HOLDER,CHANGE DRUM

€ 5.50

13140

131401148
ref: 13140

FORK-SHIFT,IN

€ 65.50

13140A

131401149
ref: 13140A

FORK-SHIFT,OUT

€ 65.50

13145

131451058
ref: 13145

CAM-CHANGE DRUM

€ 15.00

13151

131511007
ref: 13151

SWITCH,NEUTRAL

€ 9.00

13239

132391131
ref: 13239

DRUM-ASSY-CHANGE

€ 199.50

49047

490471066
ref: 49047

ROD-SHIFT,IN

€ 18.50

49047A

490471067
ref: 49047A

ROD-SHIFT,OUT

€ 19.50

92001

920011037
ref: 92001

BOLT,NEUTAL POSITION

€ 9.50

92002

920021696
ref: 92002

BOLT,SOCKET,6X25

€ 1.50

92043

92043076
ref: 92043

PIN-NEUTRAL PISTON

€ 8.00

92045

920451152
ref: 92045

BEARING-BALL,6806

€ 47.00

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50

92066

920661246
ref: 92066

PLUG

€ 2.50

92144

921441580
ref: 92144

SPRING

€ 4.00
