FRONT FORK
EX250H4 ZZR250 1993 NETHERLANDS IT

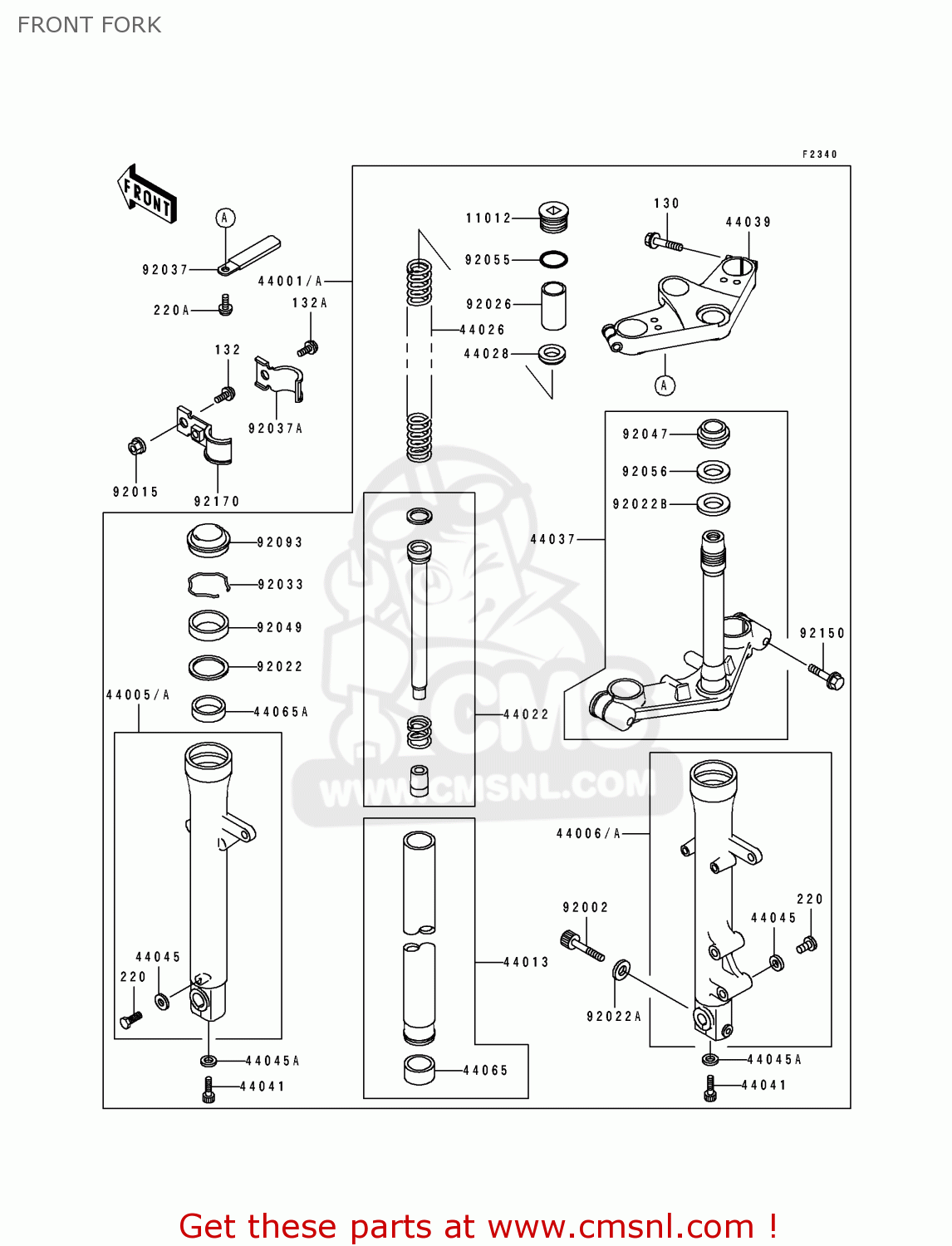

Front fork diagram EX250H4 ZZR250 1993 NETHERLANDS IT
FRONT FORK EX250H4 ZZR250 1993 NETHERLANDS IT
×
prices are in EUR
ref
part #
description
quantity
130
130G0835
ref: 130
BOLT,FLANGED,8X35
€ 1.00
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
11012
110121764
ref: 11012
CAP,FORK TOP
€ 36.50
44001
440011817GD
ref: 44001
FORK-FRONT,G.GRAY
€ 1,453.50
44005
440051304
ref: 44005
PIPE-LEFT FORK OUTER
€ 198.50
44006
440061301
ref: 44006
PIPE-RIGHT FORK OUTER
€ 164.00
44013
440131332
ref: 44013
PIPE-FORK INNER
€ 162.50
44022
440221261
ref: 44022
CYLINDER-FORK
€ 87.00
44026
440261473
ref: 44026
SPRING-FRONT FORK
€ 26.50
44028
440281003
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44037
440371296
ref: 44037
HOLDER-FORK UNDER
€ 297.50
44039
440391202GD
ref: 44039
HOLDER-FORK UPPER,G.G
€ 230.00
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
€ 4.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44045A
44045057
ref: 44045A
GASKET (NAS)
€ 3.00
44065
440651083
ref: 44065
BUSHING-FRONT FORK,IN
€ 17.00
44065A
440651084
ref: 44065A
BUSHING-FRONT FORK
€ 15.00
92002
920021316
ref: 92002
BOLT
€ 3.50
92015
920151237
ref: 92015
NUT,FLANGED,6MM,BLACK
€ 3.50
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
€ 4.50
92022A
920221598
ref: 92022A
WASHER
€ 4.50
92022B
92022231
ref: 92022B
WASHER,PLAIN
€ 3.00
92026
920261288
ref: 92026
SPACER,FORK,L=100
€ 11.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371539
ref: 92037
CLAMP,L=45
€ 3.00
92037A
920371898
ref: 92037A
CLAMP,HOSE
€ 5.50
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
€ 14.50
92049
920491372
ref: 92049
SEAL-OIL,FORK OUTER T
€ 15.00
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
€ 6.00
92093
920931314
ref: 92093
SEAL,FORK OUTER TUBE
€ 16.50
92150
921501438
ref: 92150
BOLT,FLANGED,10X32
€ 9.00
92170
921701200
ref: 92170
CLAMP,HOSE
€ 7.00
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
130
130G0610
ref: 130
BOLT-FLANGED,6X10
€ 0.50
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
180
180D0625
ref: 180
BOLT-UPSET-WS,6X25
€ 2.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0608
ref: 220A
SCREW-PAN HEAD,6X8
€ 0.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
702
702A07680
ref: 702
TUBE-RUBBER
€ 9.50
14025
140251913
ref: 14025
COVER,TANK CAP
€ 13.50
32052
320521254
ref: 32052
BRACKET-TANK,RR
€ 19.50
43049
430491066
ref: 43049
PACKING,TAP VALVE (NAS)
€ 5.00
51003D
510035250JW
ref: 51003D
TANK-COMP-FUEL,M.VIOL
€ 782.50
51003E
510035272H8
ref: 51003E
TANK-COMP-FUEL,EBONY
€ 782.50
51023
510231173
ref: 51023
TAP-ASSY,FUEL
€ 100.00
51049
510491091
ref: 51049
CAP-TANK,FUEL
€ 88.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92002
920021996
ref: 92002
BOLT
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
€ 4.00
92027A
92027251
ref: 92027A
COLLAR,L=13.1
€ 1.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371712
ref: 92037A
CLAMP
€ 3.00
92055
920551112
ref: 92055
RING-/,FUEL TAP PACKI
€ 3.00
92055A
920551419
ref: 92055A
RING-O,TAP LEVER
€ 3.00
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
92075A
92075209
ref: 92075A
DAMPER RUBBER
€ 3.00
92140
921401051
ref: 92140
BALL,STAINLESS,5/32
€ 3.00
92144
921441212
ref: 92144
SPRING,FUEL TAP KNOB
€ 2.50
92160
921601197
ref: 92160
DAMPER
€ 4.50
