OIL PUMP
EX250H4 ZZR250 1993 NETHERLANDS IT

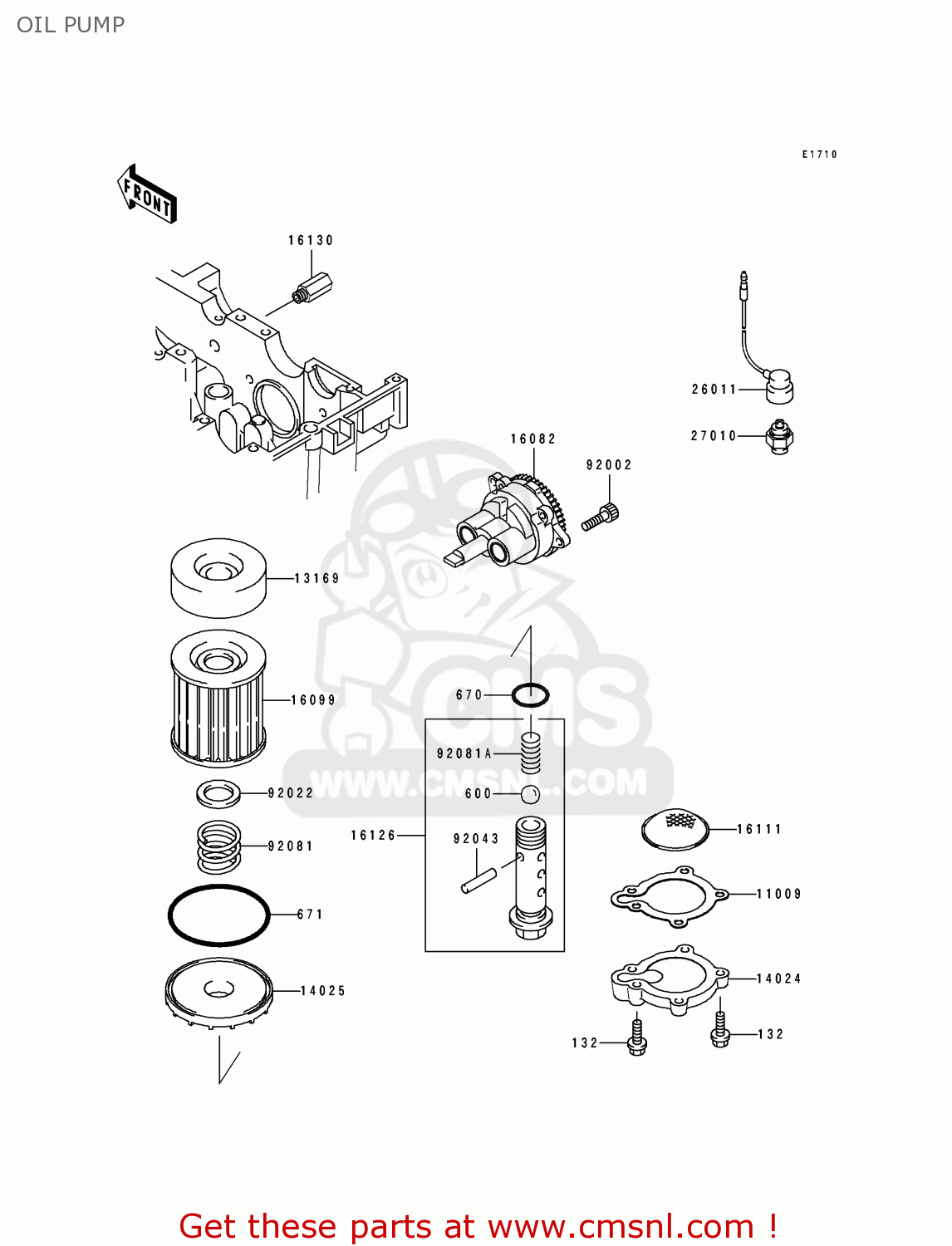

Oil pump diagram EX250H4 ZZR250 1993 NETHERLANDS IT
OIL PUMP EX250H4 ZZR250 1993 NETHERLANDS IT
×
prices are in EUR
ref
part #
description
quantity
132
132J0630
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
670
670B2016
ref: 670
O RING,16MM
€ 1.00
671
671B2590
ref: 671
O RING,90MM
€ 6.50
11009
110091874
ref: 11009
GASKET,OIL FILTER COV (NAS)
€ 4.50
13169
131691313
ref: 13169
PLATE,OIL FILTER
€ 7.00
14024
140241920
ref: 14024
COVER,OIL FILTER
€ 26.50
14025
140251422
ref: 14025
COVER,OIL FILTER,F.BL
€ 31.00
16082
160821078
ref: 16082
PUMP-ASSY-OIL
€ 167.50
16099
16099003
ref: 16099
FILTER,OIL
€ 6.50
16111
16111003
ref: 16111
STRAINER,OIL
€ 10.00
16126
161261108
ref: 16126
VALVE,OIL FILTER
€ 29.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
26011
260111371
ref: 26011
WIRE-LEAD
€ 13.50
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
€ 28.00
92002
920021696
ref: 92002
BOLT,SOCKET,6X25
€ 1.50
92022
920221012
ref: 92022
WASHER,20.5X30X1
€ 3.00
92043
92043111
ref: 92043
SPRING PIN
€ 4.00
92081
920811018
ref: 92081
SPRING,OIL FILTER
€ 3.00
92081A
92081109
ref: 92081A
SPRING
€ 7.50
