CHASSIS ELECTRICAL EQUIPMENT

EX250H4 ZZR250 1993 NETHERLANDS IT

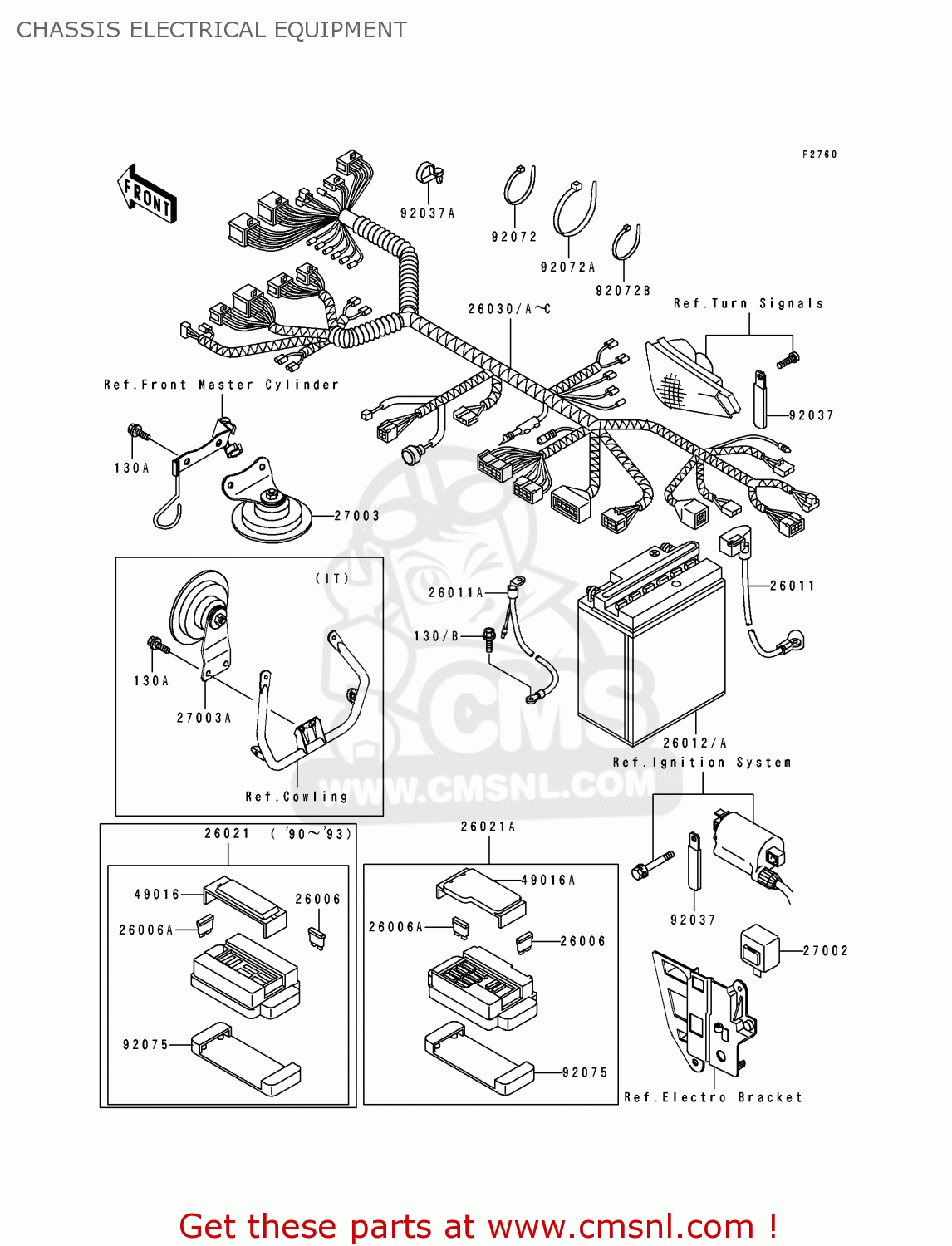

Chassis electrical equipment diagram EX250H4 ZZR250 1993 NETHERLANDS IT

CHASSIS ELECTRICAL EQUIPMENT EX250H4 ZZR250 1993 NETHERLANDS IT
CHASSIS ELECTRICAL EQUIPMENT EX250H4 ZZR250 1993 NETHERLANDS IT
CHASSIS ELECTRICAL EQUIPMENT EX250H4 ZZR250 1993 NETHERLANDS IT
prices are in EUR
ref
part #
description
quantity
130
130B0612
ref: 130
BOLT-FLANGED,6X12
€ 0.50
130A
130H0610
ref: 130A
NL
BOLT-FLANGED,6X10
€ 0.50
130A
130H0610
ref: 130A
IT
BOLT-FLANGED,6X10
€ 0.50
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111189
ref: 26011
WIRE-LEAD,BATTERY GRO
€ 21.50
26011A
260111352
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 19.00
26012
260121205
ref: 26012
BATTERY,12V 8AH,FB9L-
€ 60.00
26021
260211081
ref: 26021
JUNCTION, BOX
€ 106.50
26030
260301041
ref: 26030
NL
HARNESS,MAIN
260301041
€ 185.50
26030A
260301218
ref: 26030A
IT
HARNESS,MAIN
€ 198.50
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27003
270031285
ref: 27003
HORN
€ 58.50
27003A
270031355
ref: 27003A
IT
HORN
€ 61.50
49016
490161124
ref: 49016
COVER-SEAL,FUSE
490161124
€ 6.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
920371163
€ 4.50
92072
920721195
ref: 92072
NL
BAND,L=185
920721195
€ 1.00
92072
920721195
ref: 92072
IT
BAND,L=185
920721195
€ 1.00
92072A
920721237
ref: 92072A
BAND,L=250
920721237
€ 2.00
92072B
920721250
ref: 92072B
BAND
€ 3.50
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
