MUFFLER(S)

EX250H4 ZZR250 1993 NETHERLANDS IT

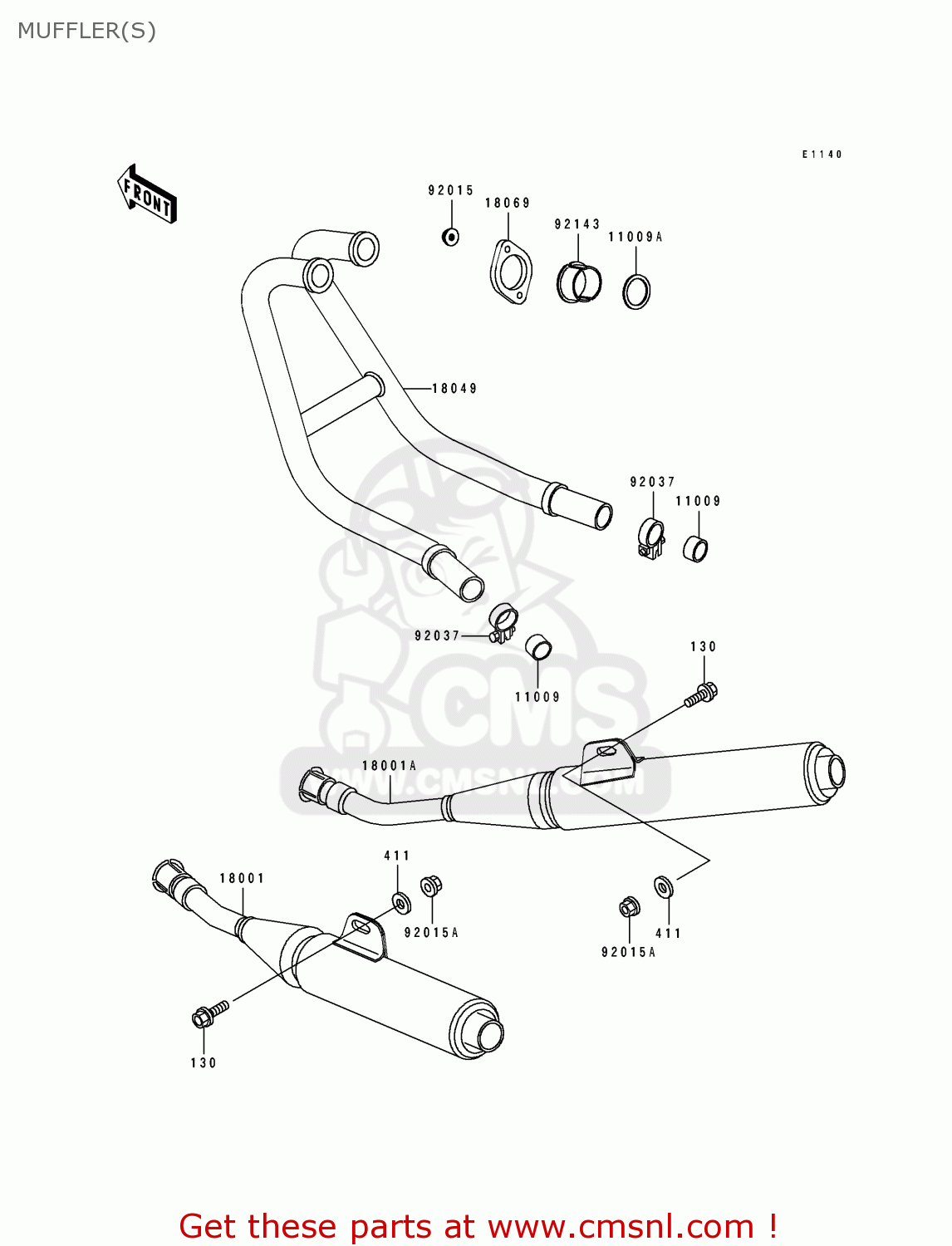

Muffler(s) diagram EX250H4 ZZR250 1993 NETHERLANDS IT

prices are in EUR

ref

part #

description

quantity

130

130G1016
ref: 130

BOLT-FLANGED,10X16

€ 3.00

411

411B1000
ref: 411

WASHER-PLAIN,10MM

€ 0.50

11009

110091865
ref: 11009

GASKET,MUFFLER CONNEC (NAS)

€ 19.50

11009A

110091866
ref: 11009A

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

18001

180011789
ref: 18001

MUFFLER,LH

€ 326.50

18001A

180011790
ref: 18001A

MUFFLER,RH

€ 326.50

18049

180491431
ref: 18049

PIPE-EXHAUST

€ 130.00

18069

180691075
ref: 18069

HOLDER-EXHAUST PIPE

€ 15.00

92015

920151365
ref: 92015

NUT,6MM

€ 3.00

92015A

920151387
ref: 92015A

NUT,FLANGED,10MM

€ 2.50

92037

920371792
ref: 92037

CLAMP,39.5MM

€ 10.00

92143

921431006
ref: 92143

COLLAR,EXHAUST PIPE

€ 4.50
