HEADLIGHT(S)
EX250H4 ZZR250 1993 NETHERLANDS IT

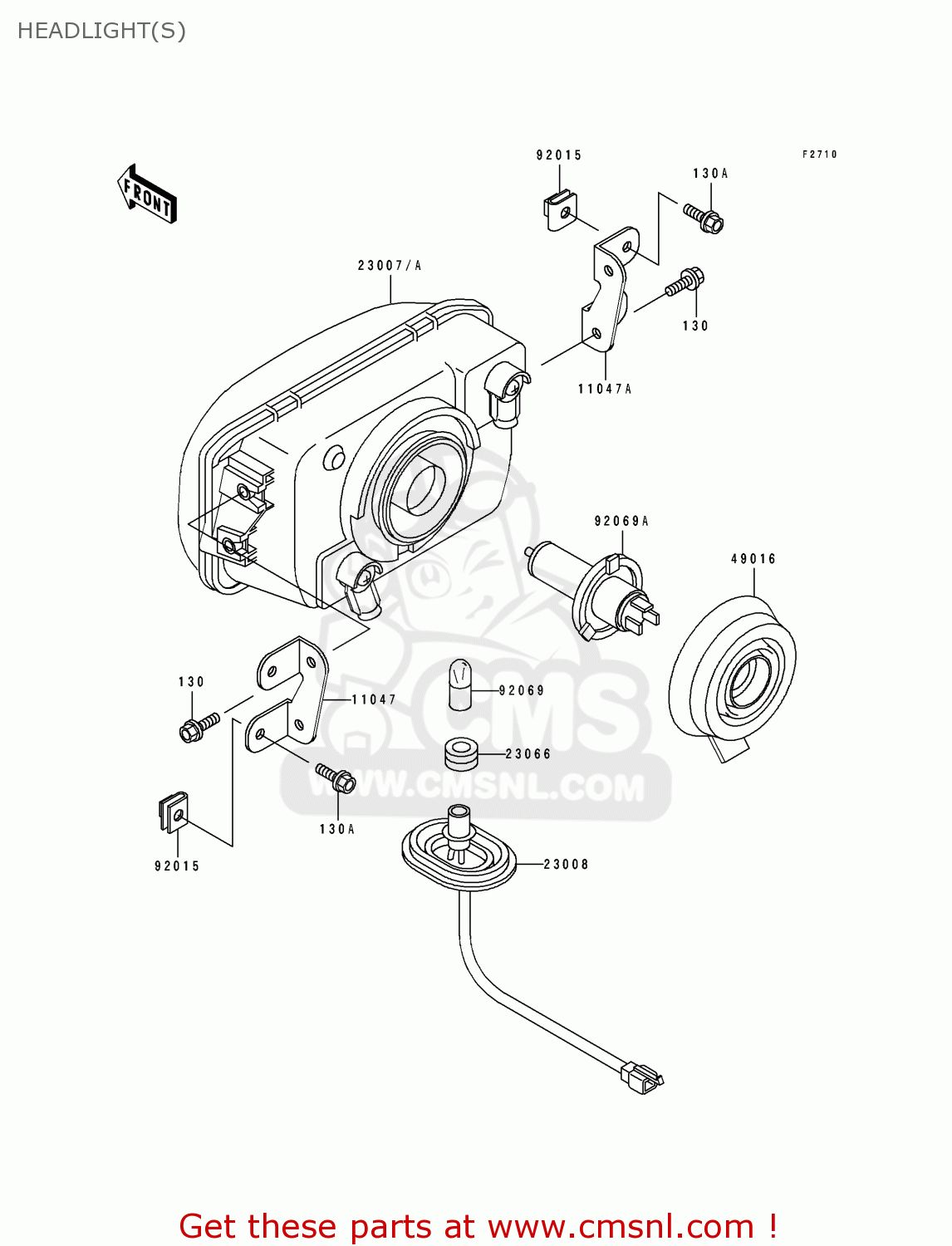

Headlight(s) diagram EX250H4 ZZR250 1993 NETHERLANDS IT
HEADLIGHT(S) EX250H4 ZZR250 1993 NETHERLANDS IT
×
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
€ 1.50
11047
110471024
ref: 11047
BRACKET,HEAD LAMP,LH
€ 7.50
11047A
110471025
ref: 11047A
BRACKET,HEAD LAMP,RH
€ 6.50
23007A
230071248
ref: 23007A
LENS-COMP,HEAD LAMP
€ 166.00
23008
230081268
ref: 23008
SOCKET-ASSY,HEAD LAMP
€ 15.50
23066
23066008
ref: 23066
DAMPER,PARKING LAMP
€ 3.00
49016
490161108
ref: 49016
COVER-SEAL,HEAD LAMP
€ 11.00
92015
920151094
ref: 92015
NUT,MUFFLER
€ 5.50
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
