FOOTRESTS
EX250H4 ZZR250 1993 NETHERLANDS IT

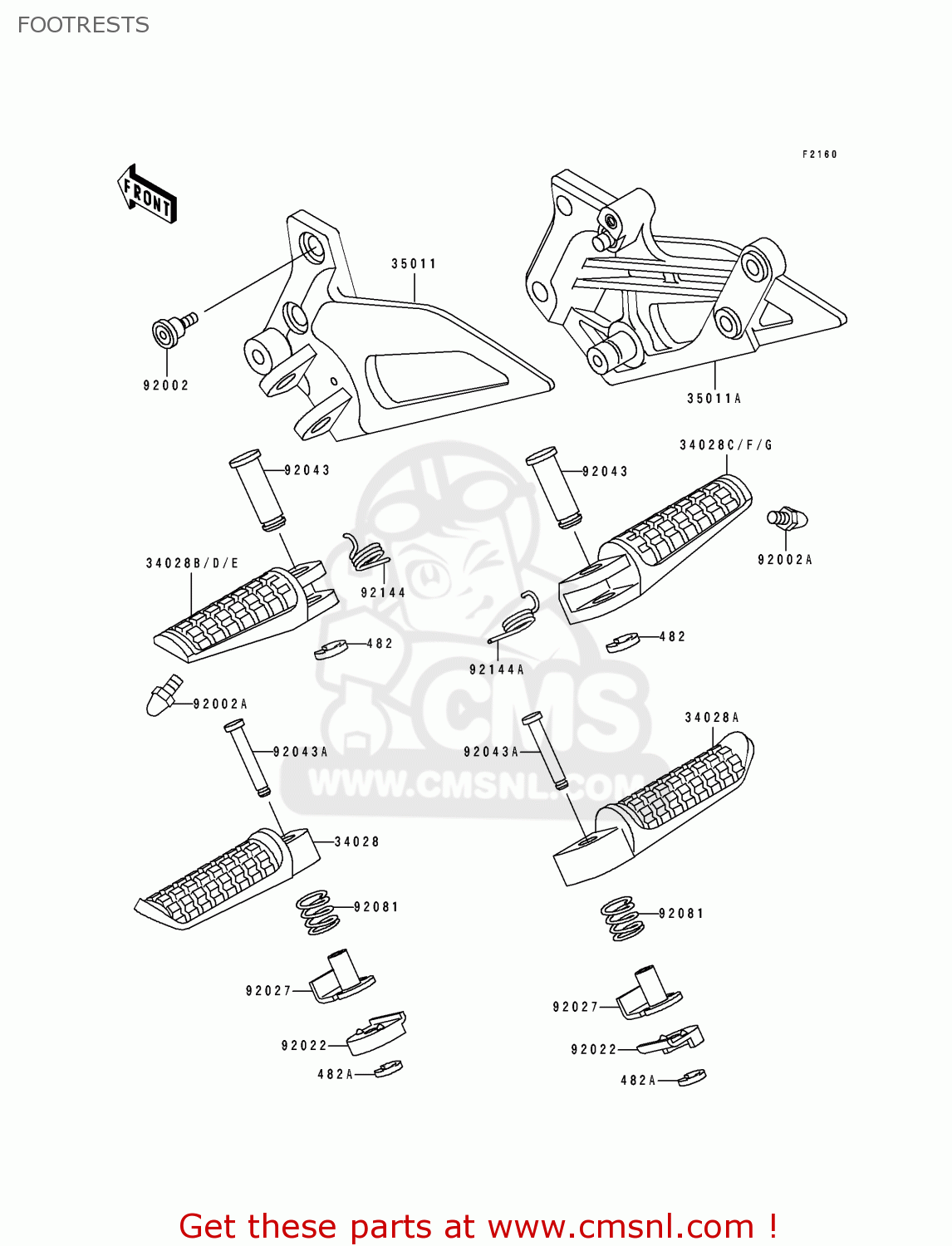

Footrests diagram EX250H4 ZZR250 1993 NETHERLANDS IT
FOOTRESTS EX250H4 ZZR250 1993 NETHERLANDS IT
×
prices are in EUR
ref
part #
description
quantity
482
482L0100
ref: 482
CIRCLIP-TYPE-E,10MM
€ 0.50
482A
482L5000
ref: 482A
CIRCLIP-TYPE-E,5MM
€ 1.00
34028
340281191
ref: 34028
STEP,RR,LH
€ 65.00
34028A
340281192
ref: 34028A
STEP,RR,RH
€ 65.00
34028D
340281338
ref: 34028D
STEP,FR,LH
€ 46.50
34028F
340281339
ref: 34028F
STEP,FR,RH
€ 73.00
35011
350111525GD
ref: 35011
STAY,FR,LH,G.GRAY
€ 164.00
35011A
350111526GD
ref: 35011A
STAY,FR,RH,G.GRAY
€ 164.00
92002
920021493
ref: 92002
BOLT,SOCKET,8X20
€ 1.50
92002A
920021995
ref: 92002A
BOLT,BANK SENSOR
€ 9.50
92022
920221661
ref: 92022
WASHER,STOPPER
€ 4.50
92027
920271732
ref: 92027
COLLAR,STEP
€ 7.00
92043
920431145
ref: 92043
PIN,12X42.5
€ 6.00
92043A
920431271
ref: 92043A
PIN,6X34
€ 3.50
92081
920811612
ref: 92081
SPRING,STEP,RR
€ 2.50
92144
921441567
ref: 92144
SPRING,STEP RETURN,LH
€ 4.00
92144A
921441568
ref: 92144A
SPRING,STEP RETURN,RH
€ 4.00
