CRANKSHAFT
EX250H4 ZZR250 1993 NETHERLANDS IT

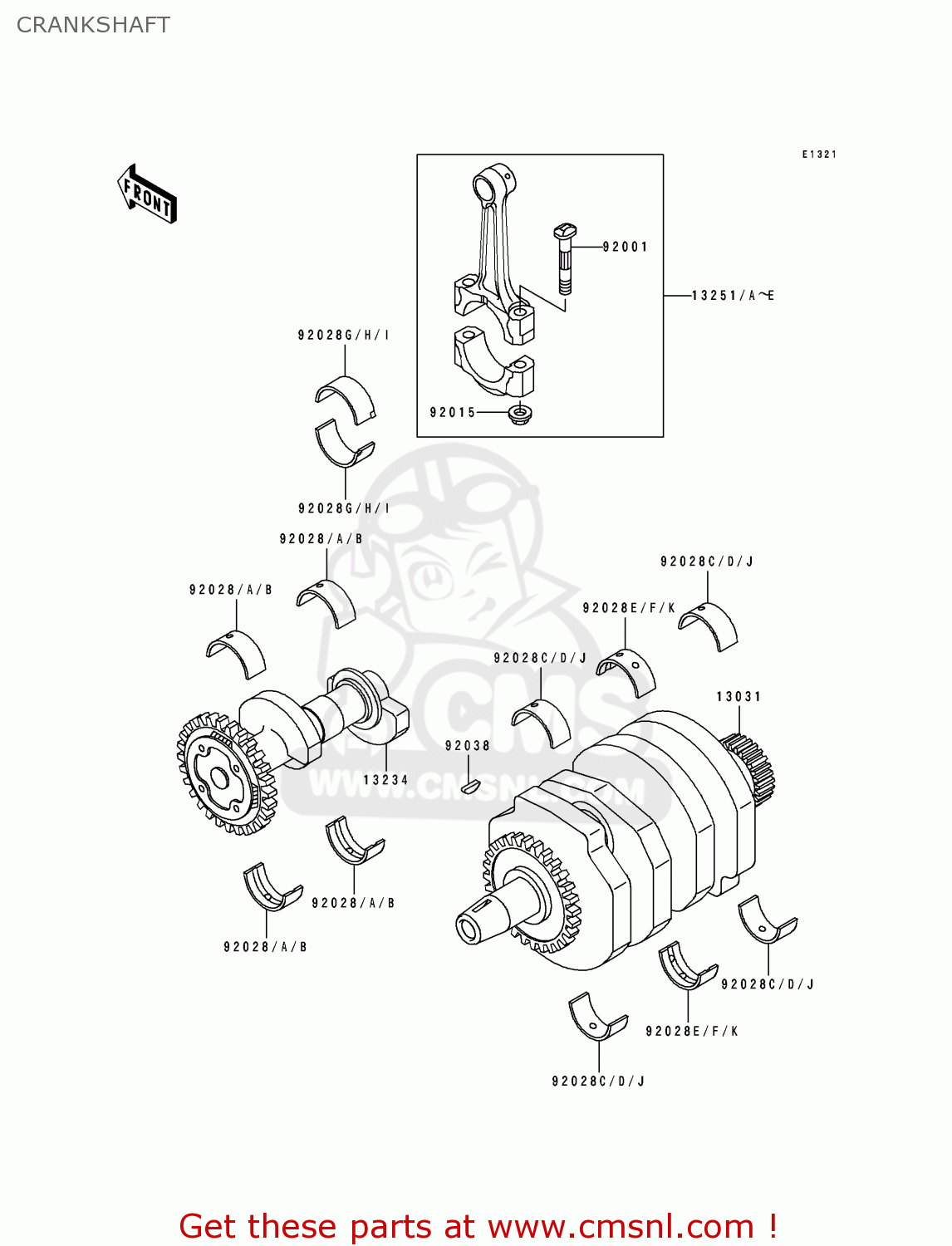

Crankshaft diagram EX250H4 ZZR250 1993 NETHERLANDS IT
CRANKSHAFT EX250H4 ZZR250 1993 NETHERLANDS IT
×
prices are in EUR
ref
part #
description
quantity
13031
130311247
ref: 13031
CRANKSHAFT-COMP
€ 777.00
13234
132341098
ref: 13234
SHAFT-COMP,BALANCER
€ 474.00
13251
132511083FF
ref: 13251
ROD-ASSY-CONNECTING,F
€ 139.50
13251A
132511083GG
ref: 13251A
ROD-ASSY-CONNECTING,G
€ 139.50
13251B
132511083HH
ref: 13251B
ROD-ASSY-CONNECTING,H
€ 116.00
13251C
132511083II
ref: 13251C
ROD-ASSY-CONNECTING,I
€ 139.50
13251D
132511083JJ
ref: 13251D
ROD-ASSY-CONNECTING,J
€ 139.50
13251E
132511083KK
ref: 13251E
ROD-ASSY-CONNECTING,K
€ 139.50
92001
920011793
ref: 92001
BOLT, CONNECTING ROD
€ 5.50
92015
920151527
ref: 92015
NUT,CONNECTING ROD,8M
€ 3.50
92028
920281422
ref: 92028
BUSHING,BALANCER,BLUE
€ 12.50
92028A
920281423
ref: 92028A
BUSHING,BALANCER,BLAC
€ 12.50
92028B
920281424
ref: 92028B
BUSHING,BALANCER,BROW
€ 12.50
92028C
920281486
ref: 92028C
BUSHING,CRANKSHAFT,BL
€ 13.00
92028D
920281487
ref: 92028D
BUSHING,CRANKSHAFT,BL
€ 13.00
92028E
920281489
ref: 92028E
BUSHING,CRANKSHAFT,BL
€ 13.00
92028F
920281490
ref: 92028F
BUSHING,CRANKSHAFT,BL
€ 13.00
92028G
920281492
ref: 92028G
BUSHING,CONNECTING RO
€ 13.00
92028H
920281493
ref: 92028H
BUSHING,CONNECTING RO
€ 13.00
92028I
920281494
ref: 92028I
BUSHING,CONNECTING RO
€ 13.00
92028J
920281582
ref: 92028J
BUSHING,CRANKSHAFT,YE
€ 13.00
92028K
920281586
ref: 92028K
BUSHING,CRANKSHAFT,YE
€ 13.00
92038
92038001
ref: 92038
WOODRUFF KEY
€ 3.00
