ELECTRO BRACKET
EX250H4 ZZR250 1993 NETHERLANDS IT

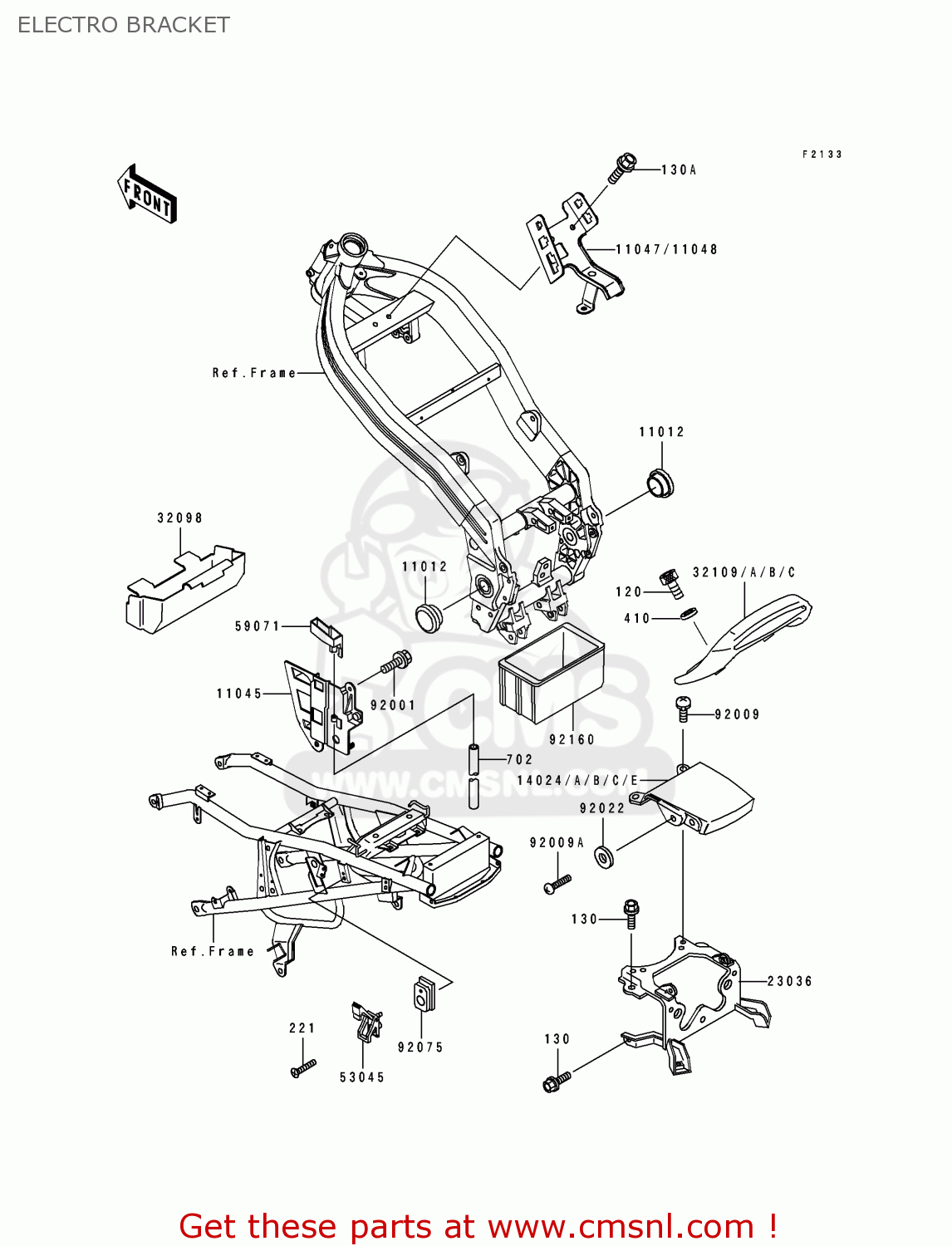

Electro bracket diagram EX250H4 ZZR250 1993 NETHERLANDS IT
ELECTRO BRACKET EX250H4 ZZR250 1993 NETHERLANDS IT
×
prices are in EUR
ref
part #
description
quantity
120
120P0820
ref: 120
BOLT-SOCKET
€ 2.50
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
130A
130C0614
ref: 130A
BOLT-FLANGED,6X14
€ 1.50
221
221E0620
ref: 221
SCREW-CSK-CROS,6X20
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
702
702A05350
ref: 702
TUBE-RUBBER,5X350
€ 50.00
11012
110121459
ref: 11012
CAP,SWING ARM BRACKET
€ 7.00
11045
110451578
ref: 11045
BRACKET,ELECTRIC
€ 16.00
11047
110471126
ref: 11047
BRACKET,THERMOSTAT
€ 13.00
14024
140241906GW
ref: 14024
COVER,TAIL,M.S.BLUE
€ 68.00
14024C
140241906JZ
ref: 14024C
COVER,TAIL,M.EVENTIDE
€ 52.50
23036
230361121
ref: 23036
BRACKET-TAIL LAMP
€ 63.00
32098
320981091
ref: 32098
CASE-TOOL
€ 22.00
32109A
321091211H8
ref: 32109A
GRIP-FRAME,EBONY
€ 169.00
32109B
321091211JW
ref: 32109B
GRIP-FRAME,M.VIOLET R
€ 122.00
53045
530451051
ref: 53045
HOOK-ASSY,ROPE
€ 28.00
59071
590711139
ref: 59071
JOINT,BATTERY VENT HO
€ 4.50
92001
920011847
ref: 92001
BOLT,6X14,BLACK
€ 2.50
92009
920091662
ref: 92009
SCREW
€ 2.50
92009A
920091663
ref: 92009A
SCREW
€ 2.50
92022
920221143
ref: 92022
WASHER,6.5X16X1
€ 2.50
92075
920751726
ref: 92075
DAMPER,ROPE HOOK
€ 3.50
