COWLING(EX250-H3/H4)
EX250H4 ZZR250 1993 NETHERLANDS IT

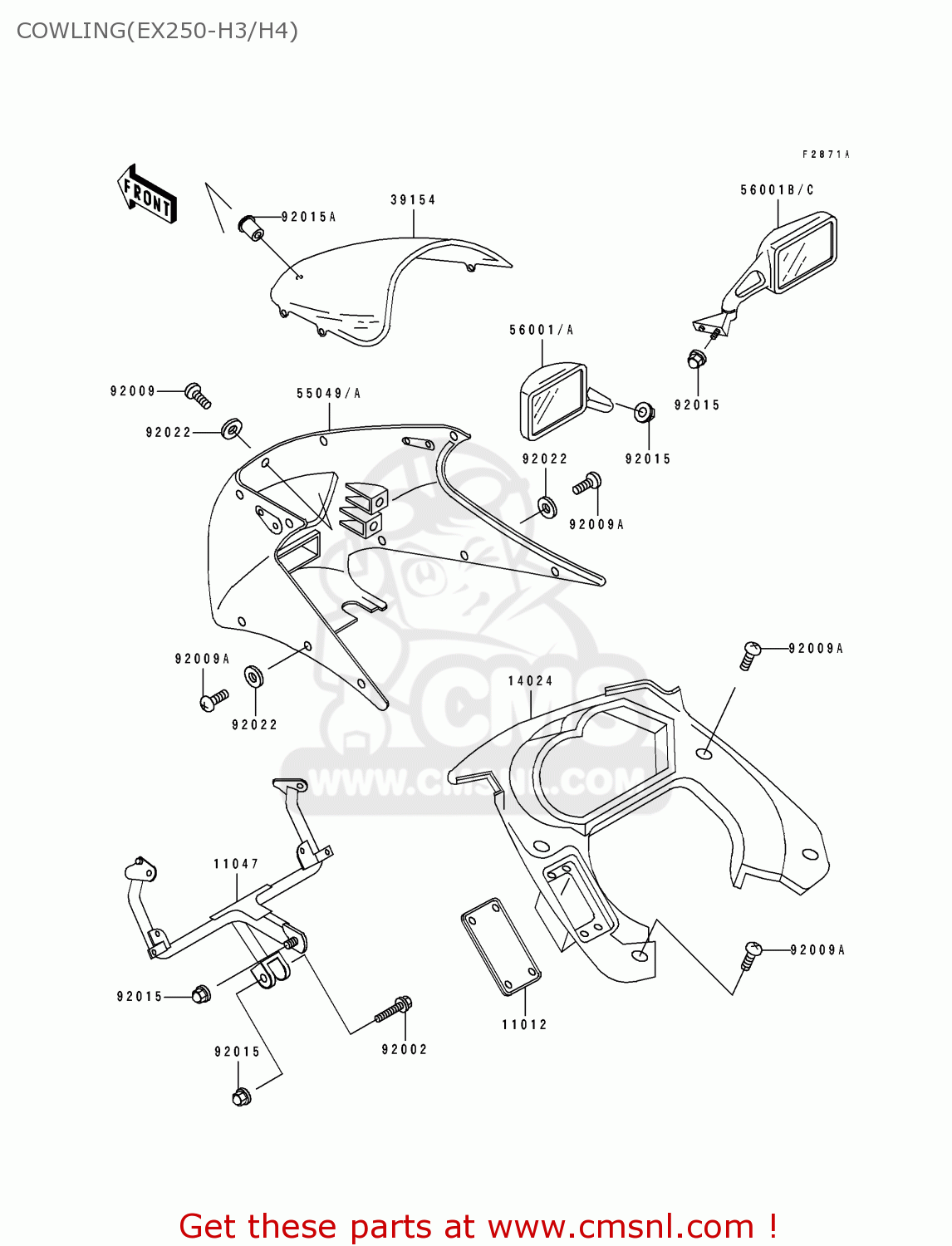

Cowling(ex250-h3/h4) diagram EX250H4 ZZR250 1993 NETHERLANDS IT
COWLING(EX250-H3/H4) EX250H4 ZZR250 1993 NETHERLANDS IT
×
prices are in EUR
ref
part #
description
quantity
11012
110121570
ref: 11012
CAP,INNER COWLING COV
€ 13.50
11047
110471035
ref: 11047
BRACKET,UPP COWLING
€ 259.50
14024
140241961
ref: 14024
COVER,COWLING,INNER
€ 172.00
39154
391541114
ref: 39154
WINDSHIELD
€ 170.50
55049
550495008H8
ref: 55049
COWLING.,UPP,EBONY
€ 523.00
55049A
550495011JW
ref: 55049A
COWLING.,UPP,M.VIOLET
€ 472.00
56001
560011405JW
ref: 56001
MIRROR-ASSY,LH,VIOLET
€ 88.50
56001A
5600114056C
ref: 56001A
MIRROR-ASSY,LH,EBONY
€ 106.00
56001B
560011406JW
ref: 56001B
MIRROR-ASSY,RH,VIOLET
€ 88.50
56001C
5600114066C
ref: 56001C
MIRROR-ASSY,RH,EBONY
€ 106.00
92002
920021532
ref: 92002
BOLT,FLANGED,8X30
€ 2.50
92009
920091654
ref: 92009
SCREW
€ 0.50
92009A
920091660
ref: 92009A
SCREW
€ 3.00
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
€ 3.00
92015A
920151757A
ref: 92015A
NUT,5MM
€ 5.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
