Genuine EX Kawasaki Parts delivered quickly!


CARBURETOR PARTS

EX250H4 ZZR250 1993 NETHERLANDS IT

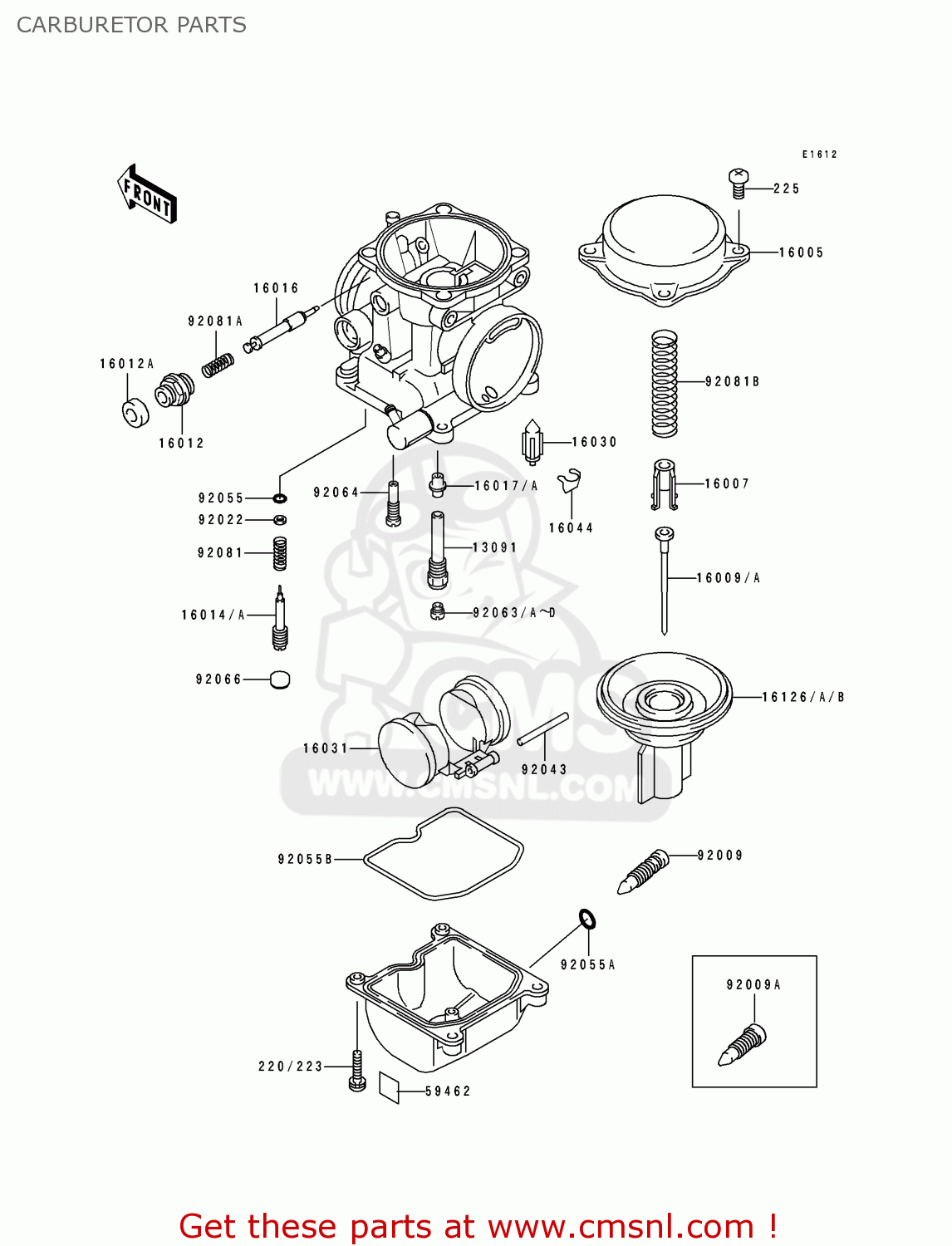

Carburetor parts diagram EX250H4 ZZR250 1993 NETHERLANDS IT

CARBURETOR PARTS EX250H4 ZZR250 1993 NETHERLANDS IT
CARBURETOR PARTS EX250H4 ZZR250 1993 NETHERLANDS IT
CARBURETOR PARTS EX250H4 ZZR250 1993 NETHERLANDS IT
prices are in EUR
ref
part #
description
quantity
13091
130911713
ref: 13091
HOLDER,NEEDLE JET
130911713
€ 20.00
16005
160051056
ref: 16005
TOP-CHAMBER,MIXING
160051056
€ 48.50
16007
160071120
ref: 16007
SEAT-SPRING
160071120
€ 16.50
16009
160091461
ref: 16009
NEEDLE-JET,N16I
160091461
€ 26.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014A
160141054
ref: 16014A
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16017
160171208
ref: 16017
JET-NEEDLE,#6
€ 37.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126A
161261198
ref: 16126A
VALVE,VACUUM
161261198
€ 176.00
92009A
920091551
ref: 92009A
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
220
220D0414
ref: 220
SCREW-PAN-CROS
220D0414
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631009
ref: 92063
JET-MAIN,#105
920631009
€ 10.00
92063A
920631114
ref: 92063A
JET-MAIN,#110
920631114
€ 9.50
92063B
920631115
ref: 92063B
JET-MAIN,#102
920631115
€ 10.00
92063C
920631116
ref: 92063C
JET-MAIN,#108
920631116
€ 9.50
92063D
920631117
ref: 92063D
JET-MAIN,#112
920631117
€ 9.50
92064
920641050
ref: 92064
JET-PILOT,#38
920641050
€ 12.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081B
920811925
ref: 92081B
SPRING,VACUUM VALVE
920811925
€ 16.00
