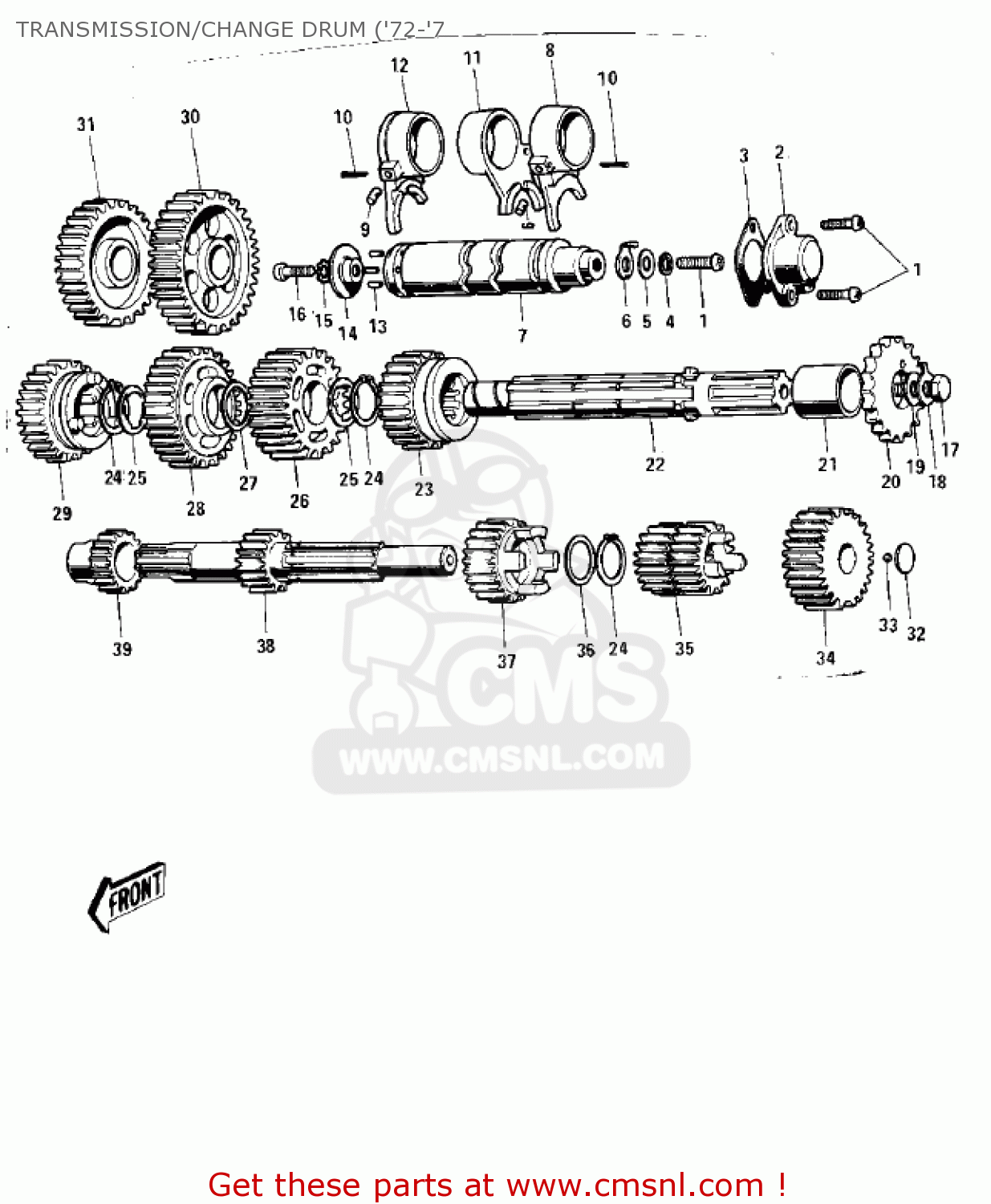

TRANSMISSION/CHANGE DRUM ('72-'7

ref

part #

description

quantity

1

220B0616
ref: 1

SCREW-PAN HEAD,6X16

€ 2.50

2

131511001
ref: 2

SWITCH-COMP,NEUTRAL

€ 9.50

3

13146002
ref: 3

GASKET,NEUTRAL SWITCH (NAS)

€ 2.50

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

410B0600
ref: 5

WASHER-PLAIN-SMALL,6M

€ 0.50

6

210071003
ref: 6

ROTOR,TOP & NEUTRAL

€ 4.50

?

13239005
ref: ?
Includes item 7 and

DRUM ASSY-GEAR CHANGE

€ 165.00

7

13239005
ref: 7

DRUM ASSY-GEAR CHANGE

€ 165.00

8

13140009
ref: 8

FORK-SELECTOR,3RD

€ 46.50

9

92043005
ref: 9

PIN,DOWEL,8X15

€ 4.50

10

550D3020
ref: 10

PIN-COTTER,3.0X20

€ 2.00

11

13140017
ref: 11

FORK-SELECTOR,4TH-TOP

€ 120.00

12

13140010
ref: 12

FORK-SHIFT,LOW&2ND

€ 81.50

13

92042014
ref: 13

PIN-GEAR CHANGE DRUM

€ 0.50

14

13142008
ref: 14

PLATE-CHANGE DRUM PIN

€ 4.00

15

464H0600
ref: 15

WASHER-LOCK,6MM

€ 0.50

16

220B0612
ref: 16

SCREW-PAN HEAD,6X12

€ 1.00

17

115G0816
ref: 17

BOLT-HEX,HEAD 8X16

€ 0.50

18

92030007
ref: 18

WASHER-LOCK,8MM

€ 1.00

19

92022130
ref: 19

WASHER-ENG SPROCKET

€ 2.00

20

13249003
ref: 20
STD

ENG SPROCKET,ASY,15T

€ 35.50

20

13249001
ref: 20
OPTION

ENG SPROCKET ASY,13T

€ 43.00

21

92027009
ref: 21
E/NO.27432 & BELOW

SPACER-ENG SPROCKET

€ 12.50

21

92027179
ref: 21
E/NO.27433 & ABOVE

COLLAR,ENG SPROCKET

€ 12.50

22

13128021
ref: 22

SHAFT-OUTPUT

€ 160.50

23

13137012
ref: 23
23T

TOP GEAR-OUTPUT SHAFT

€ 28.50

24

92033014
ref: 24

RING-SNAP,16MM

€ 3.50

25

92024030
ref: 25

WASHER,TOOTHED,18.5X2

€ 4.00

26

13133005
ref: 26
26T

GEAR,OUTPUT 3RD,26T

€ 46.50

27

92022146
ref: 27
T=1.6 M/M

WASHER,THRUST,18.5X23

€ 4.50

28

13131008
ref: 28
30T

GEAR,OUTPUT 2ND,30T

€ 40.50

29

131291708
ref: 29
24T

GEAR,OUTPUT 4TH,24T

€ 70.00

30

13129010
ref: 30
35T

GEAR,OUTPUT LOW,35T

€ 66.50

31

13073004
ref: 31

GEAR-SPUR,KICKSTARTER

€ 55.50

32

92022115
ref: 32

WASHER,THRUST

€ 2.50

33

600A0700
ref: 33

BALL-STEEL,7/32

€ 2.50

34

131291927
ref: 34
24T

GEAR, INPUT TOP 24T

€ 25.00

35

131291052
ref: 35
2ND 17T 3RD 20T

GEAR,INPUT 2ND&3RD,17

€ 55.00

36

92022118
ref: 36
T=1.2M/M

WASHER,18.5X23X1.2

€ 3.00

37

131291053
ref: 37
22T

GEAR,INPUT 4TH,16T

€ 23.50

38

13127032
ref: 38
12T

SHAFT,DRIVE

€ 76.00

39

13075004
ref: 39
16T

GEAR-SPUR,KICKSTARTER

€ 40.50
