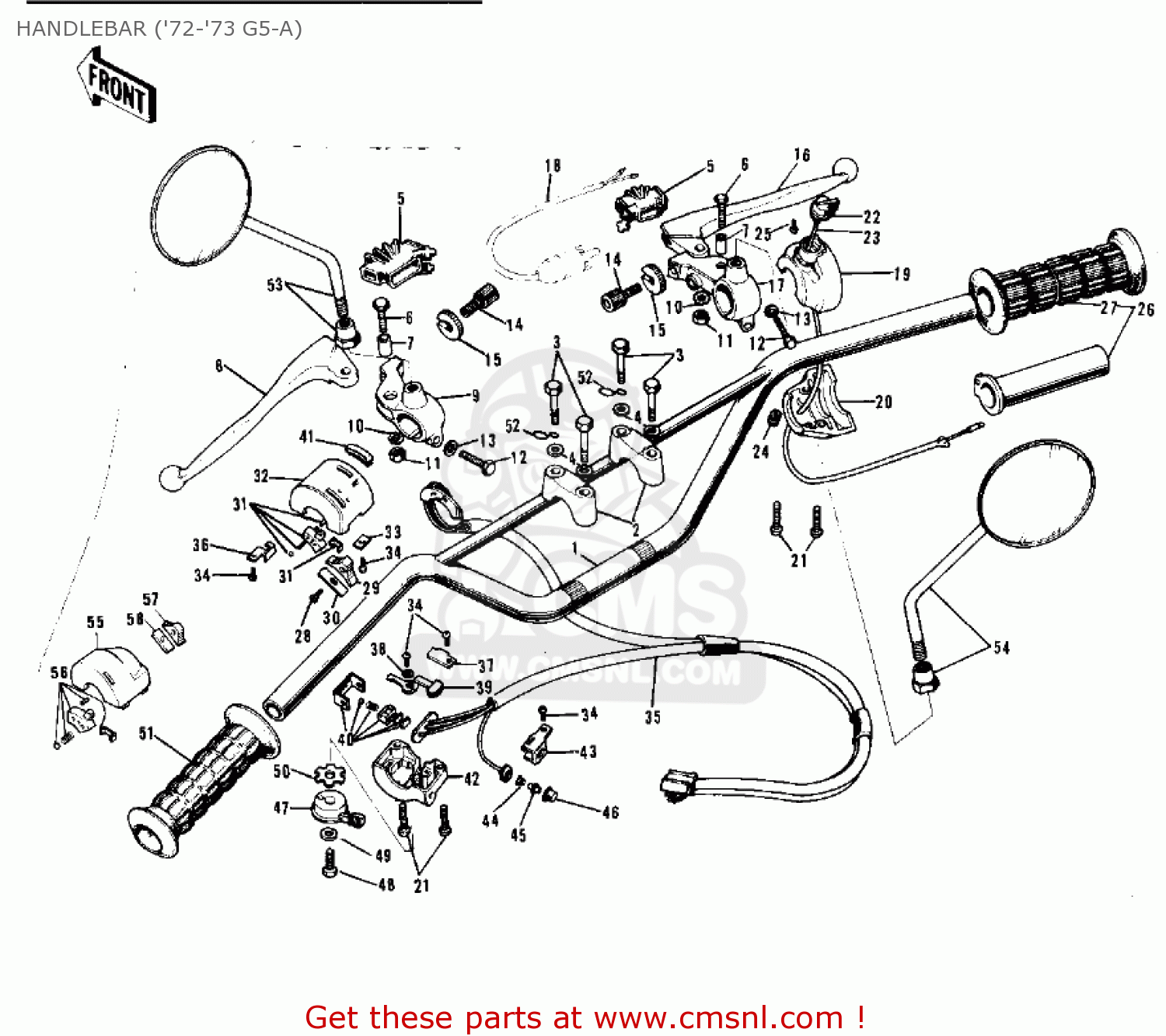

HANDLEBAR ('72-'73 G5-A)

ref

part #

description

quantity

1

46004018
ref: 1

HANDLEBAR

€ 79.50

2

46012008
ref: 2

HOLDER-HANDLE,UPP

€ 23.00

3

920011405
ref: 3

BOLT,8X38

€ 10.00

4

461F0800
ref: 4

WASHER-SPRING,8MM

€ 0.50

5

46071002
ref: 5

DUST COVER

€ 12.50

6

92007020
ref: 6

BOLT-HEX HEAD,5X20

€ 2.50

7

46059011
ref: 7

COLLAR,LEVER

€ 3.50

8

46092015
ref: 8

LEVER-GRIP,CLUTCH

€ 11.50

9

4609401121
ref: 9

HOLDER-CLUTCH LEV,BLK

€ 23.00

10

464H0500
ref: 10

WASHER-LOCK,5MM

€ 0.50

11

312B0500
ref: 11

NUT-HEX,5MM

€ 0.50

12

110N0625
ref: 12

BOLT-HEX HEAD,6X25

€ 3.50

13

410B0600
ref: 13

WASHER-PLAIN-SMALL,6M

€ 0.50

14

46055010
ref: 14

SCREW,CABLE ADJUST

€ 21.00

15

46056005
ref: 15

NUT-LOCK

€ 6.00

16

46058004
ref: 16

LEVER-GRIP,FRONT BRAK

€ 24.00

17

4606000921
ref: 17

HOLDER,BRAKE LEVER,FR

€ 27.00

18

27021004
ref: 18

SWITCH,FR BRAKE LAMP

€ 23.00

?

4601802010
ref: ?
Includes items 19 -

CASE ASSY,R.H.

€ 59.50

19

46041008
ref: 19

CASE-R.H UPPER

€ 23.50

20

46023008
ref: 20

CASE-R.H LOWER

€ 17.50

21

220B0525A
ref: 21

SCREW-PAN HEAD,5X25

€ 2.50

22

46027008
ref: 22

SWITCH-ENGINE STOP

€ 15.50

23

46082021
ref: 23

WIRING HARNESS-STP SW

€ 2.00

24

92071060
ref: 24

GROMMET-WIRING HARNES

€ 0.50

25

220B0305A
ref: 25

SCREW-PAN HEAD,3X5

€ 1.00

?

46019020
ref: ?
Includes items 26 an

GRIP ASSY-THROTTLE

€ 14.00

27

46061013
ref: 27

RUBBER-R.H GRIP

€ 9.50

?

46091007
ref: ?
Includes items 21 an

CASE ASSY-L.H

€ 40.00

28

221B0308A
ref: 28

SCREW-CNTSNK HD,3X8

€ 2.50

29

46044009
ref: 29

KNOB-L.H SWITCH

€ 3.00

30

46031006
ref: 30

SPRING-L.H SW KNOB,B

€ 3.50

31

46089008
ref: 31

SWITCH-L.H

€ 8.00

32

46086015
ref: 32

CASE,UPPER,LH

€ 31.50

33

46085019
ref: 33

HOLDER-L.H SW UPPER,B

€ 0.50

34

220B0305A
ref: 34

SCREW-PAN HEAD,3X5

€ 1.00

35

46082020
ref: 35

WIRING HARNESS-L.H SW

€ 18.50

36

46085020
ref: 36

HOLDER-L.H SW UPPER,A

€ 1.50

37

46085016
ref: 37

HOLDER-L.H SW LOWER,A

€ 2.00

38

92095010
ref: 38

WASHER

€ 2.50

39

46044010
ref: 39

KNOB-SWITCH

€ 6.00

40

46089007
ref: 40

SLIDE BLOCK AY-L.H SW

€ 10.00

41

46089009
ref: 41

CAP-L.H SWITCH

€ 1.50

42

46077017
ref: 42

CASE-L.H LOWER

€ 7.50

43

46085017
ref: 43

HOLDER-L.H SW LOWER,B

€ 1.00

44

270101009
ref: 44

SWITCH ASSY,HORN BUTN

€ 5.50

45

270101009
ref: 45

SWITCH ASSY,HORN BUTN

€ 5.50

46

270101009
ref: 46

SWITCH ASSY,HORN BUTN

€ 5.50

47

4609600810
ref: 47

LEVER,STARTER,BLACK

€ 17.00

48

110B0608
ref: 48

BOLT-HEX HEAD,6X8

€ 0.50

48

112B0608
ref: 48

BOLT-HEX,HEAD,6X8

€ 0.50

49

410B0600
ref: 49

WASHER-PLAIN-SMALL,6M

€ 0.50

50

92095012
ref: 50

WASHER-LOCK

€ 3.50

51

46075018
ref: 51

RUBBER-L.H GRIP

€ 10.00

52

92037075
ref: 52

CLAMP-CABLE

€ 1.50

53

56003009
ref: 53

MIRROR-ASSY,LH

€ 50.00

54

56002020
ref: 54
OPTION

MIRROR-ASSY,RH

€ 47.50

?

46091019
ref: ?
Includes items 21 an

CASE ASSY,L.H

€ 40.00

55

4608601621
ref: 55
G5-A

CASE-L.H UPPER,BLACK

€ 12.50

56

46089012
ref: 56
G5-A

SWITCH ASSY,L.H

€ 8.00

57

46044011
ref: 57
G5-A

KNOB-L.H SWITCH

€ 6.00

58

46031003
ref: 58
G5-A

SPRING-L.H SW KNOB

€ 1.50

all assemblies
