OIL PUMP ('74-'75 B/C)
G5B 1974 CANADA

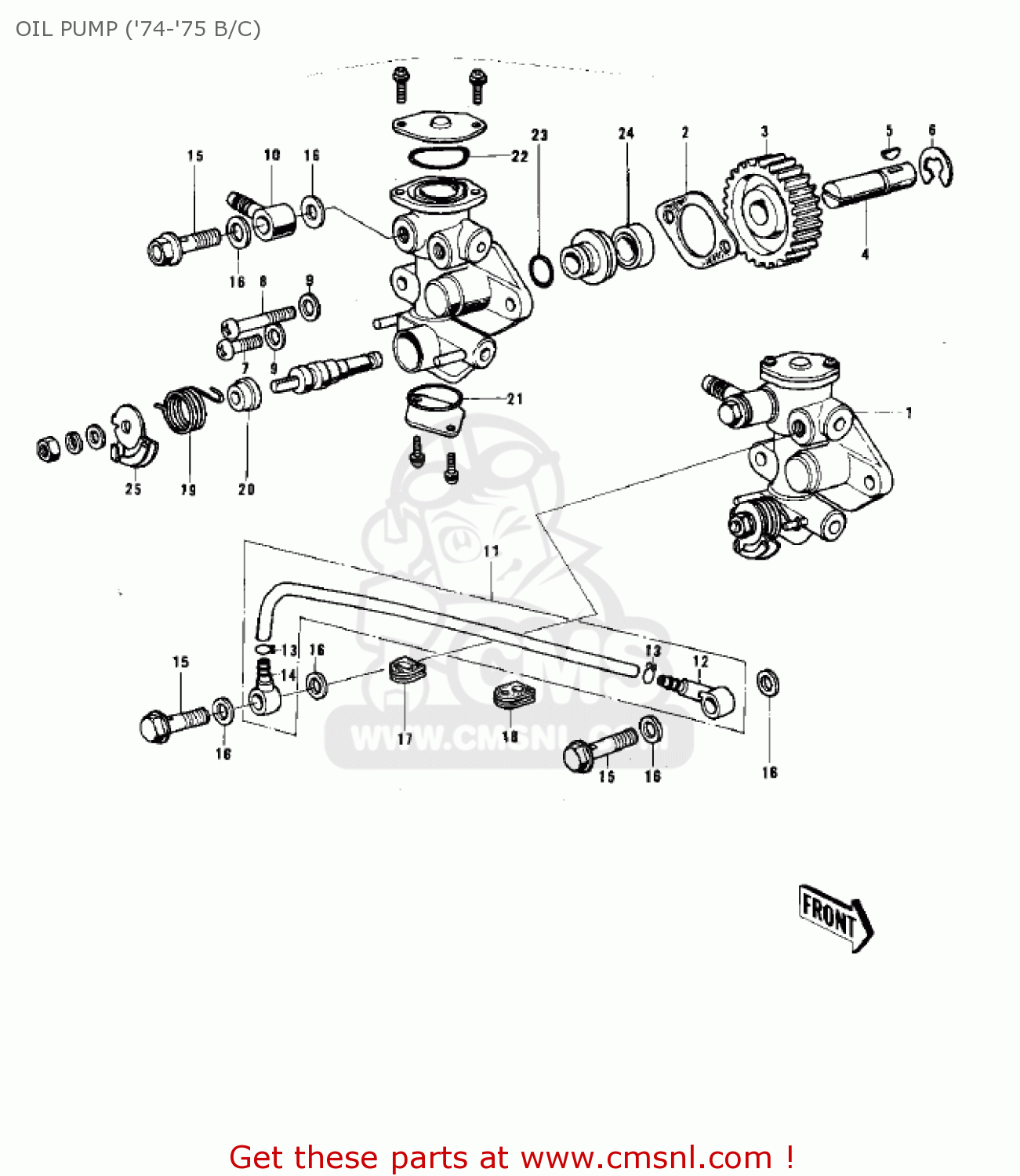

Oil pump ('74-'75 b/c) diagram G5B 1974 CANADA
OIL PUMP ('74-'75 B/C) G5B 1974 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16082067
ref: 1
PUMP-ASSY-OIL
€ 219.50
2
110601160
ref: 2
GASKET,OIL PUMP (NAS)
€ 3.00
3
16085004
ref: 3
GEAR-OIL PUMP
€ 14.50
4
16086001
ref: 4
SHAFT,OIL PUMP
€ 13.00
5
510A3100
ref: 5
KEY-WOODRUFF
€ 1.50
6
482K9000
ref: 6
CIRCLIP-TYPE-E,9MM
€ 2.50
7
220B0514
ref: 7
ACREW-PAN HEAD,5X14
€ 2.50
8
220B0528
ref: 8
SCREW-PAN-CROS
€ 0.50
9
92022037
ref: 9
WASHER,5.5X10.5X0.8
€ 2.50
10
92061009
ref: 10
FITTING,BANJO
€ 8.50
11
16134021
ref: 11
TUBE,OIL
€ 29.00
12
16128009
ref: 12
VALVE-CHECK
€ 15.50
13
92036022
ref: 13
RING-SNAP
€ 2.50
14
92061018
ref: 14
CONNECTOR,BANGO
€ 7.00
15
92060013
ref: 15
BOLT-BANJO,6MM
€ 4.00
16
92022077
ref: 16
WASHER,6.1X12X1
€ 0.50
17
21017002
ref: 17
GROMMET
€ 3.00
18
92071067
ref: 18
GROMMET,OIL PIPE
€ 3.50
19
16093006
ref: 19
SPRING,OIL PUMP LEVE
€ 6.50
20
920491294
ref: 20
SEAL-OIL,CAMSHAFT,"X"
€ 7.50
21
16090003
ref: 21
RING-O,CAP,LWR
€ 7.50
22
16088002
ref: 22
RING-O,CAP,BANJO SIDE
€ 6.50
23
16090002
ref: 23
RING-O,OIL PUMP SHAFT
€ 4.50
24
16091001
ref: 24
OIL SEAL-OIL PUMP SHT
€ 4.50
25
16096012
ref: 25
LEVER-OIL PUMP
€ 11.50
