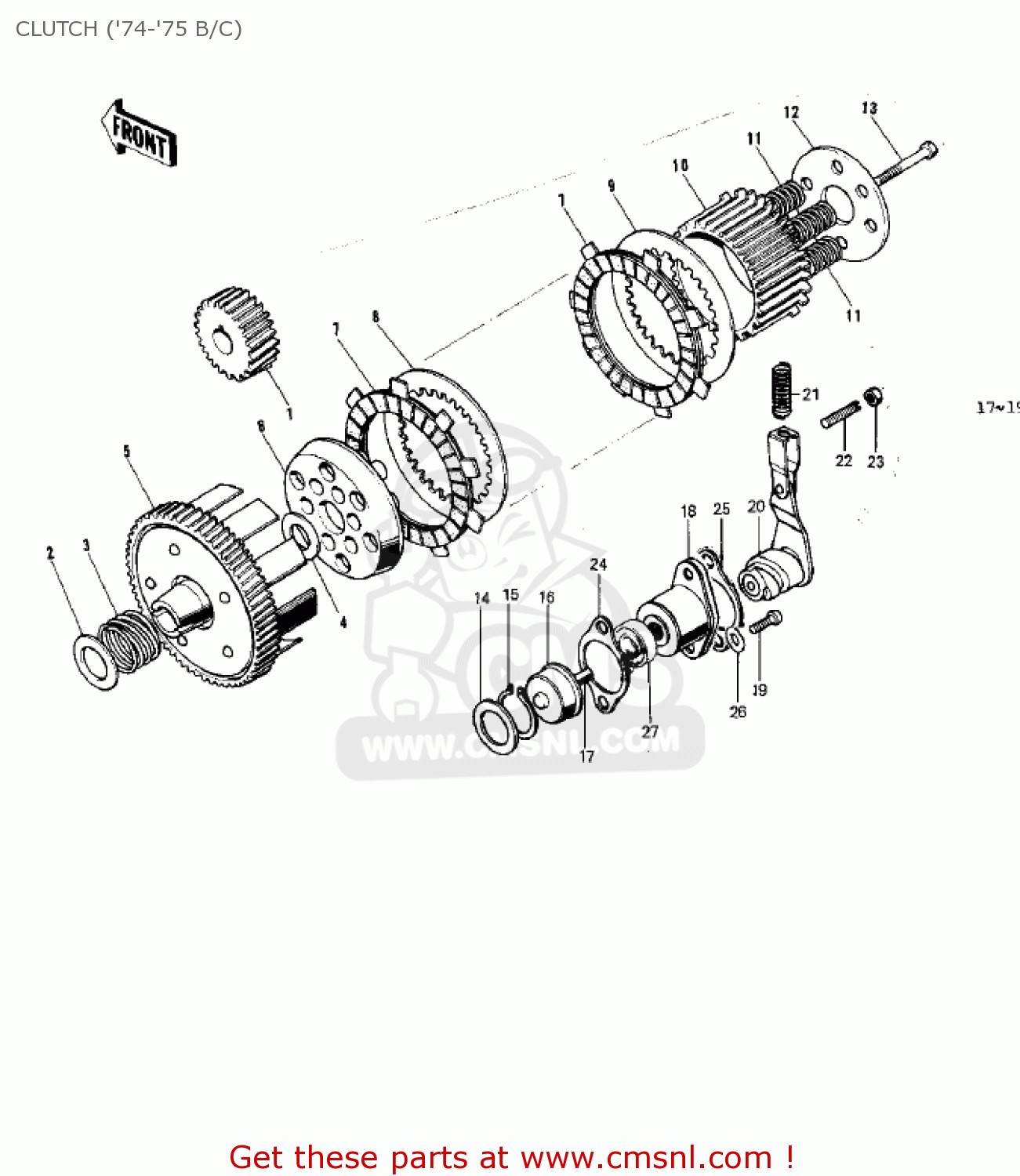

CLUTCH ('74-'75 B/C)

ref

part #

description

quantity

1

13121032
ref: 1

GEAR-PRIMARY SPUR

€ 92.50

2

92022057
ref: 2
O.D=36

WASHER,25.5X36X1

€ 2.50

3

92081015
ref: 3

SPRING-CLUTCH DAMPER

€ 4.00

4

92022054
ref: 4
O.D=27

WASHER,16.5X27X1.4

€ 4.50

?

13081028
ref: ?
Includes items 5 - 1

CLUTCH ASSY

€ 193.00

5

13095022
ref: 5

HOUSING,CLUTCH

€ 216.00

6

130861002
ref: 6

WHEEL,CLUTCH

€ 33.00

7

130881103
ref: 7

PLATE-FRICTION (MCA)

€ 11.00

8

130891009
ref: 8

PLATE-CLUTCH,STEEL (NAS)

€ 8.50

9

13090004
ref: 9

PLATE-CLUTCH,OUTER (NAS)

€ 11.50

10

130871011
ref: 10

HUB-CLUTCH

€ 74.00

11

92081012
ref: 11

SPRING-CLUTCH

€ 4.00

12

130911115
ref: 12

HOLDER,CLUTCH SPRING

€ 12.50

13

112G0516
ref: 13

BOLT-UPSET

€ 0.50

14

92022053
ref: 14
O.D=21

WASHER,THRUST,16.5X21

€ 2.50

15

480J1600
ref: 15

CIRCLIP-TYPE-C,16MM

€ 2.50

16

13113003
ref: 16

PUSHER-COMP-CLUTCH

€ 6.50

?

13231013
ref: ?
Includes items 17 -

RELEASE SET,CLUTCH

€ 55.00

17

610A0714
ref: 17

PIN,DOWEL,7X14

€ 2.50

18

13231013
ref: 18

RELEASE SET,CLUTCH

€ 55.00

18

132311008
ref: 18
USE FOR 13231-013

RELEASE-ASSY-CLUTCH

€ 55.00

19

220B0616
ref: 19

SCREW-PAN HEAD,6X16

€ 2.50

20

132311008
ref: 20

RELEASE-ASSY-CLUTCH

€ 55.00

21

92081096
ref: 21

SPRING-CLUTCH RELEASE

€ 3.50

22

291Z0625
ref: 22

SCREW-SLOTTED,6X25

€ 3.50

22

291Z0624
ref: 22
USE FOR 13231-013

UNAVAILABLE IN PRICE BOOK

€ 0.00

23

311B0600
ref: 23

NUT,6MM

€ 0.50

24

110601197
ref: 24

GASKET,CLUTCH RELEASE (NAS)

€ 3.50

25

13115008
ref: 25

HOLDER

€ 4.50

26

410B0600
ref: 26
USE FOR 13231-013

WASHER-PLAIN-SMALL,6M

€ 0.50

27

92050071
ref: 27
USE FOR 13231-013

OIL SEAL

€ 7.00
