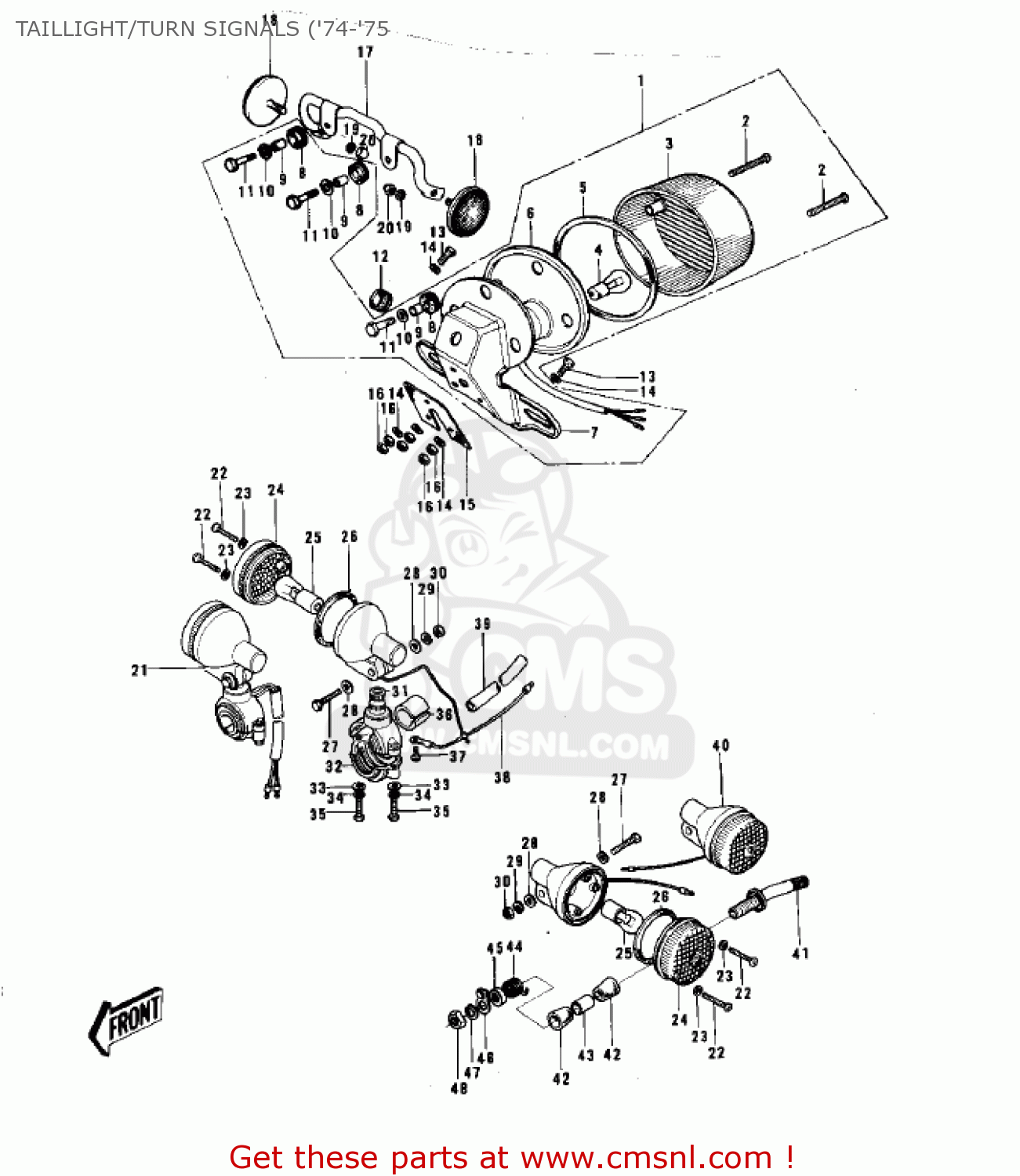

TAILLIGHT/TURN SIGNALS ('74-'75

ref

part #

description

quantity

1

2302406921
ref: 1
FLAT BLACK

LAMP ASSY,TAIL,BLACK

€ 103.50

2

220E0435A
ref: 2

SCREW-PAN HEAD,4X35

€ 4.50

3

23026023
ref: 3

LENS,TAIL LAMP

€ 91.50

4

92069028
ref: 4

BULB 6V 17/5.3W

€ 4.50

5

23028018
ref: 5

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

6

23027030
ref: 6

BODY-COMP-TAIL LAMP

€ 76.00

7

2303601921
ref: 7
FLAT BLACK

BKT-LICENSE PLT,BLACK

€ 62.00

8

92075076
ref: 8

DAMPER

€ 3.00

9

92027129
ref: 9

COLLAR,6.8X10X8.5

€ 3.00

10

92022125
ref: 10

WASHER,6.5X20X1.6

€ 1.00

11

112B0622
ref: 11

BOLT, 6X22

€ 2.50

12

92071019
ref: 12

GROMMET,10MM

€ 2.50

13

112G0630
ref: 13

BOLT-UPSET

€ 1.00

14

92022125
ref: 14

WASHER,6.5X20X1.6

€ 1.00

15

35039005
ref: 15

DAMPER,TAIL LAMP

€ 6.50

16

312B0600
ref: 16

NUT,6MM

€ 0.50

17

28013005
ref: 17

BRACKET-REFLECTOR

€ 13.00

18

28012008
ref: 18

REFLECTOR-REFLEX,REAR

€ 8.50

19

461F0500
ref: 19

WASHER-SPRING,5MM

€ 0.50

20

322N0500
ref: 20

NUT-CAP,5MM

€ 2.00

21

23037005
ref: 21

LAMP ASY-FR TURN SIG

€ 53.50

22

220E0420A
ref: 22

SCREW-PAN HEAD,4X20

€ 2.50

23

23058002
ref: 23

WASHER,PLAIN,4MM

€ 2.00

24

230481001
ref: 24

LENS-SIGNAL LAMP,045-

€ 10.50

25

92069056
ref: 25

BULB,6V 21CP

€ 4.50

26

23050003
ref: 26

GASKET,SIGNAL LAMP (NAS)

€ 3.50

27

112G0630
ref: 27

BOLT-UPSET

€ 1.00

28

411D0600
ref: 28

WASHER-PLAIN,6MM

€ 1.50

29

461F0600
ref: 29

WASHER-SPRING,6MM

€ 0.50

30

311B0600
ref: 30

NUT,6MM

€ 0.50

31

230511004
ref: 31

BRACKET-SIGNAL LAMP,F

€ 23.00

32

230511013
ref: 32

BRACKET-SIGNAL LAMP,F

€ 11.50

33

410D0500
ref: 33

WASHER-PLAIN,5MM

€ 1.50

34

461F0500
ref: 34

WASHER-SPRING,5MM

€ 0.50

35

110N0516
ref: 35

BOLT,5X16

€ 2.00

36

23066003
ref: 36

DAMPER

€ 3.50

37

220B0305A
ref: 37

SCREW-PAN HEAD,3X5

€ 1.00

38

26011061
ref: 38

WIRE-LEAD,SIGNAL LAMP

€ 2.50

39

26009004
ref: 39

COVER-WIRING HARNESS

€ 1.00

40

23040033
ref: 40

LAMP-SIGNAL

€ 59.00

41

23051044
ref: 41

BKT-RR SIGNAL LAMP

€ 22.00

42

92075148
ref: 42

DAMPER RUBBER

€ 2.00

43

92027168
ref: 43

COLLAR

€ 2.50

44

92081111
ref: 44

SPRING

€ 2.00

45

92022235
ref: 45

WASHER-PLAIN

€ 3.00

46

92037087
ref: 46

CLAMP-RR SIGNAL LAMP

€ 2.50

47

461F1200
ref: 47

WASHER-SPRING,12MM

€ 0.50

48

315B1200
ref: 48

NUT,12MM

€ 0.50

TAILLIGHT/TURN SIGNALS ('74-'75

all assemblies
