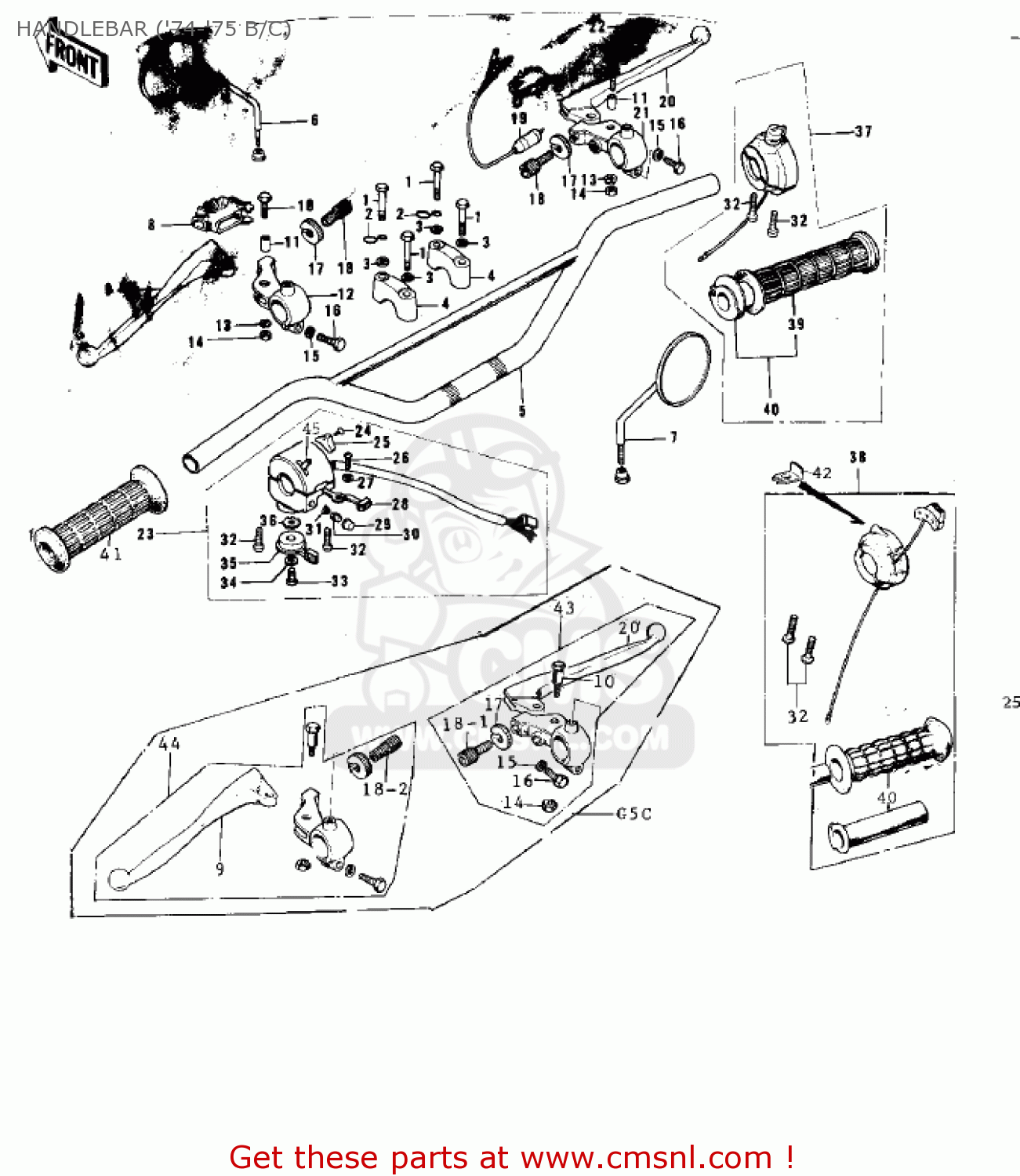

HANDLEBAR ('74-'75 B/C)

ref

part #

description

quantity

1

920011405
ref: 1

BOLT,8X38

€ 10.00

2

92037075
ref: 2

CLAMP-CABLE

€ 1.50

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

46012008
ref: 4

HOLDER-HANDLE,UPP

€ 23.00

5

46004018
ref: 5

HANDLEBAR

€ 79.50

6

56003009
ref: 6

MIRROR-ASSY,LH

€ 50.00

7

56002020
ref: 7
OPTION

MIRROR-ASSY,RH

€ 47.50

8

46071002
ref: 8

DUST COVER

€ 12.50

8

490061017
ref: 8
G5C

BOOTS,LEVER HOLDER

€ 13.00

9

46092015
ref: 9

LEVER-GRIP,CLUTCH

€ 11.50

10

92007020
ref: 10

BOLT-HEX HEAD,5X20

€ 2.50

10

92007046
ref: 10
G5C

BOLT,HEX HEAD,5X22

€ 4.50

11

46059011
ref: 11
(N/R FOR 92007-046)

COLLAR,LEVER

€ 3.50

12

4609401121
ref: 12
BLACK

HOLDER-CLUTCH LEV,BLK

€ 23.00

13

464H0500
ref: 13
(N/R FOR 92019-014)

WASHER-LOCK,5MM

€ 0.50

14

312B0500
ref: 14

NUT-HEX,5MM

€ 0.50

14

92019014
ref: 14
G5C

NUT-LOCK,5M/M

€ 2.50

15

410B0600
ref: 15

WASHER-PLAIN-SMALL,6M

€ 0.50

16

110N0625
ref: 16

BOLT-HEX HEAD,6X25

€ 3.50

16

112G0625
ref: 16

BOLT-UPSET,6X25

€ 4.00

17

46056005
ref: 17

NUT-LOCK

€ 6.00

18

46055006
ref: 18
I.D=9

SCREW-CABLE ADJUST

€ 15.50

18-1

46055010
ref: 18-1
G5C

SCREW,CABLE ADJUST

€ 21.00

18-2

46055009
ref: 18-2
G5C

SCREW,CABLE ASJUST

€ 13.00

19

27021004
ref: 19

SWITCH,FR BRAKE LAMP

€ 23.00

20

46058004
ref: 20

LEVER-GRIP,FRONT BRAK

€ 24.00

21

4606000921
ref: 21
BLACK

HOLDER,BRAKE LEVER,FR

€ 27.00

22

92102009
ref: 22

CAP-RR VIEW MIRROR

€ 3.00

23

4609101910
ref: 23

CASE ASSY,L.H,BLACK

€ 40.00

23

46091040
ref: 23
G5C

HOUSING-ASSY-CONTROL,

€ 93.50

24

221B0308A
ref: 24

SCREW-CNTSNK HD,3X8

€ 2.50

?

99990531
ref: ?
Includes items 25 an

DIMMER SWITCH KIT B

€ 1.00

25

46044011
ref: 25

KNOB-L.H SWITCH

€ 6.00

26

220B0305A
ref: 26

SCREW-PAN HEAD,3X5

€ 1.00

27

92095010
ref: 27

WASHER

€ 2.50

28

46044010
ref: 28

KNOB-SWITCH

€ 6.00

29

270101009
ref: 29

SWITCH ASSY,HORN BUTN

€ 5.50

30

270101009
ref: 30

SWITCH ASSY,HORN BUTN

€ 5.50

31

270101009
ref: 31

SWITCH ASSY,HORN BUTN

€ 5.50

32

220B0525
ref: 32

SCREW-PAN-CROS,5X25

€ 2.50

33

110B0608
ref: 33
G5B

BOLT-HEX HEAD,6X8

€ 0.50

34

410B0600
ref: 34
G5B

WASHER-PLAIN-SMALL,6M

€ 0.50

35

4609600810
ref: 35
G5B

LEVER,STARTER,BLACK

€ 17.00

36

92095012
ref: 36
G5B

WASHER-LOCK

€ 3.50

37

4601802010
ref: 37

CASE ASSY,R.H.

€ 59.50

38

46018036
ref: 38
E/NO 53701=

CASE ASSY,R.H

€ 128.50

39

46061013
ref: 39

RUBBER-R.H GRIP

€ 9.50

40

46019020
ref: 40

GRIP ASSY-THROTTLE

€ 14.00

40

46019034
ref: 40
G5C

GRIP ASSY,THROTTLE

€ 29.00

41

46075018
ref: 41

RUBBER-L.H GRIP

€ 10.00

41

46075019
ref: 41

RUBBER-L.H GRIP

€ 6.00

42

46037023
ref: 42
E/NO 53701=

HOLDER,CONTROL CABLE

€ 4.50

43

46021029
ref: 43
G5C

LEVER ASSY,FRNT BRAKE

€ 34.00

44

46076044
ref: 44
G5C

LEVER-ASSY-GRIP,CLUTC

€ 48.00

45

46089015
ref: 45
G5C

SWITCH ASSEMBLY,LH

€ 33.50

all assemblies
