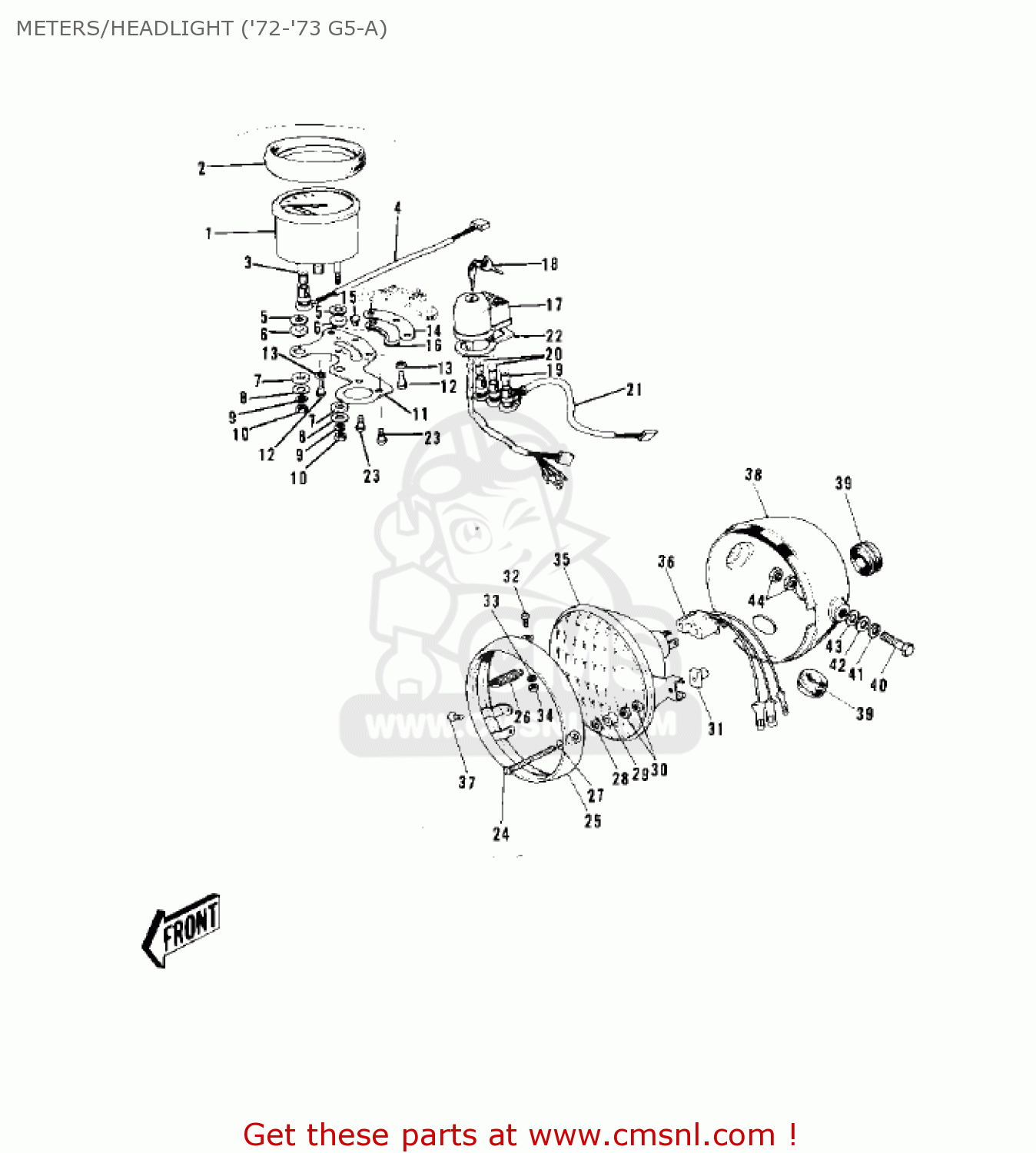

METERS/HEADLIGHT ('72-'73 G5-A)

ref

part #

description

quantity

?

25001051
ref: ?
Includes items 1 - 4

SPEEDOMETER ASSEMBLY,MPH

€ 228.00

?

25001051
ref: ?
Includes items 1 - 4

SPEEDOMETER ASSEMBLY,MPH

€ 228.00

2

25012003
ref: 2

COVER

€ 23.50

3

92069053
ref: 3

BULB 6V 3W

€ 3.00

4

25011022
ref: 4

SPEEDOMETER SOCKET

€ 28.50

5

411B0800
ref: 5
I.D.=8.5

WASHER-PLAIN,8MM

€ 0.50

6

92075065
ref: 6

DAMPER RUBBER

€ 1.00

7

92075066
ref: 7

DAMPER RUBBER

€ 1.00

8

92022104
ref: 8
I.D.=5.5

WASHER-SPEEDMETR FIT

€ 2.50

9

461F0500
ref: 9

WASHER-SPRING,5MM

€ 0.50

10

311B0500
ref: 10

NUT-HEX

€ 0.50

11

25008016
ref: 11

SPEEDOMETER BRACKET

€ 23.50

12

92003069
ref: 12

BOLT,6MM

€ 5.50

13

410B0800
ref: 13

WASHER-PLAIN-SMALL,8M

€ 0.50

14

25019007
ref: 14

DAMPER,BRACKET

€ 3.50

15

92075035
ref: 15

DAMPER

€ 3.00

16

25019009
ref: 16

SHOCK DAMPER

€ 9.00

?

27005067
ref: ?
Includes items 17 an

SWITCH ASSY,IGNITION

€ 120.00

18

2700804270
ref: 18

KEY SET,170

€ 5.50

18

2700804271
ref: 18

KEY SET,171

€ 8.00

18

2700804272
ref: 18

KEY SET,172

€ 5.50

18

2700804273
ref: 18

KEY SET,173

€ 7.50

18

2700804274
ref: 18

KEY SET,174

€ 8.00

19

92069053
ref: 19

BULB 6V 3W

€ 3.00

20

92069024
ref: 20

BULB 6V 1.5W

€ 3.00

21

27024001
ref: 21

IGNITION SWITCH SOCKET

€ 67.50

22

27025001
ref: 22

DAMPER RUBBER-SWITCH

€ 4.00

23

92011026
ref: 23

SCREW-PAN HEAD,6MM

€ 3.00

?

23003009
ref: ?
Includes items 24 -

LAMP UNIT-HEAD

€ 103.50

24

23019013
ref: 24

SCREW-ADJUST

€ 1.00

25

23006020
ref: 25

RIM-HEAD LAMP

€ 43.00

26

23014008
ref: 26

SPRING-LENS FITTING

€ 1.00

27

23021008
ref: 27

WASHER,FOCUS ADJUSTIN

€ 2.00

28

23021007
ref: 28

WASHER-ADJUST

€ 1.00

29

23058001
ref: 29

WASHER-FITTING

€ 1.00

30

23020013
ref: 30

NUT-ADJUST

€ 1.50

31

23020012
ref: 31

NUT,ADJUSTING

€ 2.50

32

23019014
ref: 32

SCREW-FITTING

€ 0.50

33

461F0400
ref: 33

WASHER-SPRING,4MM

€ 0.50

34

311B0400
ref: 34

NUT-HEX,4MM

€ 0.50

35

23007023
ref: 35

SEALED BEAM UNIT

€ 205.00

36

23008044
ref: 36

SOCKET-ASSY,HEAD LAMP

€ 15.00

37

222E0508A
ref: 37

SCREW-OVL CNTSNK,5X8

€ 2.00

38

2300502121
ref: 38

BODY-HEAD LAMP,BLACK

€ 39.00

39

23023007
ref: 39

GROMMET

€ 2.00

40

92007045
ref: 40

BOLT, HEX HEAD, 10X25

€ 6.00

41

461F1000
ref: 41

WASHER-SPRING,10MM

€ 0.50

42

411B1000
ref: 42

WASHER-PLAIN,10MM

€ 0.50

43

463H1000
ref: 43

WASHER-LOCK,10MM

€ 0.50

44

92016027
ref: 44

NUT,10MM

€ 2.00
