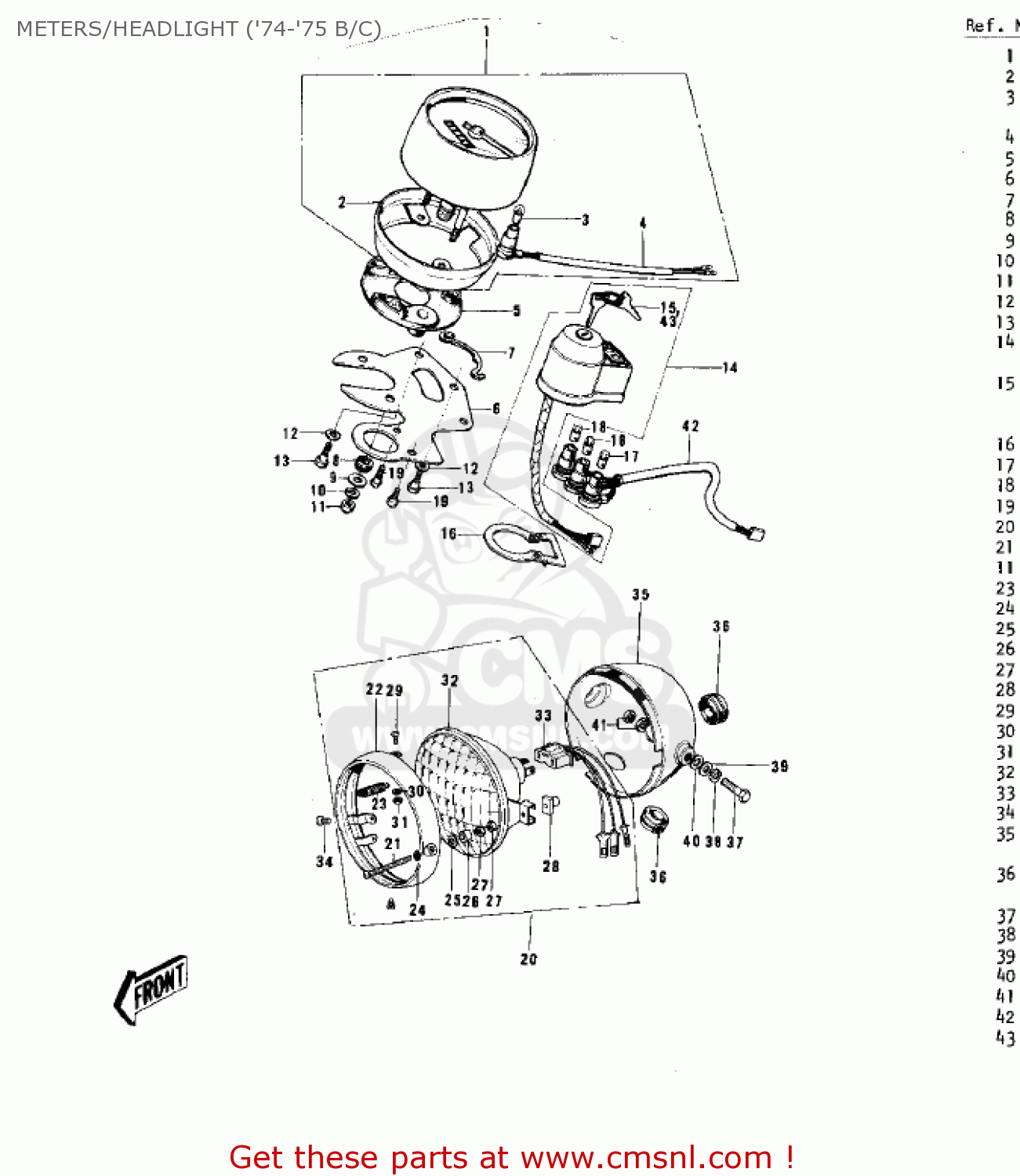

METERS/HEADLIGHT ('74-'75 B/C)

ref

part #

description

quantity

1

25005095
ref: 1

SPEEDOMETER ASSY

€ 90.50

2

25012016
ref: 2

SPEEDOMETER COVER

€ 43.50

3

92069053
ref: 3

BULB 6V 3W

€ 3.00

3

92069024
ref: 3
G5C

BULB 6V 1.5W

€ 3.00

4

25010014
ref: 4

SOCKET-ASSY,METER

€ 28.50

5

25019018
ref: 5

DAMPER,SPEEDOMETER

€ 7.00

6

25008031
ref: 6

SPEEDOMETER BRACKET

€ 49.50

7

25019007
ref: 7

DAMPER,BRACKET

€ 3.50

8

25019019
ref: 8

DAMPER,METER

€ 4.50

9

92022104
ref: 9

WASHER-SPEEDMETR FIT

€ 2.50

10

461F0500
ref: 10

WASHER-SPRING,5MM

€ 0.50

11

322N0500
ref: 11

NUT-CAP,5MM

€ 2.00

12

410B0800
ref: 12

WASHER-PLAIN-SMALL,8M

€ 0.50

13

92003069
ref: 13

BOLT,6MM

€ 5.50

14

27005067
ref: 14

SWITCH ASSY,IGNITION

€ 120.00

14

27005082
ref: 14
CANADA ONLY

IGNITION SWITCH ASSEMBLY

€ 118.50

15

2700806301
ref: 15

KEY SET,#401

€ 19.00

15

2700806330
ref: 15

KEY SET,#430

€ 7.00

16

27025001
ref: 16

DAMPER RUBBER-SWITCH

€ 4.00

17

92069053
ref: 17

BULB 6V 3W

€ 3.00

18

92069024
ref: 18

BULB 6V 1.5W

€ 3.00

19

92011026
ref: 19

SCREW-PAN HEAD,6MM

€ 3.00

20

23003009
ref: 20

LAMP UNIT-HEAD

€ 103.50

21

23019013
ref: 21

SCREW-ADJUST

€ 1.00

11

23006020
ref: 11

RIM-HEAD LAMP

€ 43.00

23

23014008
ref: 23

SPRING-LENS FITTING

€ 1.00

24

23021008
ref: 24

WASHER,FOCUS ADJUSTIN

€ 2.00

25

23021007
ref: 25

WASHER-ADJUST

€ 1.00

26

23058001
ref: 26

WASHER-FITTING

€ 1.00

27

23020013
ref: 27

NUT-ADJUST

€ 1.50

28

23020012
ref: 28

NUT,ADJUSTING

€ 2.50

29

23019014
ref: 29

SCREW-FITTING

€ 0.50

30

461F0400
ref: 30

WASHER-SPRING,4MM

€ 0.50

31

311B0400
ref: 31

NUT-HEX,4MM

€ 0.50

32

23007023
ref: 32

SEALED BEAM UNIT

€ 205.00

33

23008044
ref: 33

SOCKET-ASSY,HEAD LAMP

€ 15.00

34

222E0508A
ref: 34

SCREW-OVL CNTSNK,5X8

€ 2.00

35

2300502121
ref: 35
FLAT BLACK

BODY-HEAD LAMP,BLACK

€ 39.00

35

2300505121
ref: 35

HEADLAMP BODY,FLAT BLACK

€ 64.50

36

23023007
ref: 36
USE FOR 23005-021-21

GROMMET

€ 2.00

36

23023011
ref: 36
USE FOR 23005-051-21

GROMMET

€ 4.50

37

92007045
ref: 37

BOLT, HEX HEAD, 10X25

€ 6.00

38

461F1000
ref: 38

WASHER-SPRING,10MM

€ 0.50

39

411B1000
ref: 39

WASHER-PLAIN,10MM

€ 0.50

40

463H1000
ref: 40

WASHER-LOCK,10MM

€ 0.50

41

92016027
ref: 41

NUT,10MM

€ 2.00

42

27024001
ref: 42

IGNITION SWITCH SOCKET

€ 67.50

43

270081024
ref: 43

KEY-LOCK,BLANK

€ 14.00

43

270081025
ref: 43

KEY-LOCK,BLANK

€ 14.00
