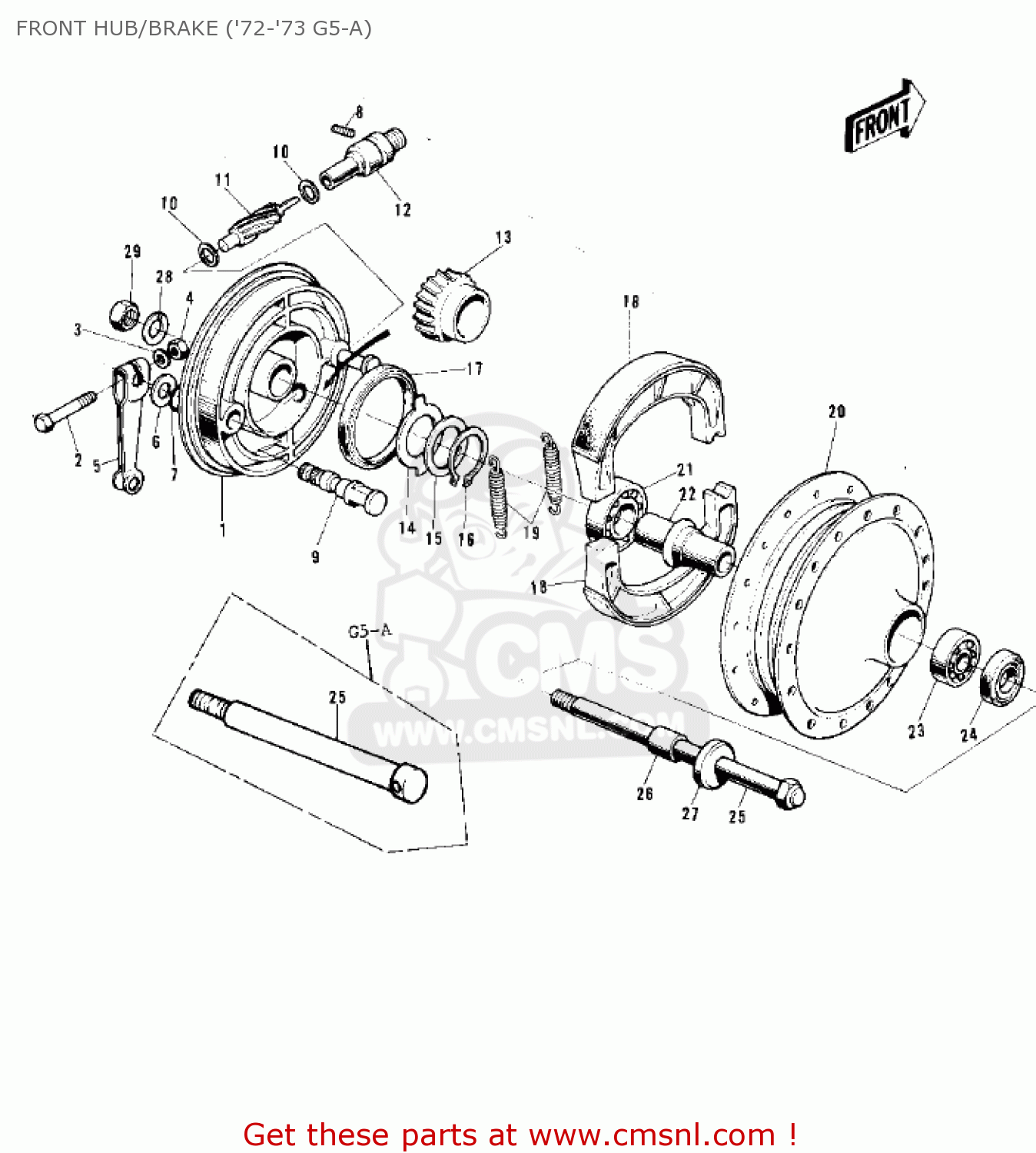

FRONT HUB/BRAKE ('72-'73 G5-A)

ref

part #

description

quantity

?

4103507180
ref: ?
Includes items 1 - 1

PANEL ASY,FR BRK,BUFF

€ 210.00

2

112G0630
ref: 2

BOLT-UPSET

€ 1.00

2

112G0630
ref: 2

BOLT-UPSET

€ 1.00

3

410B0600
ref: 3

WASHER-PLAIN-SMALL,6M

€ 0.50

4

311B0600
ref: 4

NUT,6MM

€ 0.50

5

41053005
ref: 5

LEVER-BRAKE CAM

€ 11.50

6

41052001
ref: 6

WASHER-BRAKE CAM SHT

€ 1.00

7

92055004
ref: 7

RING-O,BRAKE CAM

€ 3.00

8

41070001
ref: 8

SCREW-BUSHING SET

€ 0.50

9

41050018
ref: 9

CAM-BRAKE

€ 18.00

10

41063001
ref: 10

WASHER-THRST SPD PINI

€ 3.00

11

41060004
ref: 11

PINION,SPEEDOMETER

€ 20.50

12

41062001
ref: 12

BUSH-SPEEDMETER CABLE

€ 7.00

13

41059006
ref: 13

SPEEDOMETER GEAR

€ 45.50

14

41064002
ref: 14

RECIEVER-SPEED GEAR

€ 1.50

15

41065002
ref: 15

WASHER-SPEED GR THRST

€ 2.00

16

480J1500
ref: 16

CIRCLIP-TYPE-C,15MM

€ 1.00

17

92050002
ref: 17

OIL SEAL-BRAKE PANEL

€ 9.00

18

410481085
ref: 18

SHOE-BRAKE (NAS)

€ 13.00

19

920811766
ref: 19

SPRING,BRAKE SHOE

€ 5.50

?

410341040
ref: ?
Includes items 20 -

DRUM-ASSY,FR,BUFF FIN

€ 203.50

21

601B6300Z
ref: 21

BEARING-BALL,#6300ZC3

€ 18.50

22

41039002
ref: 22

COLLAR,L=51

€ 6.00

23

601B6200
ref: 23

BEARING-BALL,#6200C3

€ 11.50

24

92050003
ref: 24

OIL SEAL-FRONT DRUM

€ 4.00

25

41068039
ref: 25
G5

AXLE-FRONT

€ 20.00

25

41068039
ref: 25
G5-A

AXLE-FRONT

€ 20.00

26

41069002
ref: 26

COLLAR-FRONT HUB R.H

€ 4.00

27

41042002
ref: 27

DUST SHIELD-FRNT DRUM

€ 2.50

28

461F1000
ref: 28

WASHER-SPRING,10MM

€ 0.50

29

42045005
ref: 29

NUT,10MM

€ 5.00
