FRAME/FRAME FITTINGS ('74-'75 B/
G5B 1974 CANADA

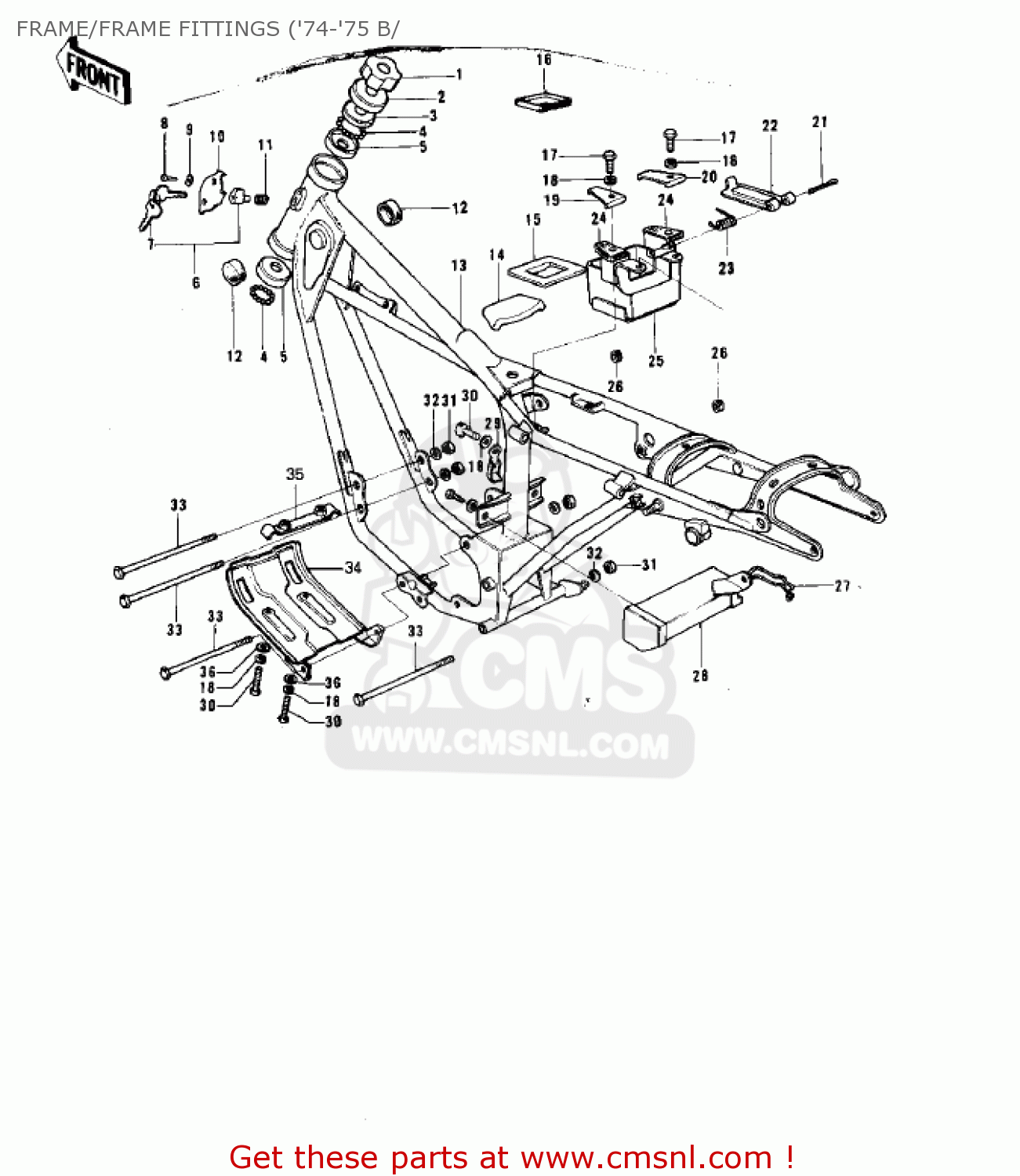

Frame/frame fittings ('74-'75 b/ diagram G5B 1974 CANADA
FRAME/FRAME FITTINGS ('74-'75 B/ G5B 1974 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92090006
ref: 1
NUT-STEERING STEM LCK
€ 10.50
2
46098004
ref: 2
CAP-STEERING STEM
€ 4.00
3
92047005
ref: 3
CONE-UPPER BEARING
€ 10.50
4
600A0600
ref: 4
BALL-STEEL,3/16
€ 0.50
5
92048004
ref: 5
RACE-BEARING
€ 10.00
6
27016042
ref: 6
LOCK-ASSY,STEERING
€ 36.00
7
2700806301
ref: 7
REF GRID E5
KEY SET,#401
€ 19.00
7
2700806302
ref: 7
KEY SET,#402
€ 17.50
7
2700806303
ref: 7
KEY SET,#403
€ 9.00
7
2700806304
ref: 7
KEY SET,#404
€ 13.50
7
2700806305
ref: 7
KEY SET,#405
€ 14.50
7
2700806306
ref: 7
KEY SET,#406
€ 14.50
7
2700806307
ref: 7
KEY SET,#407
€ 7.00
7
2700806308
ref: 7
KEY SET,#408
€ 14.50
7
2700806309
ref: 7
KEY SET,#409
€ 14.50
7
2700806310
ref: 7
KEY SET,#410
€ 14.50
7
2700806311
ref: 7
KEY SET,#411
€ 14.00
7
2700806312
ref: 7
KEY SET,#412
€ 14.00
7
2700806313
ref: 7
KEY SET,#413
€ 14.00
7
2700806314
ref: 7
KEY SET,#414
€ 7.00
7
2700806315
ref: 7
KEY SET,#415
€ 14.00
8
92008007
ref: 8
SCREW-TAPPING
€ 2.50
9
92097003
ref: 9
WASHER
€ 2.50
10
110121134
ref: 10
CAP,STEERING LOCK
€ 4.50
11
27032001
ref: 11
SPRING-STEERING LOCK
€ 3.50
12
92075101
ref: 12
DAMPER RUBBER-FL TANK
€ 4.00
13
32002072
ref: 13
FRAME
€ 634.50
14
92075106
ref: 14
DAMPER,FUEL TANK
€ 10.00
15
32103024
ref: 15
DAMPER,BATTERY
€ 4.50
16
32103018
ref: 16
MAT-BATTERY
€ 2.00
17
112G0618
ref: 17
BOLT-UPSET
€ 0.50
18
461F0600
ref: 18
WASHER-SPRING,6MM
€ 0.50
19
32101003
ref: 19
PLATE
€ 3.00
20
32101004
ref: 20
PLATE
€ 3.00
21
550D2535
ref: 21
PIN-COTTER,2.5X35
€ 1.50
22
92072037
ref: 22
BAND-BATTERY
€ 2.50
23
92083017
ref: 23
SPRING-RETURN
€ 1.50
24
92075108
ref: 24
DAMPER
€ 3.00
25
32097034
ref: 25
CASE,BATTERY
€ 39.00
26
92071056
ref: 26
GROMMET
€ 2.50
27
B6HSA
ref: 27
SPARK PLUG,B6HS
€ 2.50
28
32098018
ref: 28
CASE-TOOL
€ 51.00
29
92037070
ref: 29
CLAMP-BREATHER PIPE
€ 1.50
30
112B0614
ref: 30
BOLT-UPSET 6X14
€ 2.50
31
314B1000
ref: 31
NUT,10MM
€ 0.50
32
461F1000
ref: 32
WASHER-SPRING,10MM
€ 0.50
33
920011603
ref: 33
BOLT,FLANGED,10X115
€ 7.00
34
55011018
ref: 34
GUARD,ENGINE
€ 25.50
35
55016007
ref: 35
BRACKET,ENGINE GUARD
€ 12.50
36
410B0600
ref: 36
WASHER-PLAIN-SMALL,6M
€ 0.50
