TAILLIGHT (G5-A)
G5B 1974 CANADA

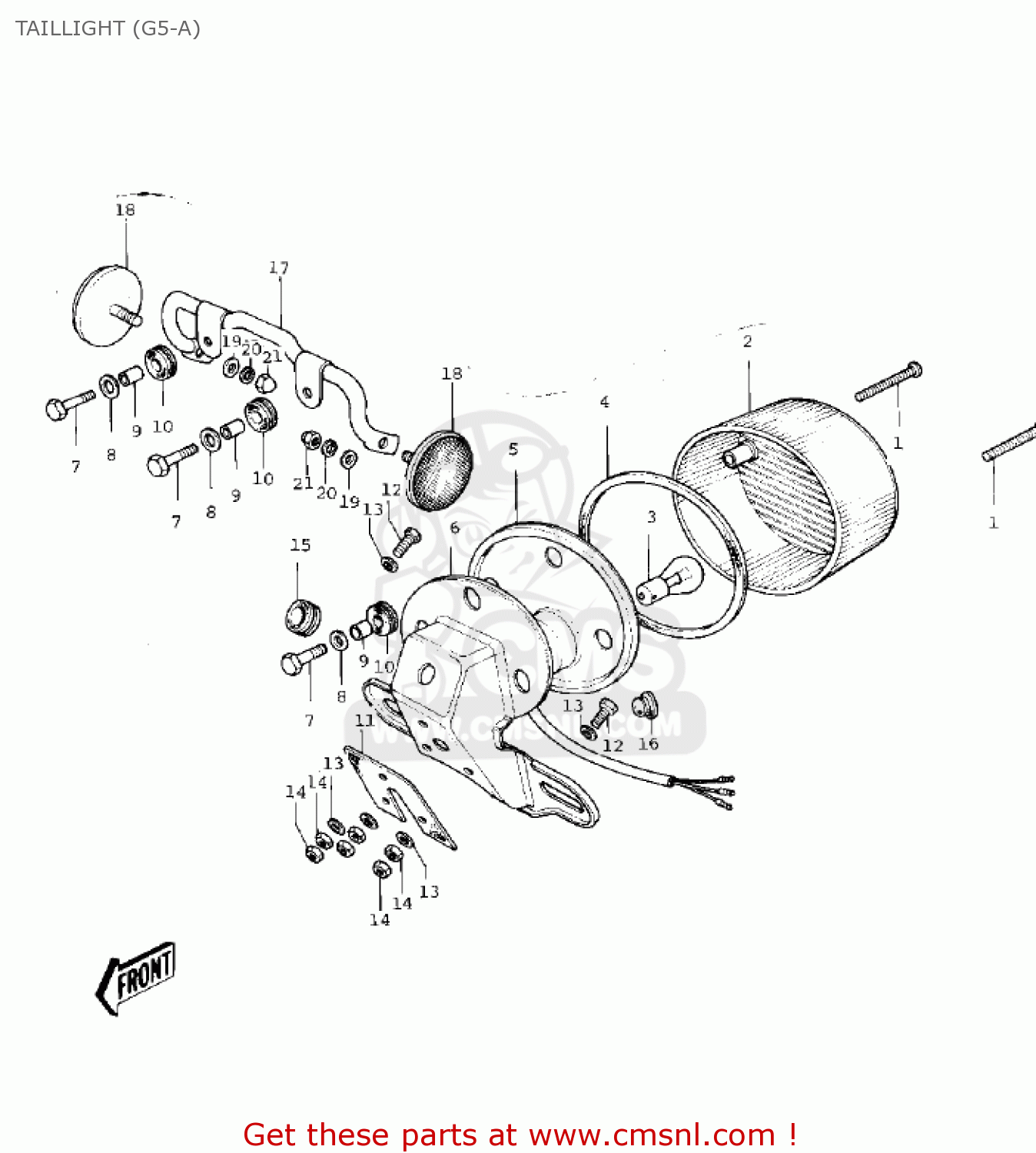

Taillight (g5-a) diagram G5B 1974 CANADA
TAILLIGHT (G5-A) G5B 1974 CANADA
×
prices are in EUR
ref
part #
description
quantity
?
2302406921
ref: ?
Includes items 1 - 1
LAMP ASSY,TAIL,BLACK
€ 103.50
1
220E0435A
ref: 1
SCREW-PAN HEAD,4X35
€ 4.50
2
23026023
ref: 2
LENS,TAIL LAMP
€ 91.50
3
92069028
ref: 3
BULB 6V 17/5.3W
€ 4.50
4
23028018
ref: 4
GASKET,TAIL LAMP LENS (NAS)
€ 6.50
5
23027030
ref: 5
BODY-COMP-TAIL LAMP
€ 76.00
6
2303601921
ref: 6
FLAT BLACK
BKT-LICENSE PLT,BLACK
€ 62.00
7
112G0620
ref: 7
BOLT 6X20
€ 1.00
7
112G0620
ref: 7
BOLT 6X20
€ 1.00
8
92022125
ref: 8
WASHER,6.5X20X1.6
€ 1.00
9
92027129
ref: 9
COLLAR,6.8X10X8.5
€ 3.00
10
92075076
ref: 10
DAMPER
€ 3.00
11
35039005
ref: 11
DAMPER,TAIL LAMP
€ 6.50
12
112G0630
ref: 12
BOLT-UPSET
€ 1.00
12
112G0630
ref: 12
BOLT-UPSET
€ 1.00
13
92022125
ref: 13
WASHER,6.5X20X1.6
€ 1.00
14
312B0600
ref: 14
NUT,6MM
€ 0.50
15
92071019
ref: 15
GROMMET,10MM
€ 2.50
16
92074006
ref: 16
PLUG,FENDER,RR,12X1
€ 4.00
17
28013005
ref: 17
BRACKET-REFLECTOR
€ 13.00
18
28012009
ref: 18
REFLECTOR-REFLEX,RR
€ 17.50
19
411B0500
ref: 19
WASHER-PLAIN,5MM
€ 0.50
20
461F0500
ref: 20
WASHER-SPRING,5MM
€ 0.50
21
322N0500
ref: 21
NUT-CAP,5MM
€ 2.00
