Genuine unknown Kawasaki Parts delivered quickly!


TRANSMISSION /CHANGE DRUM ('69-'

G3TR BUSHMASTER 1969 USA CANADA

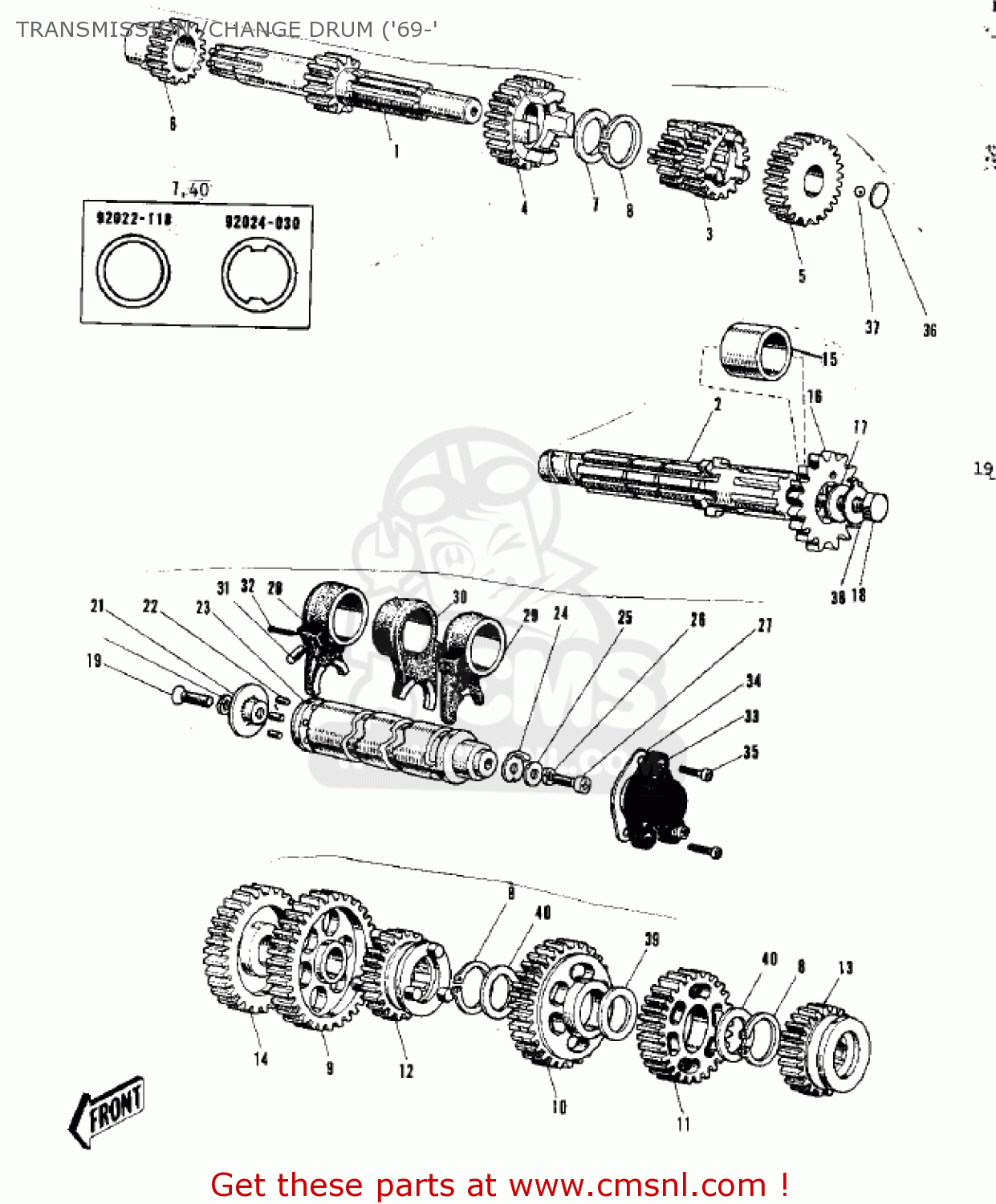

Transmission /change drum ('69-' diagram G3TR BUSHMASTER 1969 USA CANADA

TRANSMISSION /CHANGE DRUM ('69-' G3TR BUSHMASTER 1969 USA CANADA
TRANSMISSION /CHANGE DRUM ('69-' G3TR BUSHMASTER 1969 USA CANADA
TRANSMISSION /CHANGE DRUM ('69-' G3TR BUSHMASTER 1969 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
13127032
ref: 1
12 TEETH
SHAFT,DRIVE
13127032
€ 76.00
2
13128021
ref: 2
SHAFT-OUTPUT
13128021
€ 160.50
3
131291052
ref: 3
17/20 TEETH
GEAR,INPUT 2ND&3RD,17
€ 55.00
4
131291053
ref: 4
22 TEETH
GEAR,INPUT 4TH,16T
131291053
€ 23.50
5
131291927
ref: 5
24 TEETH
GEAR, INPUT TOP 24T
€ 25.00
6
13075004
ref: 6
16 TEETH
GEAR-SPUR,KICKSTARTER
13075004
€ 40.50
7
92022118
ref: 7
T=1.2 M/M
WASHER,18.5X23X1.2
92022118
€ 3.00
8
92033014
ref: 8
RING-SNAP,16MM
92033014
€ 3.50
9
13129010
ref: 9
35 TEETH
GEAR,OUTPUT LOW,35T
13129010
€ 66.50
10
13131008
ref: 10
30 TEETH
GEAR,OUTPUT 2ND,30T
13131008
€ 40.50
11
13133005
ref: 11
26 TEETH
GEAR,OUTPUT 3RD,26T
13133005
€ 46.50
12
131291708
ref: 12
24 TEETH
GEAR,OUTPUT 4TH,24T
€ 70.00
13
13137012
ref: 13
23 TEETH
TOP GEAR-OUTPUT SHAFT
13137012
€ 28.50
14
13073004
ref: 14
30 TEETH
GEAR-SPUR,KICKSTARTER
13073004
€ 55.50
15
92027009
ref: 15
SPACER-ENG SPROCKET
92027009
€ 12.50
15
92027179
ref: 15
E/NO 297482 & UP
COLLAR,ENG SPROCKET
€ 12.50
16
131441058
ref: 16
14 TEETH
SPROCKET-OUTPUT,14T
131441058
€ 20.00
17
92022130
ref: 17
WASHER-ENG SPROCKET
92022130
€ 2.00
18
115G0816
ref: 18
BOLT-HEX,HEAD 8X16
115G0816
€ 0.50
?
13239005
ref: ?
Includes items 19 -
DRUM ASSY-GEAR CHANGE
13239005
€ 165.00
19
220B0612
ref: 19
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
20
464H0600
ref: 20
WASHER-LOCK,6MM
464H0600
€ 0.50
21
13142008
ref: 21
PLATE-CHANGE DRUM PIN
13142008
€ 4.00
22
92042014
ref: 22
PIN-GEAR CHANGE DRUM
92042014
€ 0.50
23
13239005
ref: 23
DRUM ASSY-GEAR CHANGE
13239005
€ 165.00
24
210071003
ref: 24
ROTOR,TOP & NEUTRAL
210071003
€ 4.50
25
410B0600
ref: 25
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
26
461F0600
ref: 26
WASHER-SPRING,6MM
461F0600
€ 0.50
27
92011003
ref: 27
SCREW PAN HEAD 6X16
€ 2.50
28
13140010
ref: 28
FORK-SHIFT,LOW&2ND
13140010
€ 81.50
29
13140009
ref: 29
FORK-SELECTOR,3RD
13140009
€ 46.50
30
13140017
ref: 30
FORK-SELECTOR,4TH-TOP
13140017
€ 120.00
31
92043005
ref: 31
PIN,DOWEL,8X15
92043005
€ 4.50
32
550D3020
ref: 32
PIN-COTTER,3.0X20
550D3020
€ 2.00
33
131511001
ref: 33
SWITCH-COMP,NEUTRAL
131511001
€ 9.50
34
13146002
ref: 34
GASKET,NEUTRAL SWITCH (NAS)
13146002
€ 2.50
35
220B0616
ref: 35
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
36
92022115
ref: 36
WASHER,THRUST
92022115
€ 2.50
37
600A0700
ref: 37
BALL-STEEL,7/32
600A0700
€ 2.50
38
92030007
ref: 38
WASHER-LOCK,8MM
92030007
€ 1.00
39
92022146
ref: 39
T=1.6 M/M
WASHER,THRUST,18.5X23
92022146
€ 4.50
40
92024030
ref: 40
WASHER,TOOTHED,18.5X2
92024030
€ 4.00
