CYLINDER HEAD/CYLINDER ('69-'73)

G3TR BUSHMASTER 1969 USA CANADA

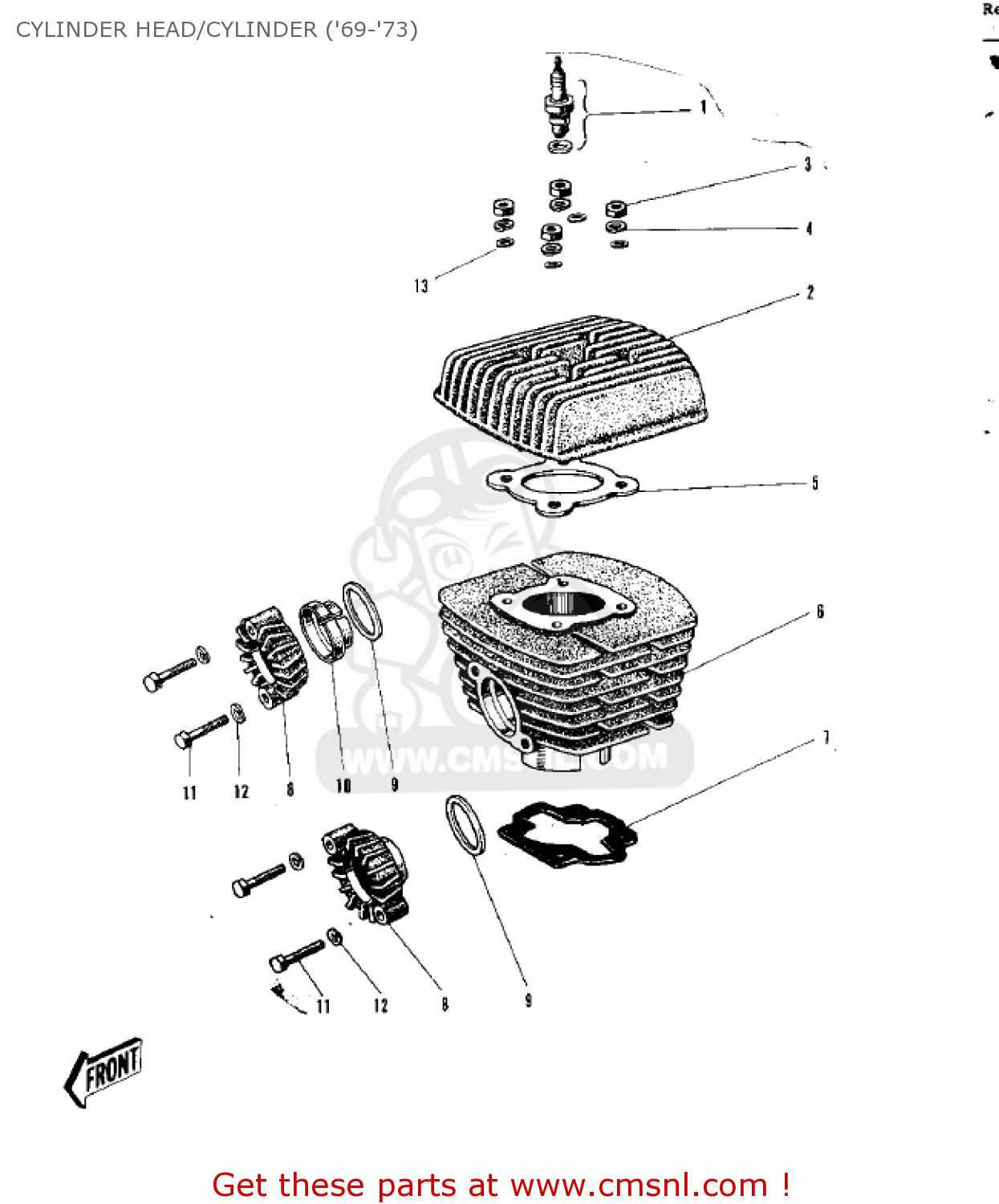

Cylinder head/cylinder ('69-'73) diagram G3TR BUSHMASTER 1969 USA CANADA

CYLINDER HEAD/CYLINDER ('69-'73) G3TR BUSHMASTER 1969 USA CANADA

CYLINDER HEAD/CYLINDER ('69-'73) G3TR BUSHMASTER 1969 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

92070010
ref: 1
NGK-B8HC

B8HC (NGK SPARKPLUG)

€ 6.50

2

11001015
ref: 2

CYLINDER HEAD

€ 73.50

3

311B0800
ref: 3

NUT,8MM

€ 0.50

4

461F0800
ref: 4

WASHER-SPRING,8MM

€ 0.50

5

11004015
ref: 5

GASKET-HEAD,CYLINDER (NAS)

€ 6.00

5

11004033
ref: 5
G3TR-A

GASKET-HEAD,CYLINDER (NAS)

€ 9.00

6

11005025
ref: 6

CYLINDER

€ 119.00

6

11005075
ref: 6
G3TR-A

CYLINDER

€ 385.00

7

11009009
ref: 7

GASKET-CYLINDER BASE (MCA)

€ 3.50

8

18069023
ref: 8

HOLDER-EXHAUST PIPE

€ 9.00

8

18069004
ref: 8

HOLDER-EXHAUST PIPE

€ 24.00

9

110091992
ref: 9

GASKET,EXHAUST PIPE (NAS)

€ 5.50

10

18070004
ref: 10

EXHAUST PIPE INSERT HOLDER

€ 12.00

11

112G0635
ref: 11

BOLT-UPSET,6X35

€ 2.50

11

112G0630
ref: 11

BOLT-UPSET

€ 1.00

12

461F0600
ref: 12

WASHER-SPRING,6MM

€ 0.50

13

410B0800
ref: 13

WASHER-PLAIN-SMALL,8M

€ 0.50
