ENGINE COVERS ('74-'75)
G3TR BUSHMASTER 1969 USA CANADA

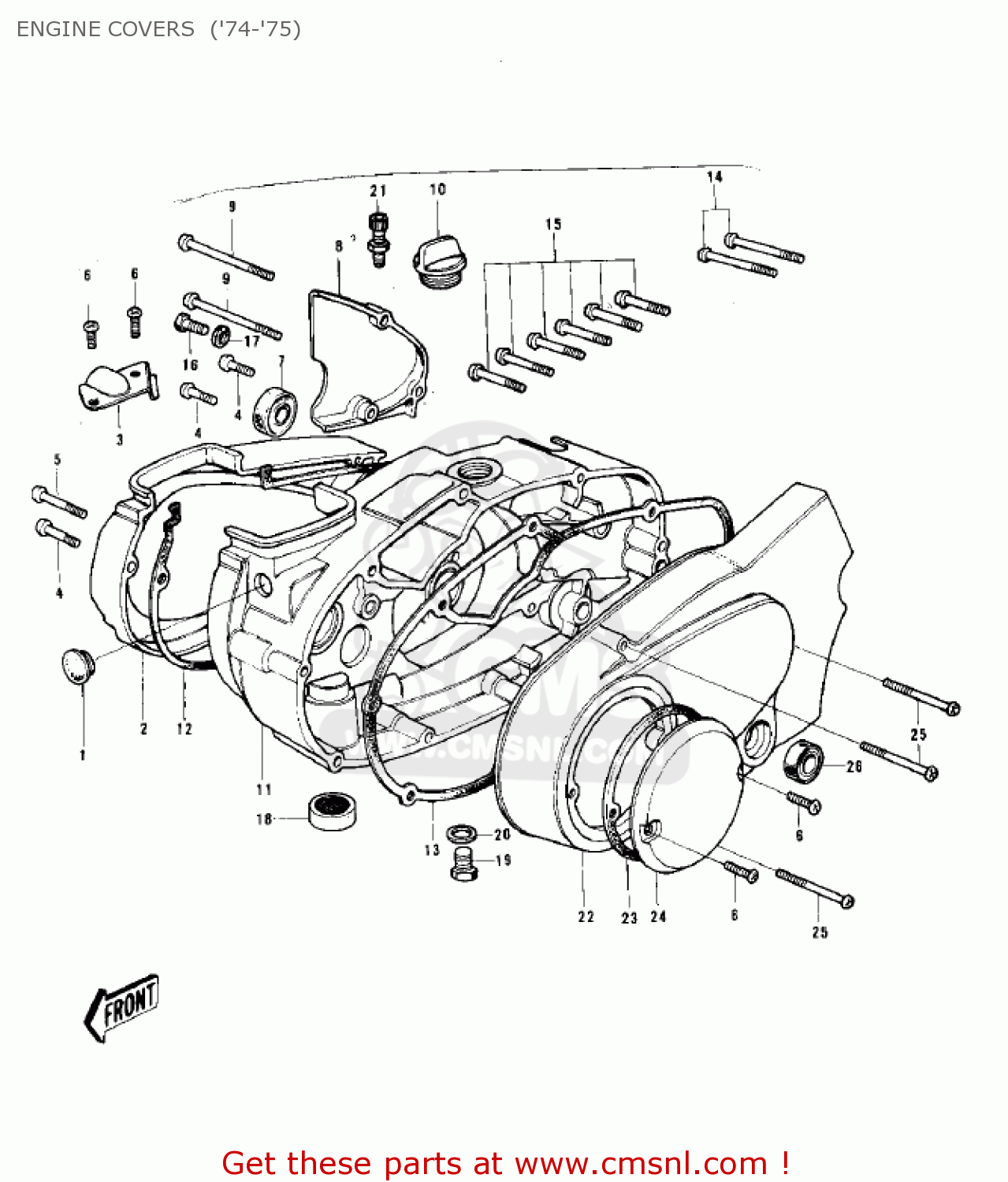

Engine covers ('74-'75) diagram G3TR BUSHMASTER 1969 USA CANADA
ENGINE COVERS ('74-'75) G3TR BUSHMASTER 1969 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
14039001
ref: 1
CAP,RUBBER
€ 3.00
2
140301005
ref: 2
BUFF
COVER,CARB,BARREL
€ 59.50
3
14076005
ref: 3
COVER,CLUTCH CABLE
€ 2.00
4
220B0620
ref: 4
SCREW-PAN HEAD,6X20
€ 2.50
5
220B0635
ref: 5
SCREW-PAN HEAD,6X35
€ 1.00
6
220B0612
ref: 6
SCREW-PAN HEAD,6X12
€ 1.00
7
653B142507
ref: 7
OIL SEAL,TB14257
€ 14.50
8
1403005080
ref: 8
BUFF
COVER,OIL PUMP,BUF
€ 20.50
9
220B0675
ref: 9
SCREW,PAN HEAD,6X75
€ 3.00
10
16115018
ref: 10
PLUG,OIL FILLER
€ 7.00
11
140321017
ref: 11
BUFF
COVER,R.H ENGINE
€ 103.00
12
110601201
ref: 12
GASKET,CARBURETOR COV (NAS)
€ 20.00
13
110601198
ref: 13
GASKET,CLUTCH COVER (NAS)
€ 17.00
14
220B0645
ref: 14
SCREW-PAN HEAD,6X45
€ 2.50
15
220B0630
ref: 15
SCREW-PAN HEAD,6X30
€ 2.50
16
92001121
ref: 16
BOLT,HEX HEAD,6X14
€ 2.50
17
92022077
ref: 17
WASHER,6.1X12X1
€ 0.50
18
16116006
ref: 18
PLUG,25X12
€ 10.50
19
92067001
ref: 19
PLUG-OIL DRAIN
€ 3.00
20
92065058
ref: 20
GASKET, 10,5X16X1 (NAS)
€ 2.50
21
16002012
ref: 21
ADJUSTER-CABLE
€ 7.50
22
140311034
ref: 22
BUFF
GENERATOR COVER
€ 83.50
23
14050002
ref: 23
GASKET-BREAKER COVER (MCA)
€ 9.50
24
1402700779
ref: 24
CR-PLATED
COVER-BRK POINT,CR
€ 16.00
25
220B0640
ref: 25
SCREW-PAN HEAD,6X40
€ 2.00
26
920491249
ref: 26
SEAL-OIL
€ 6.50
