CRANKSHAFT/PISTON /ROTARY VALVE

G3TR BUSHMASTER 1969 USA CANADA

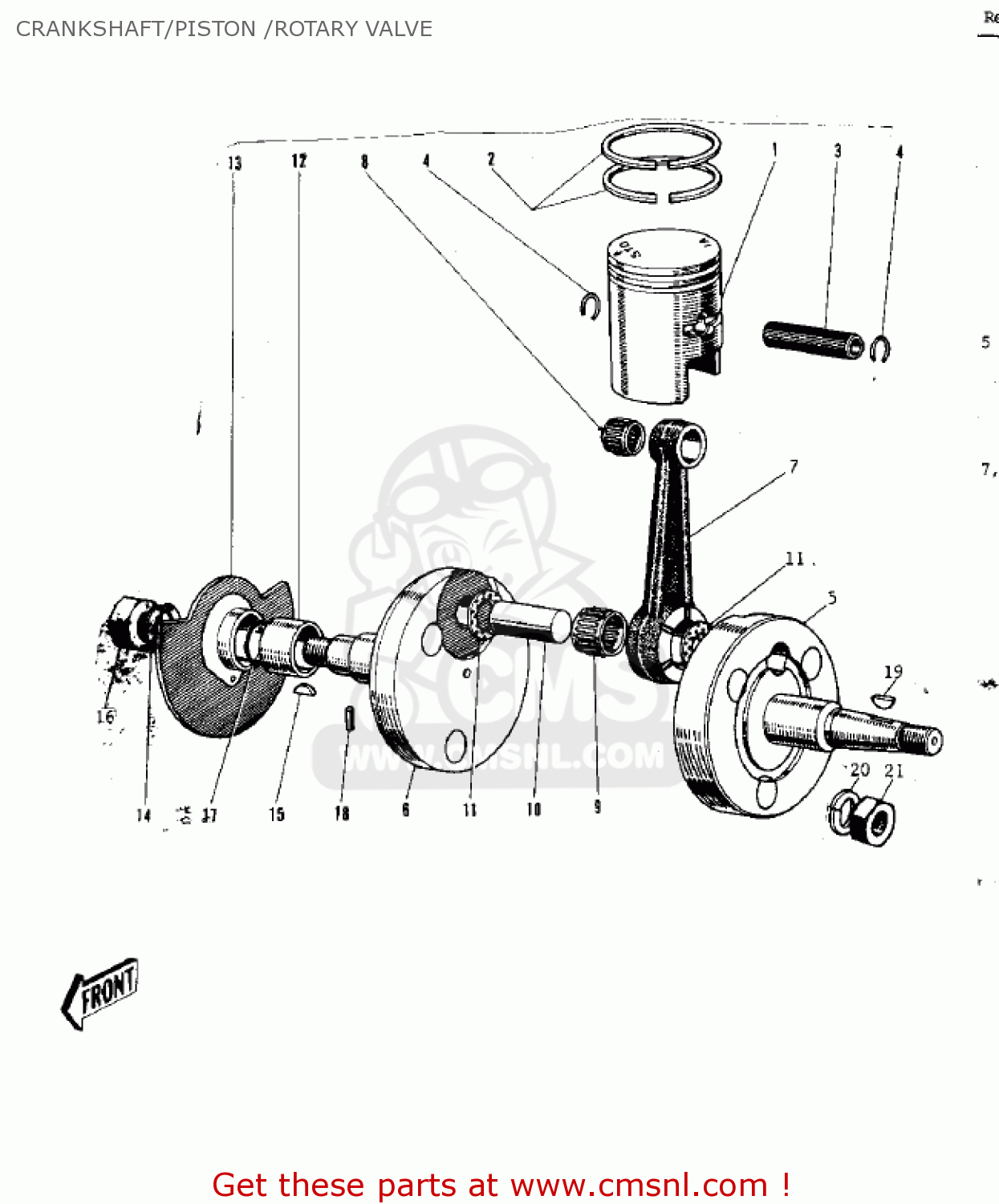

Crankshaft/piston /rotary valve diagram G3TR BUSHMASTER 1969 USA CANADA

CRANKSHAFT/PISTON /ROTARY VALVE G3TR BUSHMASTER 1969 USA CANADA
CRANKSHAFT/PISTON /ROTARY VALVE G3TR BUSHMASTER 1969 USA CANADA
CRANKSHAFT/PISTON /ROTARY VALVE G3TR BUSHMASTER 1969 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
13001015
ref: 1
90CC
PISTON,STD
13001015
€ 29.00
1
13001037
ref: 1
100CC
PISTON,STD
13001037
€ 30.50
2
13008011
ref: 2
90CC
RING SET,STD
13008011
€ 42.00
2
13008023
ref: 2
100CC
RING SET,STD
13008023
€ 47.00
3
13002007
ref: 3
PIN
13002007
€ 13.00
4
92036007
ref: 4
CIRCLIP-PISTON PIN
92036007
€ 2.50
?
13036034
ref: ?
Includes items 5 - 1
CRANK&CONROD ASSY
13036034
€ 317.50
?
13036034
ref: ?
Includes items 5 - 1
CRANK&CONROD ASSY
13036034
€ 317.50
5
13037018
ref: 5
USE WITH 13036-022
CRANKSHAFT,L.H
€ 44.50
5
13037044
ref: 5
USE WITH -034
CRANKSHAFT,L.H
€ 317.50
6
13038012
ref: 6
USE WITH -022
CRANKSHAFT,R.H
€ 54.00
6
13038040
ref: 6
USE WITH -034
CRANKSHAFT,R.H
€ 317.50
?
13044008
ref: ?
Includes item 7 and
CONNECTING ROD SET
13044008
€ 96.00
?
13044019
ref: ?
Includes item 7 and
CONNECTING ROD SET
13044019
€ 317.50
8
13033028
ref: 8
N72KTV030
BEARING-NEEDLE,72KTV0
13033028
€ 13.50
9
13034018
ref: 9
KT192612
BRG-KT202612PC
13034018
€ 6.00
9
13034025
ref: 9
USE WITH -034
BRG-PK192611.8X
13034025
€ 27.50
10
13035008
ref: 10
USE WITH -022
CRANK PIN
13035008
€ 10.00
10
13035025
ref: 10
USE WITH -034
PIN-CRANK
13035025
€ 19.00
11
92025005
ref: 11
USE WITH -022
SHIM,20X34.5X1.0
92025005
€ 4.50
11
92025047
ref: 11
USE WITH -034
SHIM,T=1.0
92025047
€ 7.50
12
92027022
ref: 12
COLLAR-CRANKSHAFT
92027022
€ 7.00
13
12001004
ref: 13
VALVE-ROTARY DISC
12001004
€ 64.50
14
92024003
ref: 14
WASHER,CLAW,12.5X25X0
92024003
€ 2.50
15
92038003
ref: 15
WOODRUFF KEY-PRY PINI
92038003
€ 1.50
16
92015006
ref: 16
NUT,12MM
92015006
€ 3.50
17
670B2016
ref: 17
O RING,16MM
670B2016
€ 1.00
18
610A0408
ref: 18
ROLLER,4X8
610A0408
€ 2.50
19
510A3200
ref: 19
KEY-WOODRUFF
510A3200
€ 1.50
20
461F1000
ref: 20
WASHER-SPRING,10MM
461F1000
€ 0.50
21
314B1000
ref: 21
NUT,10MM
314B1000
€ 0.50
