Genuine unknown Kawasaki Parts delivered quickly!


CRANKCASE ('74-'75)

G3TR BUSHMASTER 1969 USA CANADA

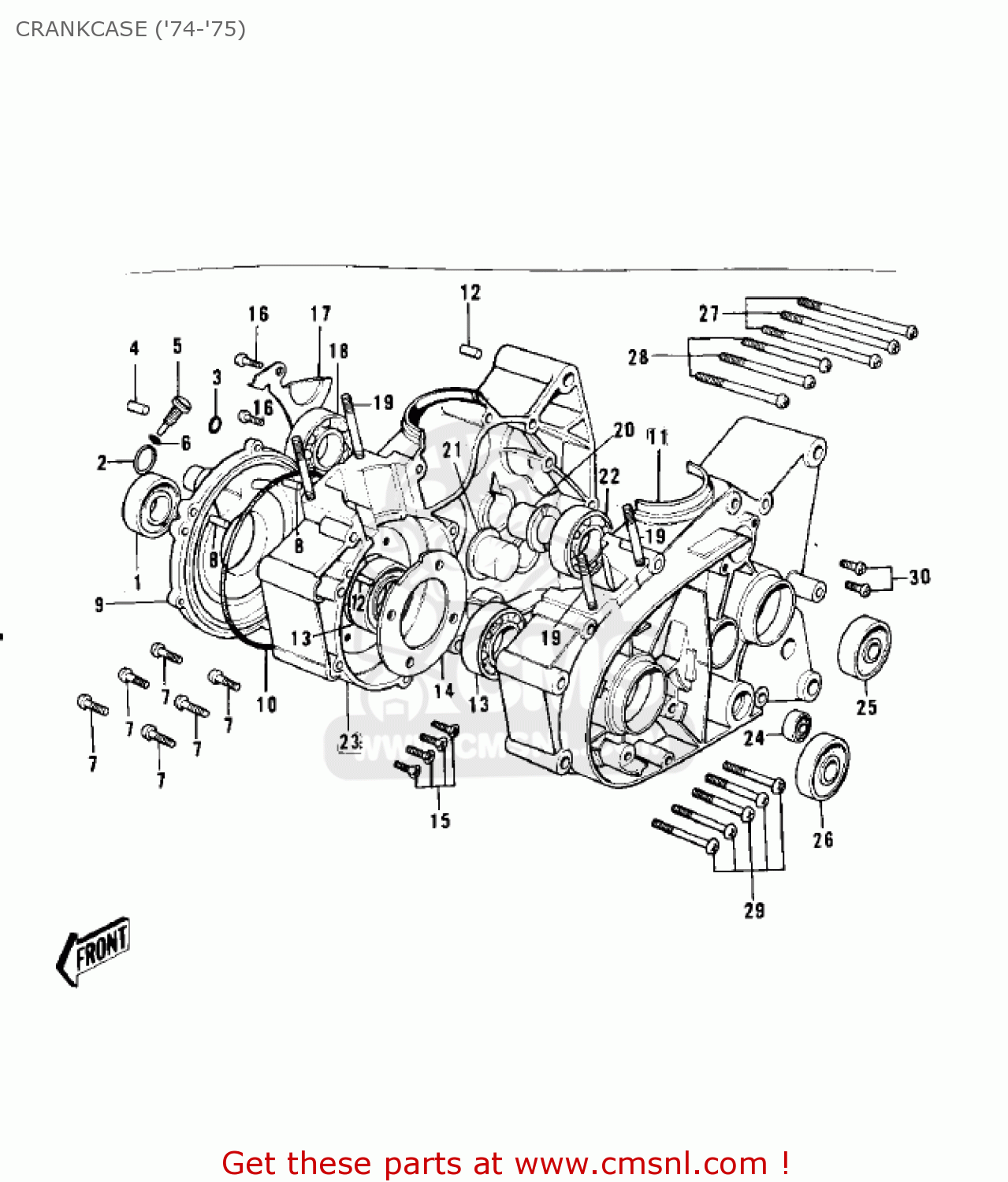

Crankcase ('74-'75) diagram G3TR BUSHMASTER 1969 USA CANADA

CRANKCASE ('74-'75) G3TR BUSHMASTER 1969 USA CANADA
CRANKCASE ('74-'75) G3TR BUSHMASTER 1969 USA CANADA
CRANKCASE ('74-'75) G3TR BUSHMASTER 1969 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
920491250
ref: 1
SEAL-OIL
920491250
€ 12.00
2
670B3026
ref: 2
O RING,26MM
670B3026
€ 3.00
3
92055029
ref: 3
RING-O,7.8X3.5
92055029
€ 2.50
4
92042017
ref: 4
PIN,DOWEL,8X16
92042017
€ 4.00
5
92062004
ref: 5
NOZZLE-OIL INJECTION
92062004
€ 7.00
6
92055011
ref: 6
'O' RING 5MM
92055011
€ 4.00
7
220B0620
ref: 7
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
8
610A0512
ref: 8
ROLLER,5X12
610A0512
€ 3.00
9
14019032
ref: 9
COVER,ROTARY DISC VAL
14019032
€ 70.50
10
92055010
ref: 10
RING-O,100MM
92055010
€ 6.00
11
140021072
ref: 11
CRANKCASE,LH
€ 447.00
12
551A0816
ref: 12
PIN-DOWEL,8X16
551A0816
€ 0.50
13
601B6204
ref: 13
BEARING-BALL,#6204C3
601B6204
€ 8.00
14
14014017
ref: 14
PLATE-POSITION
14014017
€ 3.50
15
221B0616
ref: 15
SCREW-CNTSNK HD,6X16
221B0616
€ 0.50
16
220B0612
ref: 16
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
17
14014008
ref: 17
PLATE-POSITION
14014008
€ 4.00
18
601B6005
ref: 18
BEARING-BALL,#6005C3
601B6005
€ 11.50
19
172G08115
ref: 19
STUD,8X115
172G08115
€ 8.00
20
92028069
ref: 20
L=14 M/M
BUSH-OUTPUT SHAFT
92028069
€ 25.00
21
92028025
ref: 21
L=23.5 M/M
BUSHING,L=23.5
92028025
€ 28.00
22
601B6004
ref: 22
BEARING-BALL,#6004C3
601B6004
€ 10.50
23
14003063
ref: 23
CRANKCASE,R.H
€ 161.00
24
92049004
ref: 24
OIL SEAL SB12205
92049004
€ 6.00
25
92050013
ref: 25
OIL SEAL SC25376
92050013
€ 9.50
26
920491240
ref: 26
SEAL-OIL
920491240
€ 10.50
27
220B0663
ref: 27
UNAVAILABLE IN PRICE BOOK
€ 0.00
28
220B0660
ref: 28
SCREW-PAN HEAD,6X60
220B0660
€ 2.50
29
220B0640
ref: 29
SCREW-PAN HEAD,6X40
220B0640
€ 2.00
30
220B0625
ref: 30
SCREW-PAN HEAD,6X25
220B0625
€ 1.50
