SEAT/CHAIN COVER/CHAIN ('74-'75)

G3TR BUSHMASTER 1969 USA CANADA

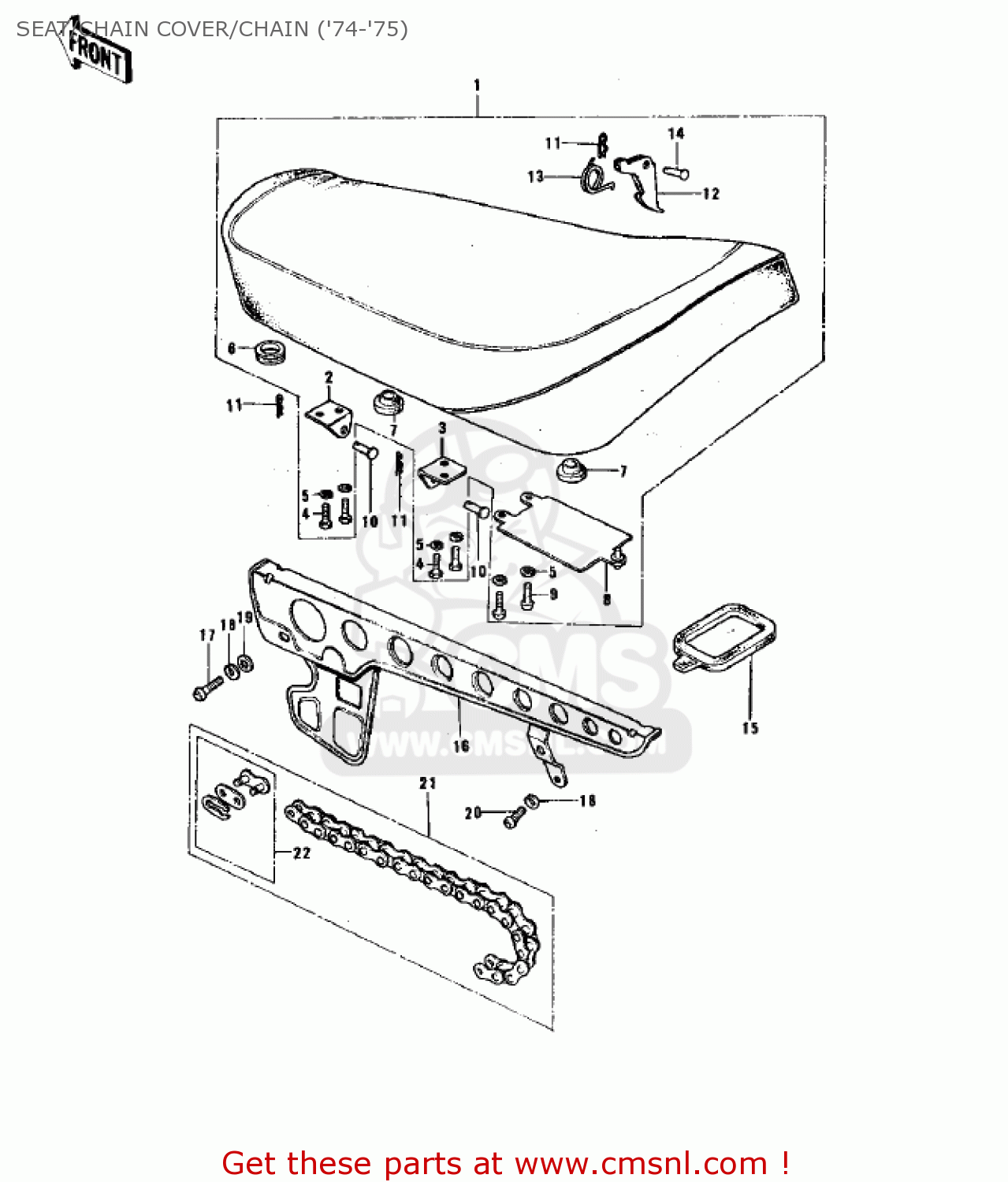

Seat/chain cover/chain ('74-'75) diagram G3TR BUSHMASTER 1969 USA CANADA

SEAT/CHAIN COVER/CHAIN ('74-'75) G3TR BUSHMASTER 1969 USA CANADA

SEAT/CHAIN COVER/CHAIN ('74-'75) G3TR BUSHMASTER 1969 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

53001099
ref: 1

SEAT ASSEMBLY,DUAL

€ 308.50

2

53009024
ref: 2

HINGE,FRONT

€ 15.50

3

53009023
ref: 3

HINGE,REAR

€ 12.00

4

112B0614
ref: 4

BOLT-UPSET 6X14

€ 2.50

4

112B0614
ref: 4

BOLT-UPSET 6X14

€ 2.50

5

461F0600
ref: 5

WASHER-SPRING,6MM

€ 0.50

6

92071056
ref: 6

GROMMET

€ 2.50

7

92075023
ref: 7

DAMPER RUBB-DUAL SEAT

€ 3.00

8

32099011
ref: 8

CASE,MANUAL

€ 11.50

9

220B0408
ref: 9

SCREW-PAN-CROS

€ 0.50

10

92043092
ref: 10
L=14M/M

PIN,BRAKE CABLE FIT

€ 3.00

11

92041003
ref: 11

COTTER

€ 0.50

12

53008017
ref: 12

SEAT HOOK

€ 8.00

13

53012011
ref: 13

SPRING HOOK

€ 8.00

14

92043106
ref: 14
L=24M/M

DUAL SEAT PIVOT PIN

€ 8.00

15

92072039
ref: 15

BAND,L=54MM

€ 12.50

16

36014052
ref: 16

CHAIN CASE

€ 71.00

17

220B0508
ref: 17

SCREW-PAN-CROS,5X8

€ 0.50

18

461F0500
ref: 18

WASHER-SPRING,5MM

€ 0.50

19

410B0500
ref: 19

WASHER-PLAIN-SMALL,5M

€ 0.50

20

220B0512
ref: 20

SCREW-PAN-CROS

€ 0.50

21

695W43104
ref: 21

CHAIN ASSY-DRIVE

€ 19.50

22

920581014
ref: 22

JOINT-CHAIN,EK428-G

€ 3.50
