REAR HUB/BRAKE (G3SS/A/B/C) ('69

G3TR BUSHMASTER 1969 USA CANADA

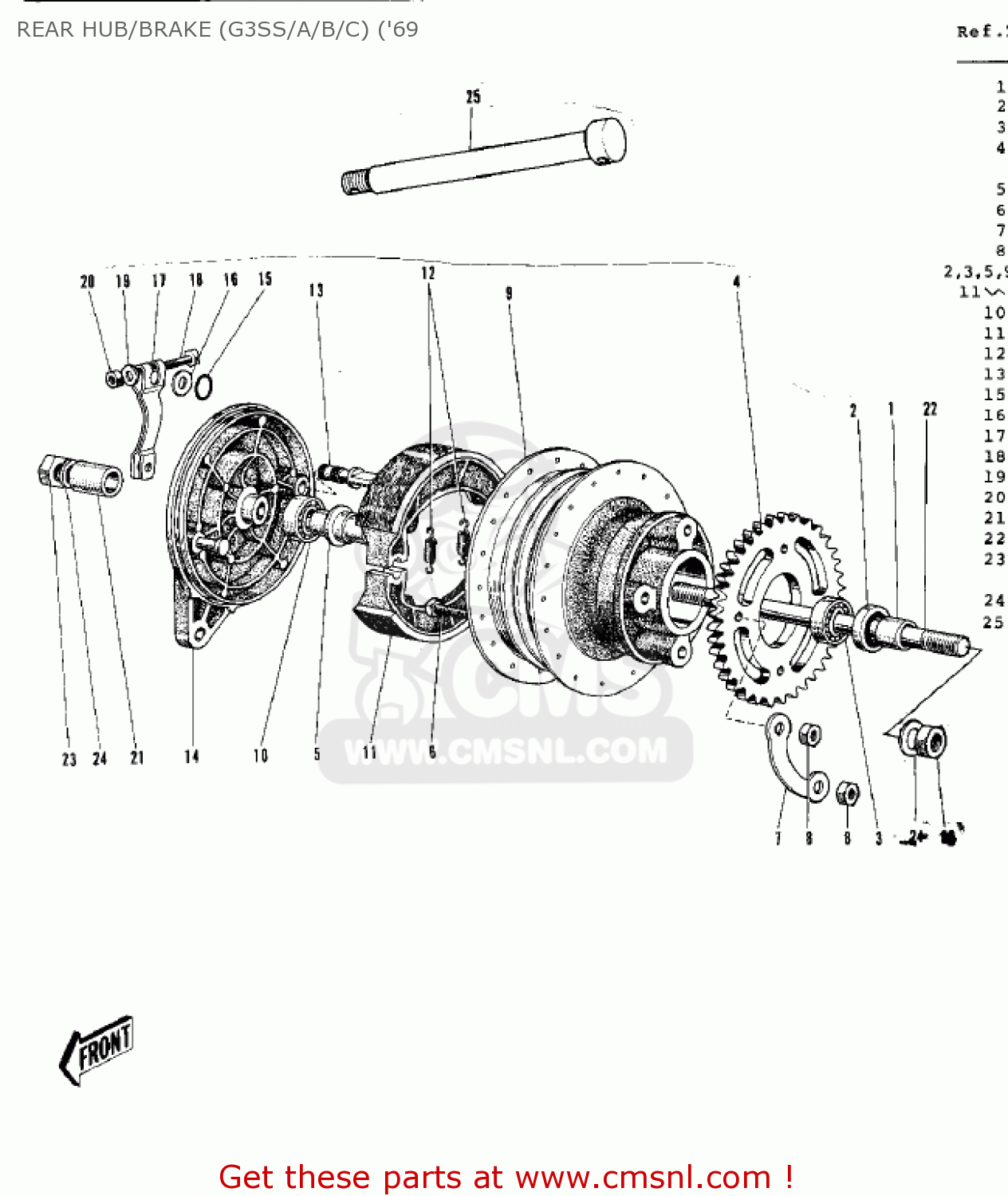

Rear hub/brake (g3ss/a/b/c) ('69 diagram G3TR BUSHMASTER 1969 USA CANADA

REAR HUB/BRAKE (G3SS/A/B/C) ('69 G3TR BUSHMASTER 1969 USA CANADA
REAR HUB/BRAKE (G3SS/A/B/C) ('69 G3TR BUSHMASTER 1969 USA CANADA
REAR HUB/BRAKE (G3SS/A/B/C) ('69 G3TR BUSHMASTER 1969 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
42032005
ref: 1
COLLAR-REAR HUB L.H
42032005
€ 2.00
2
92052001
ref: 2
OIL SEAL-RR BRK DRUM
92052001
€ 6.50
3
601B6301
ref: 3
BEARING-BALL,#6301C3
601B6301
€ 13.00
4
42041051
ref: 4
REAR SPROCKET 42T
€ 37.50
4
42041020
ref: 4
REAR SPROCKET 37T
42041020
€ 34.50
5
42010003
ref: 5
COLLAR,L=85
42010003
€ 6.50
6
92001021
ref: 6
BOLT-REAR SPROCKET
92001021
€ 3.50
7
92088003
ref: 7
WASHER,SPROCKET LOCK
92088003
€ 3.00
8
311B0800
ref: 8
NUT,8MM
311B0800
€ 0.50
?
42005006
ref: ?
Includes items 2, 3,
DRUM ASSY-REAR BRAKE
€ 105.00
?
42006014
ref: ?
Includes items 11 -
PANEL ASSY-REAR BRAKE
€ 47.50
10
601B6301Z
ref: 10
BEARING-BALL,#6301ZC3
601B6301Z
€ 15.00
11
410481085
ref: 11
SHOE-BRAKE (NAS)
410481085
€ 13.00
12
920811766
ref: 12
SPRING,BRAKE SHOE
920811766
€ 5.50
13
41050018
ref: 13
CAM-BRAKE
41050018
€ 18.00
15
92055004
ref: 15
RING-O,BRAKE CAM
92055004
€ 3.00
16
41052001
ref: 16
WASHER-BRAKE CAM SHT
41052001
€ 1.00
17
41053002
ref: 17
LEVER-BRAKE CAM
41053002
€ 11.50
18
112G0630
ref: 18
BOLT-UPSET
112G0630
€ 1.00
19
410B0600
ref: 19
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
20
311B0600
ref: 20
NUT,6MM
311B0600
€ 0.50
21
42032006
ref: 21
COLLAR-REAR HUB R.H
42032006
€ 7.00
22
42031009
ref: 22
AXLE,REAR
€ 24.00
23
314G1200A
ref: 23
OLD JIS THREAD
NUT,12MM
€ 2.50
23
314B1200
ref: 23
I.S.O. THREAD
NUT-HEX-FINE
314B1200
€ 1.00
24
410B1200
ref: 24
WASHER-PLAIN-SMALL,12
410B1200
€ 0.50
25
410681091
ref: 25
G3SS-B
AXLE,12X206
410681091
€ 24.00
