CYLINDER HEAD/CYLINDER ('74-'75)

G3TR BUSHMASTER 1969 USA CANADA

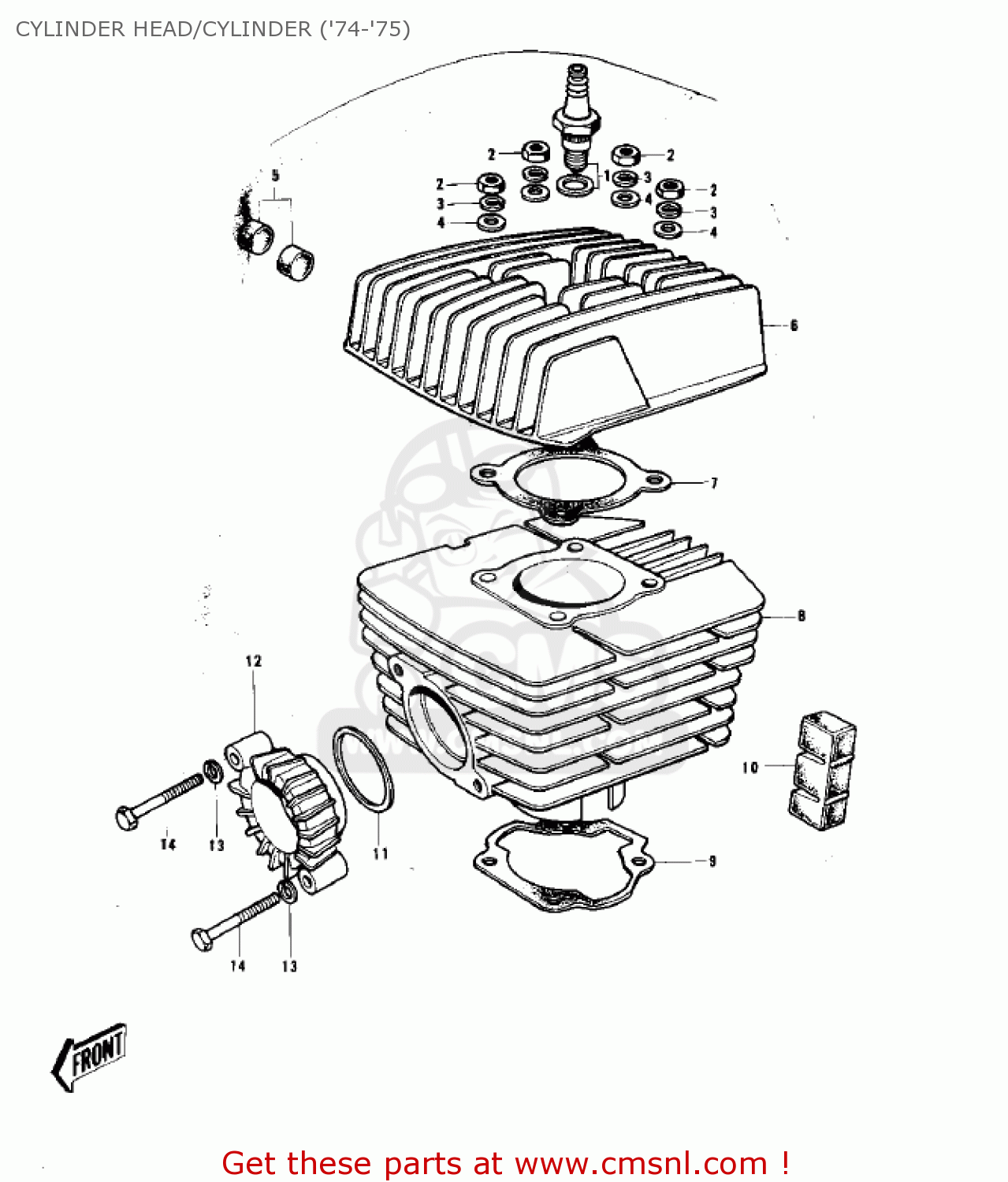

Cylinder head/cylinder ('74-'75) diagram G3TR BUSHMASTER 1969 USA CANADA

CYLINDER HEAD/CYLINDER ('74-'75) G3TR BUSHMASTER 1969 USA CANADA

CYLINDER HEAD/CYLINDER ('74-'75) G3TR BUSHMASTER 1969 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

92070010
ref: 1

B8HC (NGK SPARKPLUG)

€ 6.50

2

311B0800
ref: 2

NUT,8MM

€ 0.50

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

410B0800
ref: 4

WASHER-PLAIN-SMALL,8M

€ 0.50

5

92075074
ref: 5

DAMPER

€ 3.00

6

11001075
ref: 6

CYLINDER HEAD

€ 87.50

7

11004015
ref: 7

GASKET-HEAD,CYLINDER (NAS)

€ 6.00

7

11004033
ref: 7
G3SSE

GASKET-HEAD,CYLINDER (NAS)

€ 9.00

8

11005103
ref: 8

CYLINDER

€ 813.00

8

110051027
ref: 8
G3SSE

CYLINDER-ENGINE,BLACK

€ 544.00

9

110601200
ref: 9

GASKET,CYLINDER BASE (NAS)

€ 5.50

10

92075170
ref: 10

DAMPER,CYLINDER

€ 3.00

11

110091992
ref: 11

GASKET,EXHAUST PIPE (NAS)

€ 5.50

12

18069004
ref: 12

HOLDER-EXHAUST PIPE

€ 24.00

13

461F0600
ref: 13

WASHER-SPRING,6MM

€ 0.50

14

110G0650
ref: 14

BOLT,HEX HEAD,6X50

€ 1.00
