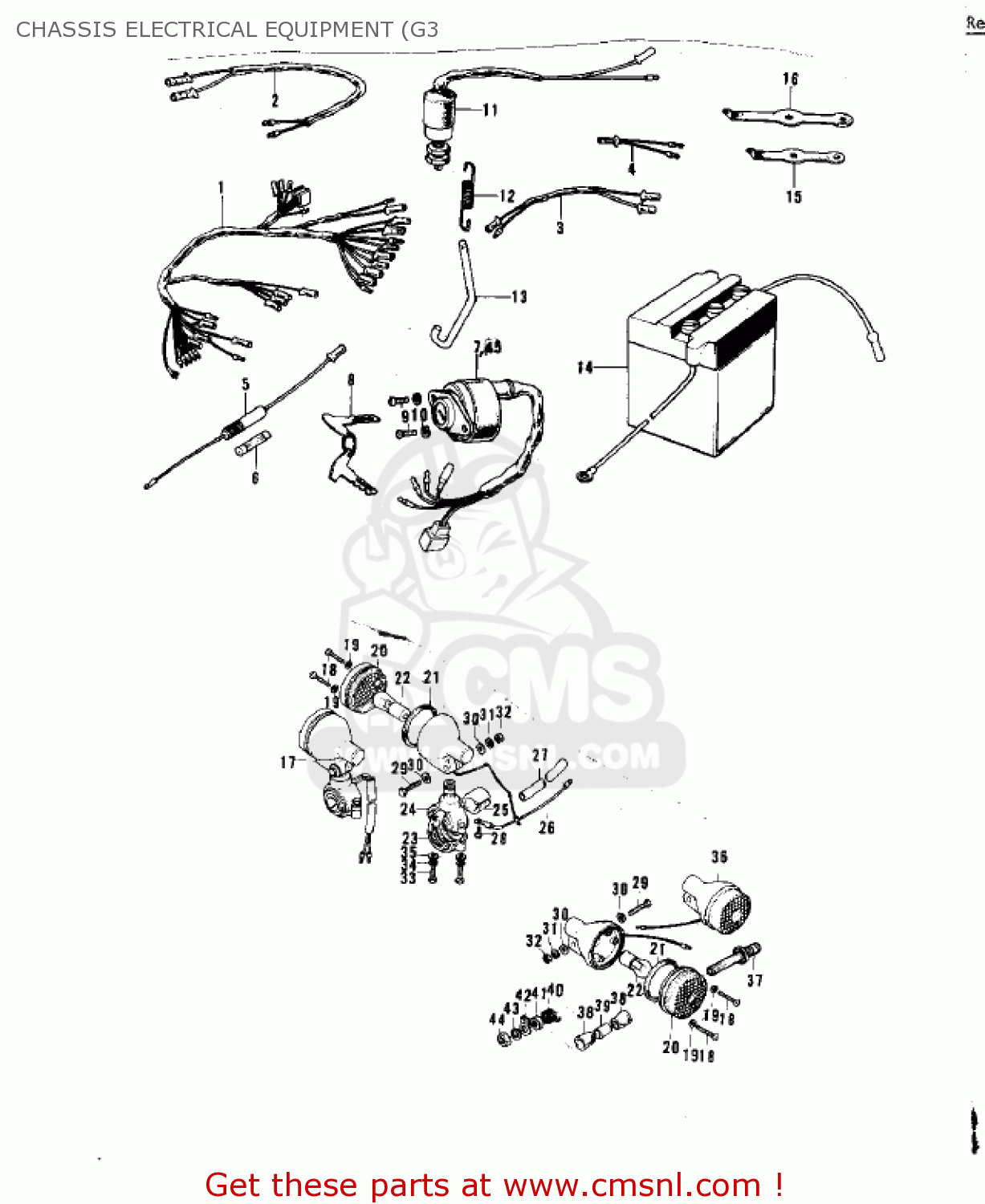

CHASSIS ELECTRICAL EQUIPMENT (G3

ref

part #

description

quantity

1

26001079
ref: 1

WIRING HARNESS,MAIN

€ 0.00

2

26002007
ref: 2

WIRING HARNESS-REAR

€ 2.50

3

26011042
ref: 3

WIRE-LEAD

€ 3.00

4

26011058
ref: 4

WIRE-LEAD

€ 4.00

?

26004008
ref: ?
Includes items 5 and

FUSE-ASSY

€ 13.00

6

26006003
ref: 6

FUSE 10A

€ 3.00

?

270051016
ref: ?
Includes items 7 and

SWITCH ASSY,IGNITION

€ 59.50

8

2700803421
ref: 8

KEY SET,#321

€ 22.00

8

2700803422
ref: 8

KEY SET,#322

€ 37.50

8

2700803423
ref: 8

KEY SET,#323

€ 31.00

8

2700803424
ref: 8

KEY SET,#324

€ 39.50

8

2700803435
ref: 8

KEY SET,#235

€ 18.50

8

2700803436
ref: 8

KEY SET,#236

€ 18.50

8

2700803437
ref: 8

KEY SET,#237

€ 20.50

8

2700803438
ref: 8

KEY SET,#238

€ 37.50

8

2700803439
ref: 8

KEY SET,#239

€ 33.50

9

220B0512
ref: 9

SCREW-PAN-CROS

€ 0.50

10

461F0500
ref: 10

WASHER-SPRING,5MM

€ 0.50

11

27010018
ref: 11

SWITCH-BRAKE LAMP

€ 23.00

12

27011006
ref: 12

SPRING-BRAKE LAMP SW

€ 3.50

13

27012005
ref: 13

HOOK-BRK LAMP SW SPRG

€ 2.50

14

K26012020
ref: 14

BATTERY,YUA,6N4-2A-5

€ 55.50

15

92072031
ref: 15

BAND,MIDDLE

€ 3.00

16

92072032
ref: 16

BAND,LONG

€ 3.00

17

23037005
ref: 17

LAMP ASY-FR TURN SIG

€ 53.50

18

220E0420A
ref: 18

SCREW-PAN HEAD,4X20

€ 2.50

19

23058002
ref: 19

WASHER,PLAIN,4MM

€ 2.00

20

230481001
ref: 20

LENS-SIGNAL LAMP,045-

€ 10.50

21

23050003
ref: 21

GASKET,SIGNAL LAMP (NAS)

€ 3.50

22

92069056
ref: 22

BULB,6V 21CP

€ 4.50

23

230511013
ref: 23

BRACKET-SIGNAL LAMP,F

€ 11.50

24

230511004
ref: 24

BRACKET-SIGNAL LAMP,F

€ 23.00

25

23066003
ref: 25

DAMPER

€ 3.50

26

26011061
ref: 26

WIRE-LEAD,SIGNAL LAMP

€ 2.50

27

26009004
ref: 27

COVER-WIRING HARNESS

€ 1.00

28

220B0305A
ref: 28

SCREW-PAN HEAD,3X5

€ 1.00

29

112G0630
ref: 29

BOLT-UPSET

€ 1.00

30

410B0600
ref: 30

WASHER-PLAIN-SMALL,6M

€ 0.50

31

461F0600
ref: 31

WASHER-SPRING,6MM

€ 0.50

32

311B0600
ref: 32

NUT,6MM

€ 0.50

33

110N0516
ref: 33

BOLT,5X16

€ 2.00

34

461F0500
ref: 34

WASHER-SPRING,5MM

€ 0.50

35

410D0500
ref: 35

WASHER-PLAIN,5MM

€ 1.50

36

23040033
ref: 36

LAMP-SIGNAL

€ 59.00

37

23051041
ref: 37

TURN SIGNAL BRACKET

€ 34.50

38

92075148
ref: 38

DAMPER RUBBER

€ 2.00

39

92027168
ref: 39

COLLAR

€ 2.50

40

92081111
ref: 40

SPRING

€ 2.00

41

92022235
ref: 41

WASHER-PLAIN

€ 3.00

42

92037087
ref: 42

CLAMP-RR SIGNAL LAMP

€ 2.50

43

461F1200
ref: 43

WASHER-SPRING,12MM

€ 0.50

44

315B1200
ref: 44

NUT,12MM

€ 0.50

45

270081016
ref: 45

KEY,BLANK

€ 6.50

45

270081017
ref: 45

KEY,BLANK

€ 7.00

45

270081018
ref: 45

KEY-LOCK,BLANK,STEERI

€ 9.50

45

270081019
ref: 45

KEY-LOCK,BLANK,STEERI

€ 9.50

all assemblies
