TAILLIGHT (F9-A)
F9C 1975 USA CANADA

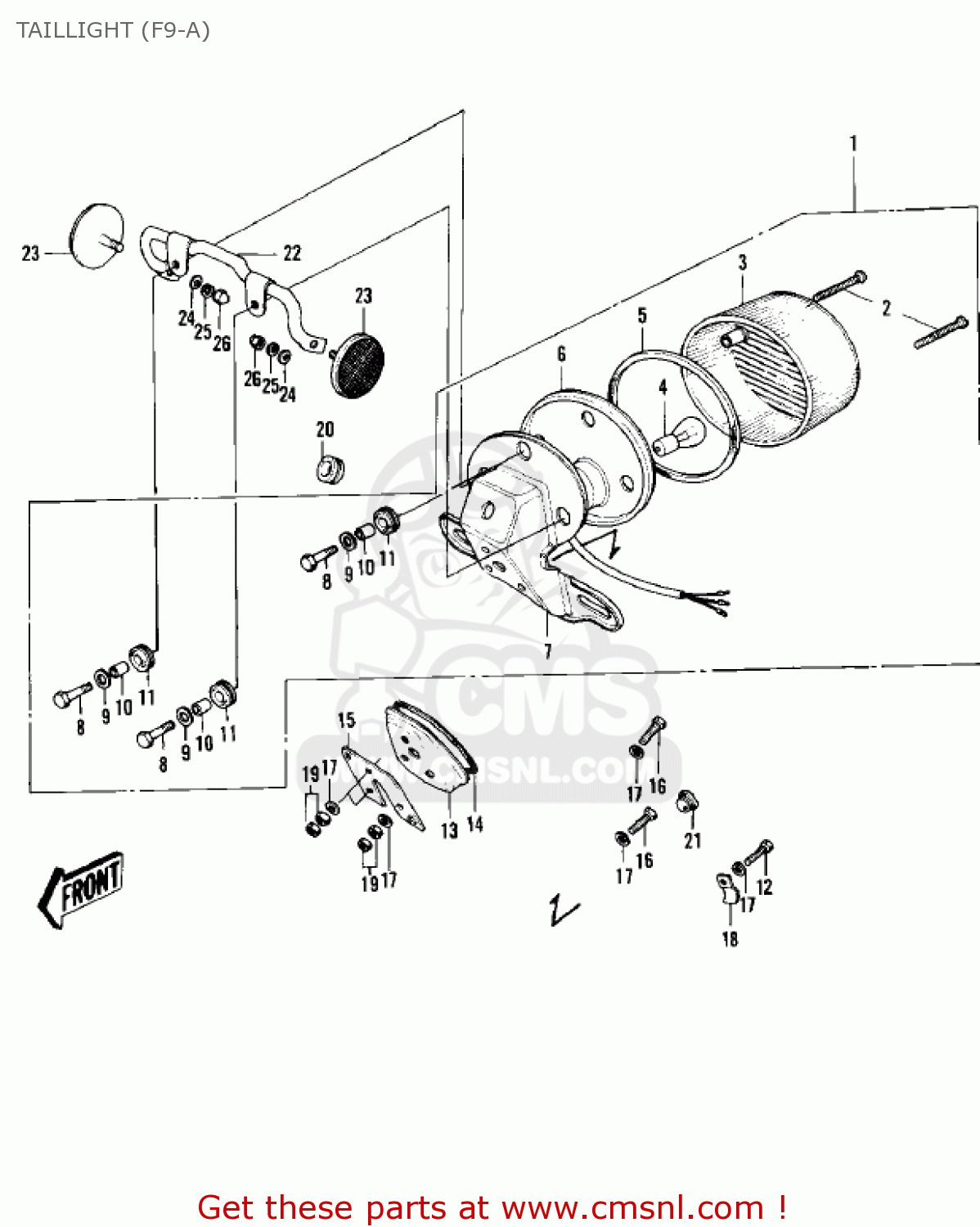

Taillight (f9-a) diagram F9C 1975 USA CANADA
TAILLIGHT (F9-A) F9C 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
2302403521
ref: 1
TAIL LAMP ASSEMBLY,FLAT BLACK
€ 236.50
2
220E0435A
ref: 2
SCREW-PAN HEAD,4X35
€ 4.50
3
23026023
ref: 3
LENS,TAIL LAMP
€ 91.50
4
92069028
ref: 4
17 5.3W
BULB 6V 17/5.3W
€ 4.50
5
23028018
ref: 5
GASKET,TAIL LAMP LENS (NAS)
€ 6.50
6
23027030
ref: 6
BODY-COMP-TAIL LAMP
€ 76.00
6
23027030
ref: 6
BODY-COMP-TAIL LAMP
€ 76.00
7
2303601921
ref: 7
BKT-LICENSE PLT,BLACK
€ 62.00
8
112B0622
ref: 8
BOLT, 6X22
€ 2.50
9
92022125
ref: 9
WASHER,6.5X20X1.6
€ 1.00
10
92027129
ref: 10
COLLAR,6.8X10X8.5
€ 3.00
11
92075076
ref: 11
DAMPER
€ 3.00
12
920011456
ref: 12
BOLT,6X55
€ 3.00
13
35031006
ref: 13
TAIL LAMP STAY
€ 20.00
14
35016006
ref: 14
TAIL DAMPER,RUBBER
€ 17.00
15
35039005
ref: 15
8T
DAMPER,TAIL LAMP
€ 6.50
16
112G0640
ref: 16
BOLT-UPSET,6X40
€ 2.50
17
92022125
ref: 17
WASHER,6.5X20X1.6
€ 1.00
18
35024002
ref: 18
CLAMP,WIRING HARNESS
€ 2.00
19
312B0600
ref: 19
NUT,6MM
€ 0.50
20
92071019
ref: 20
GROMMET,10MM
€ 2.50
21
92074025
ref: 21
PLUG,RUBBER
€ 1.00
22
28013005
ref: 22
BRACKET-REFLECTOR
€ 13.00
23
28012008
ref: 23
REFLECTOR-REFLEX,REAR
€ 8.50
24
411B0500
ref: 24
WASHER-PLAIN,5MM
€ 0.50
25
461F0500
ref: 25
WASHER-SPRING,5MM
€ 0.50
26
322N0500
ref: 26
NUT-CAP,5MM
€ 2.00
