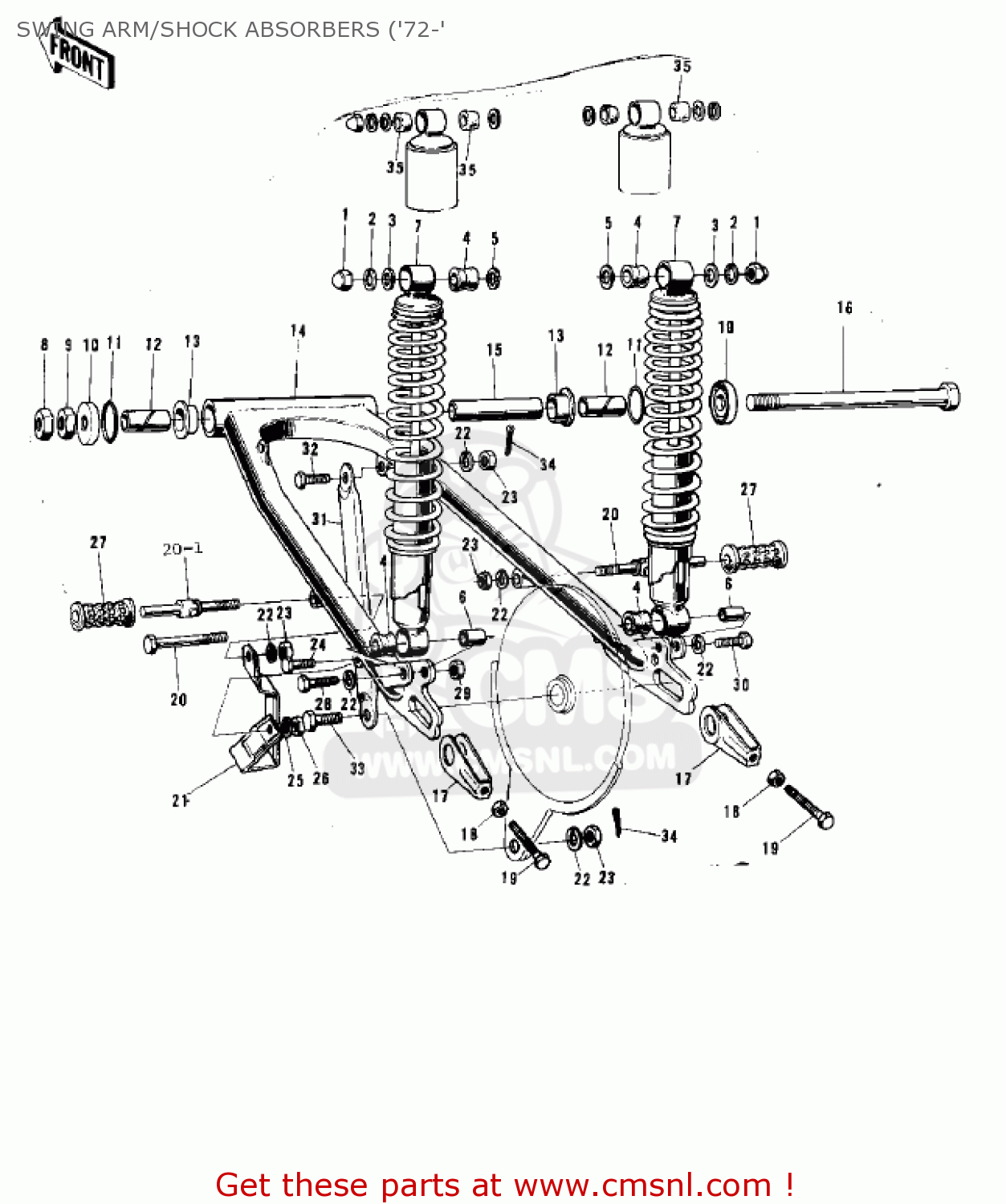

SWING ARM/SHOCK ABSORBERS ('72-'

ref

part #

description

quantity

1

92020003
ref: 1

NUT-SHOCK ABSORBER

€ 4.00

2

461F1000
ref: 2

WASHER-SPRING,10MM

€ 0.50

3

92022044
ref: 3
I.D-10.5

WASHER,10.5X26X2.3

€ 2.50

4

45017005
ref: 4

BUSH-SHOCK ABSORBER

€ 2.50

4

920751020
ref: 4
F9A

DAMPER,SHOCKABSORBER

€ 3.00

5

410B1400
ref: 5
I.D-12.5

410B1400

6

45016003
ref: 6

COLLAR,SHOCKABSORBER

€ 12.50

?

45014069
ref: ?
Includes items 4, 6,

SHOCK ABSORBER-REAR

€ 71.50

?

45014076
ref: ?
Includes items 4, 6,

SHOCK ABSORBER,REAR

€ 243.00

8

315B1400
ref: 8

NUT,14MM

€ 1.00

9

314B1400
ref: 9

NUT,14MM

€ 1.00

10

33035004
ref: 10

CAP-SWING ARM

€ 2.00

11

671B2530
ref: 11

O RING,30MM

€ 3.00

12

33034013
ref: 12
L-43 M/M

SLEEVE-SWING ARM,SHRT

€ 20.50

13

33033009
ref: 13

BUSHING,SWING ARM

€ 57.00

14

33001028
ref: 14

ARM-SWING

€ 94.50

15

33034012
ref: 15
L-117.5 M/M

SLEEVE-SWING ARM,LONG

€ 7.50

16

33032025
ref: 16

SHAFT-SWING ARM PIVOT

€ 9.00

17

33040043
ref: 17

ADJUSTER-CHAIN

€ 20.50

18

312B0800
ref: 18

NUT,8MM

€ 0.50

19

920011399
ref: 19

BOLT,8X50

€ 6.00

20

920011254
ref: 20
NOT REQUIRED FOR 340

BOLT,HEX HEAD,10X50

€ 2.50

?

34030001
ref: ?
Includes items 20 -

BAR SET,RR,FOOTREST

€ 7.00

20-1

34027013
ref: 20-1
OPTION

BAR-REAR FOOTREST

€ 7.00

21

55020009
ref: 21

GUARD-CHAIN

€ 9.00

23

314B1000
ref: 23

NUT,10MM

€ 0.50

24

115B0832
ref: 24

BOLT-SMALL UPSET

€ 1.50

25

461F0800
ref: 25

WASHER-SPRING,8MM

€ 0.50

26

311B0800
ref: 26

NUT,8MM

€ 0.50

27

92076008
ref: 27
OPTION

RUBBER-REAR FOOTREST

€ 5.50

28

113N1045
ref: 28

BOLT HEX HEAD 10X45

€ 6.00

29

315B1000
ref: 29

NUT,10MM

€ 0.50

30

113N1035
ref: 30

BOLT-HEX HEAD,10X35

€ 6.00

31

43007018
ref: 31

TORQUE LINK,REAR BRK

€ 8.50

32

92003017
ref: 32

BOLT-TRQ LINK 10X25

€ 3.50

33

92003003
ref: 33

BOLT-HEX HEAD,10X32

€ 4.00

34

550D2015
ref: 34

PIN-COTTER,2.0X15

€ 1.00

35

45017001
ref: 35
F9A

DAMPER,SHOCKABSORBER

€ 4.00

all assemblies
