REAR HUB/BRAKE/CHAIN ('74-'75 F9

F9C 1975 USA CANADA

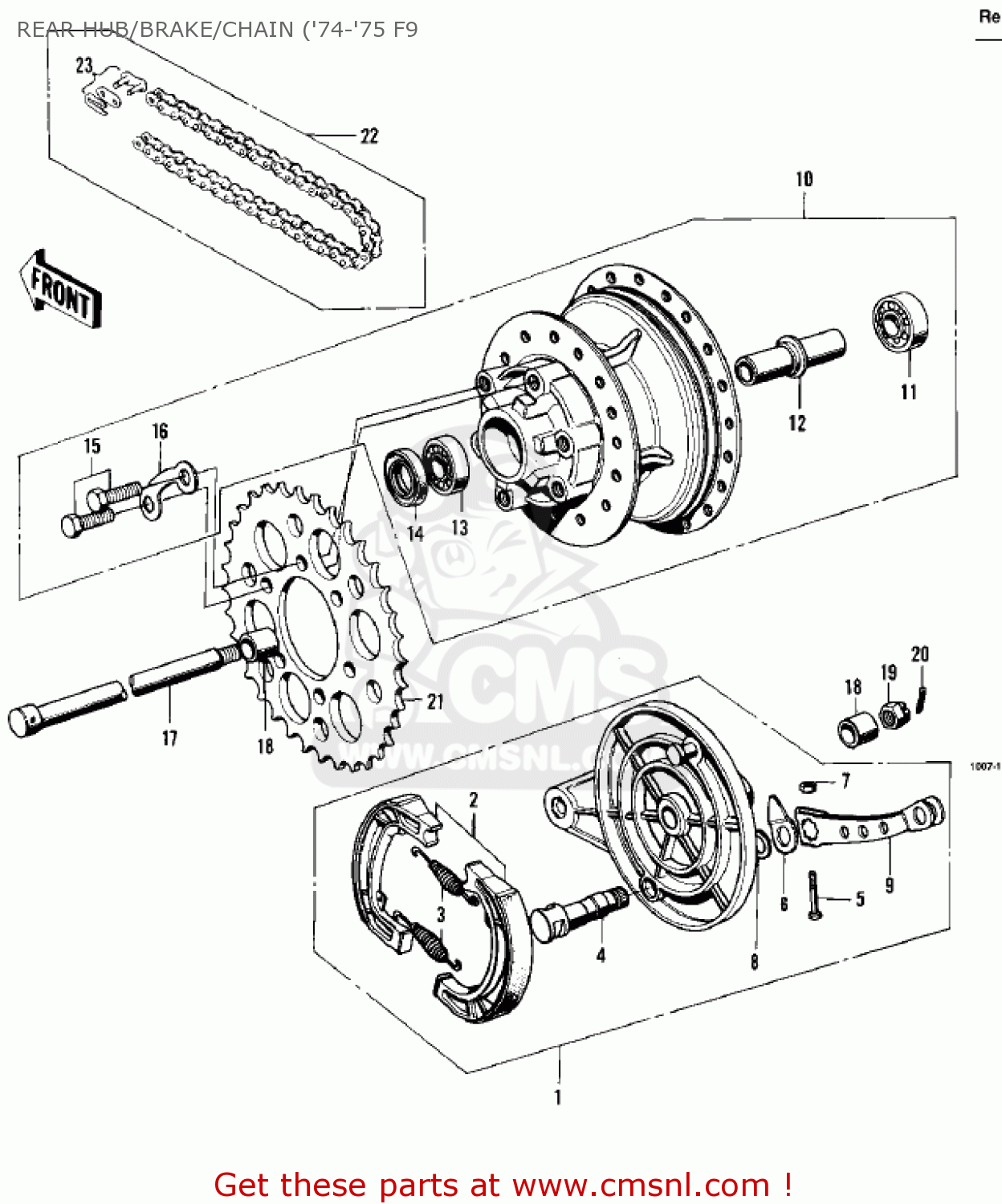

Rear hub/brake/chain ('74-'75 f9 diagram F9C 1975 USA CANADA

REAR HUB/BRAKE/CHAIN ('74-'75 F9 F9C 1975 USA CANADA

REAR HUB/BRAKE/CHAIN ('74-'75 F9 F9C 1975 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

4200604280
ref: 1

REAR BRAKE PANEL ASSEMBLY,BUFF

€ 358.00

2

42019011
ref: 2
F9-B

SHOE,BRAKE (MCA)

€ 18.50

2

42019011
ref: 2
F9-C

SHOE,BRAKE (MCA)

€ 18.50

3

42020004
ref: 3

SPRING-BRAKE SHOE

€ 5.50

4

42026016
ref: 4

CAM SHAFT,REAR BRAKE

€ 7.00

5

112G0640
ref: 5

BOLT-UPSET,6X40

€ 2.50

6

41085006
ref: 6

REAR BRAKE PANEL INDICATOR

€ 13.50

7

41072007
ref: 7

NUT,6MM

€ 2.50

8

41051001
ref: 8

DUST SHIELD-BRAKE CAM

€ 2.50

9

42029037
ref: 9

LEVER,REAR BRAKE CAM

€ 27.50

9

42029037
ref: 9

LEVER,REAR BRAKE CAM

€ 27.50

10

4200503980
ref: 10

REAR BRAKE DRUM ASSEMBLY,BUFF

€ 705.00

11

601B6303Z
ref: 11

BEARING-BALL,#6303ZC3

€ 17.50

12

42010015
ref: 12
L=116 MM

SPACER-RR HUB BEARING

€ 9.50

13

601B6303
ref: 13

BEARING-BALL,#6303C3

€ 24.00

14

654A254708
ref: 14

OIL SEAL-FRONT AXLE

€ 17.00

15

92001087
ref: 15

BOLT-HEX HEAD,10X25

€ 3.00

16

92088007
ref: 16

WASHER,LOCK

€ 8.00

17

42031036
ref: 17

AXLE,REAR

€ 61.00

18

42032031
ref: 18

COLLAR-REAR AXLE

€ 7.00

19

42045014
ref: 19

NUT CASTLE, 16M/M

€ 6.50

20

550D4035
ref: 20

PIN-COTTER,4.0X35

€ 1.00

21

42041111
ref: 21
STD

REAR SPROCKET 41T

€ 52.50

21

42041112
ref: 21
OPTION

REAR SPROCKET 43T

€ 52.00

21

42041113
ref: 21
OPTION

REAR SPROCKET 45T

€ 75.00

21

42041114
ref: 21
OPTION

REAR SPROCKET,47T

€ 254.50

22

695X5292
ref: 22
SPECIAL GREASE

CHAIN ASSY-DRIVE 92L

€ 31.00

23

92058006
ref: 23

JOINT-DRIVE CHAIN

€ 4.00
