FOOTRESTS/STAND/BRAKE PEDAL ('72
F9C 1975 USA CANADA

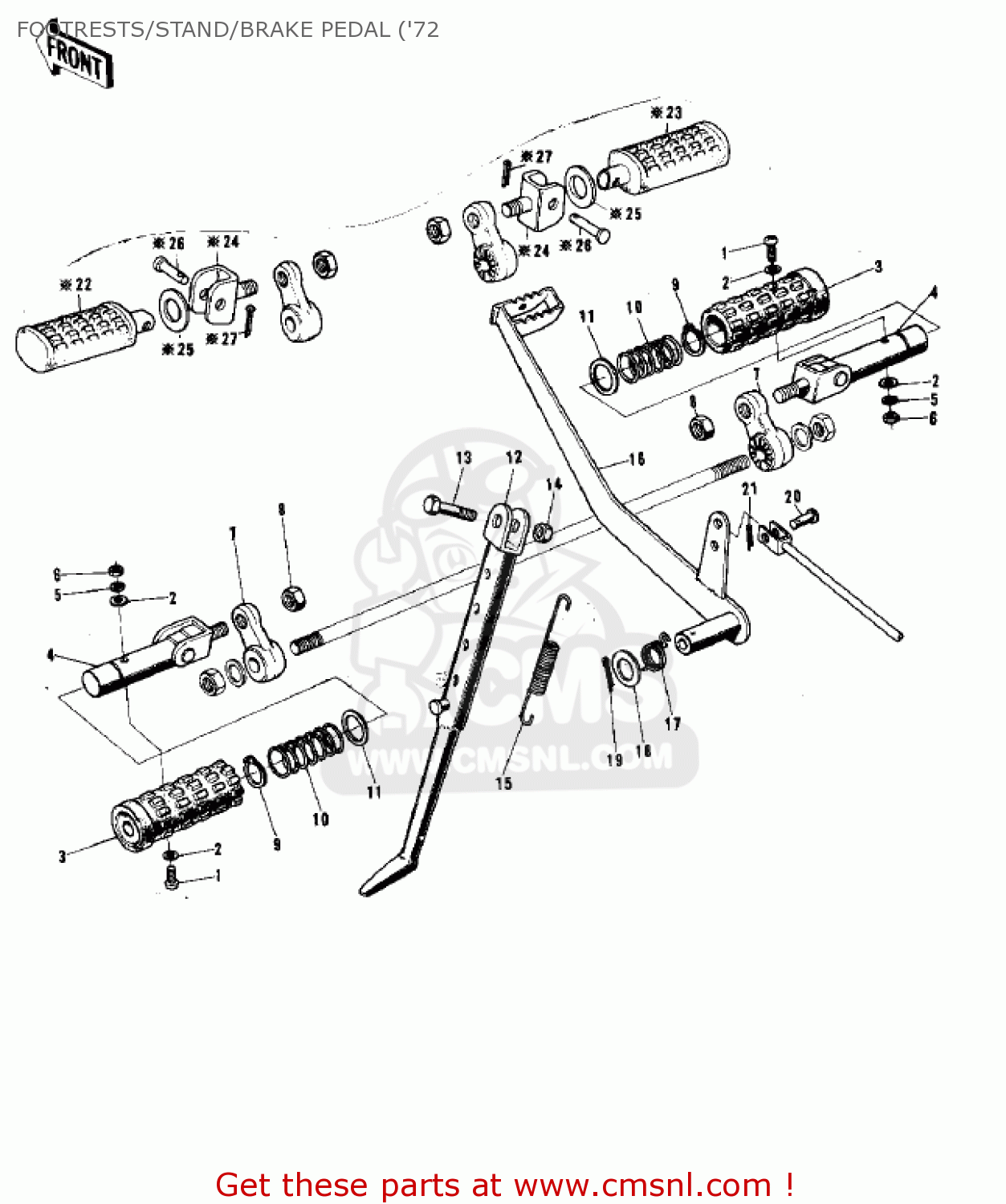

Footrests/stand/brake pedal ('72 diagram F9C 1975 USA CANADA
FOOTRESTS/STAND/BRAKE PEDAL ('72 F9C 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0540
ref: 1
SCREW-PAN-CROS
€ 2.00
2
410B0500
ref: 2
WASHER-PLAIN-SMALL,5M
€ 0.50
3
92076023
ref: 3
RUBBER-FOOTREST
€ 12.00
4
34003032
ref: 4
BAR-FOOTREST
€ 28.00
5
461F0500
ref: 5
WASHER-SPRING,5MM
€ 0.50
6
311B0500
ref: 6
NUT-HEX
€ 0.50
7
34007009
ref: 7
BRACKET-FOOTREST BAR
€ 17.00
8
92019009
ref: 8
NUT,LOCK,12MM
€ 5.00
9
480J1600
ref: 9
CIRCLIP-TYPE-C,16MM
€ 2.50
10
34006002
ref: 10
SPRING-FOOTREST PEG
€ 3.00
11
92022049
ref: 11
WASHER-FOLDING PEG
€ 2.00
12
34024025
ref: 12
STAND-SIDE
€ 34.50
13
920011252
ref: 13
BOLT,HEX HEAD,10X35
€ 3.50
14
315B1000
ref: 14
NUT,10MM
€ 0.50
15
34023005
ref: 15
SPRING-MAIN STAND
€ 6.50
16
4300103610
ref: 16
PEDAL-BRAKE,BLACK
€ 38.00
17
43005013
ref: 17
SPRING-BRAKE PEDAL
€ 6.00
18
92022085
ref: 18
WASHER,15.3X24X1.2
€ 2.50
19
550D3030
ref: 19
PIN-COTTER,3.0X30
€ 1.50
20
92043034
ref: 20
PIN-R BRK CABLE JOINT
€ 7.00
21
550D2015
ref: 21
PIN-COTTER,2.0X15
€ 1.00
22
340271114
ref: 22
*
STEP-ASSY,FR,LH
€ 24.00
23
340271115
ref: 23
*
STEP-ASSY,FR,RH
€ 24.00
24
3402100110
ref: 24
*
HOLDER-FOOT REST,LH
€ 14.50
25
92022204
ref: 25
*
WASHER-PLAIN
€ 0.50
26
92043080
ref: 26
*
PIN-FOOTREST BAR FIT
€ 3.50
27
550D2515
ref: 27
*
PIN COTTER,295X15
€ 0.50
