FRONT HUB/BRAKE ('72-'73 F9/F9-A
F9C 1975 USA CANADA

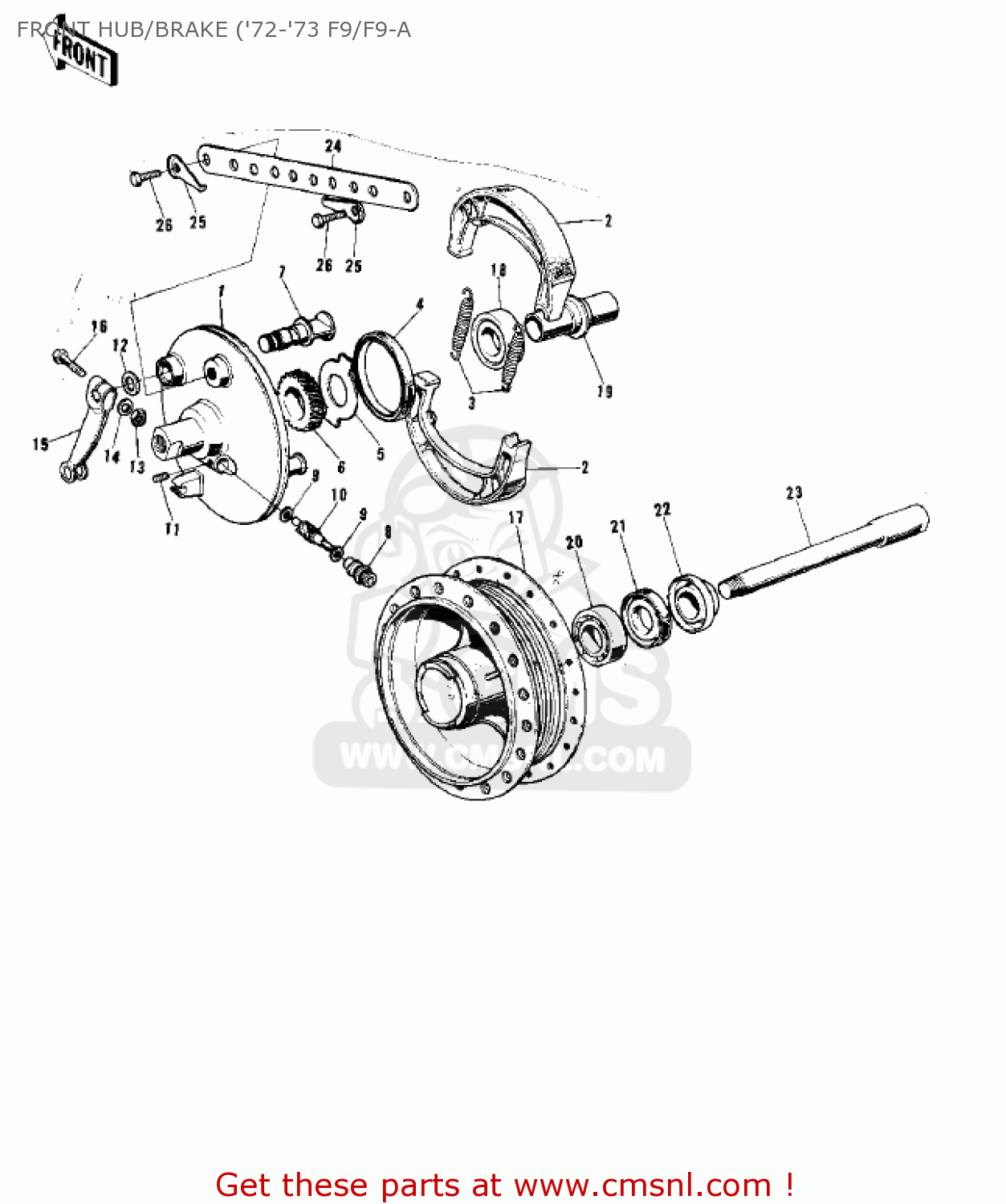

Front hub/brake ('72-'73 f9/f9-a diagram F9C 1975 USA CANADA
FRONT HUB/BRAKE ('72-'73 F9/F9-A F9C 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
41043025
ref: 1
PANEL-FRONT BRAKE
€ 31.00
?
41035024
ref: ?
Includes items 1 - 1
PANEL ASSY-FRNT BRAKE
€ 82.00
?
4103502421
ref: ?
Includes items 1 - 1
FRONT BRAKE PANEL ASSEMBLY,FLAT BLACK
€ 333.00
2
42019011
ref: 2
SHOE,BRAKE (MCA)
€ 18.50
3
42020004
ref: 3
SPRING-BRAKE SHOE
€ 5.50
4
92050010
ref: 4
OIL SEAL-F BRK PANEL
€ 13.00
5
41064003
ref: 5
RECEIVER-SPEEDOMETER
€ 7.00
6
41059011
ref: 6
28T
GEAR-SPEEDOMETER
€ 15.00
7
42026021
ref: 7
CAM-BRAKE
€ 19.00
8
41062001
ref: 8
BUSH-SPEEDMETER CABLE
€ 7.00
9
41063001
ref: 9
WASHER-THRST SPD PINI
€ 3.00
10
41060010
ref: 10
PINION-SPEEDOMETER
€ 13.50
11
41070004
ref: 11
SCREW-BUSHING SET
€ 0.50
11
41082001
ref: 11
PIN-SPRING
€ 2.50
12
41051001
ref: 12
DUST SHIELD-BRAKE CAM
€ 2.50
13
311B0600
ref: 13
NUT,6MM
€ 0.50
14
410B0600
ref: 14
WASHER-PLAIN-SMALL,6M
€ 0.50
15
42029037
ref: 15
LEVER,REAR BRAKE CAM
€ 27.50
16
110R0635
ref: 16
BOLT 6X35
€ 3.50
16
112G0635
ref: 16
BOLT-UPSET,6X35
€ 2.50
?
41034022
ref: ?
Includes items 17 -
DRUM ASSY-FRONT BRAKE
€ 82.50
18
601B6202Z
ref: 18
BEARING-BALL,#6202ZC3
€ 13.00
19
41039004
ref: 19
SPACER-FR HUB BEARING
€ 6.00
20
601B6202
ref: 20
BEARING-BALL,#6202C3
€ 14.50
21
92050008
ref: 21
OIL SEAL-RR BRK DRUM
€ 10.00
22
41069004
ref: 22
COLLAR-FRONT HUB R.H
€ 3.50
23
41068029
ref: 23
AXLE-FRONT
€ 17.00
24
43007022
ref: 24
TORQUE LINK-FRONT BRK
€ 11.50
25
92088012
ref: 25
WASHER-LOCK
€ 4.50
26
92001086
ref: 26
BOLT-HEX HEAD,8X20
€ 1.50
