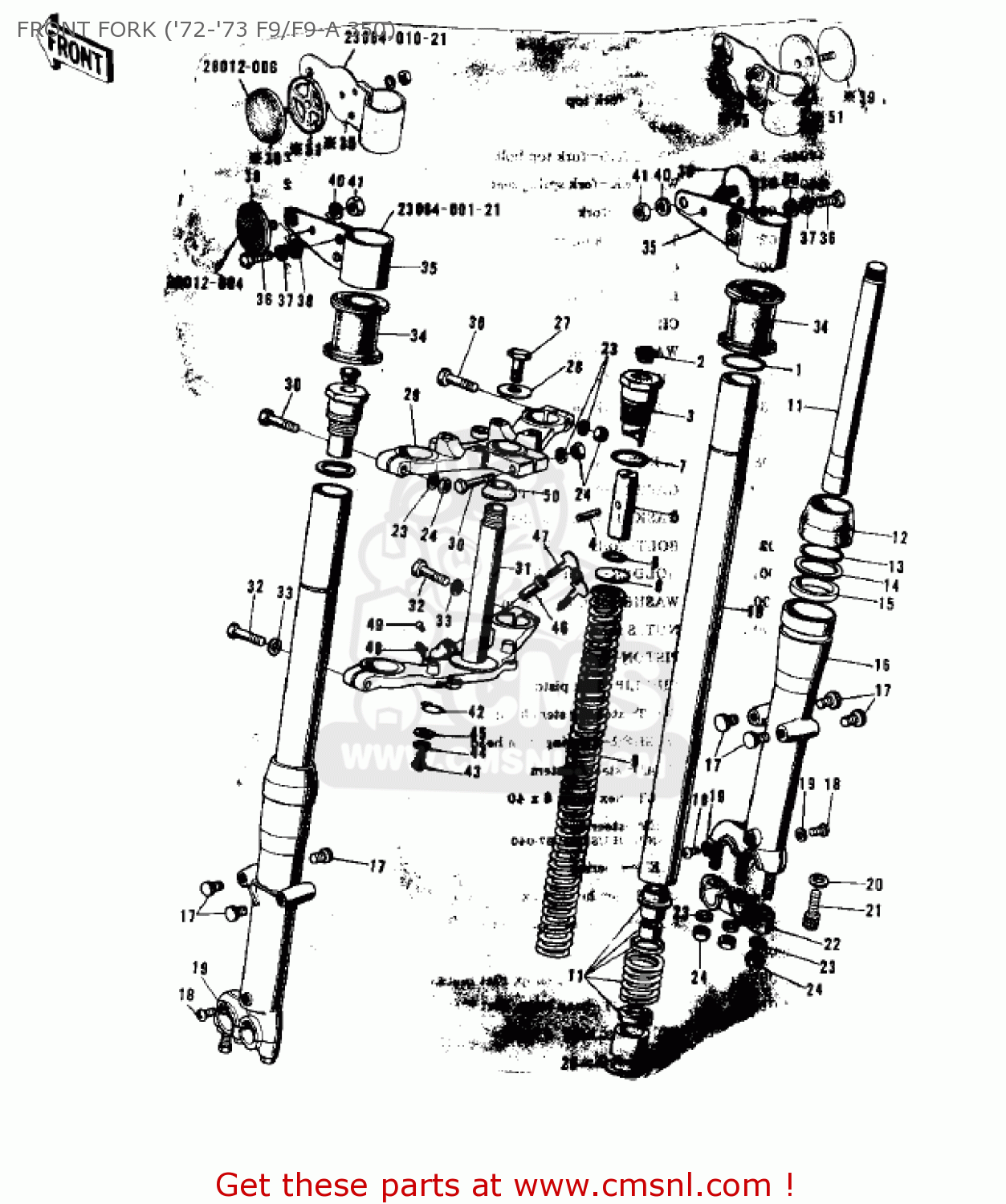

FRONT FORK ('72-'73 F9/F9-A 350)

ref

part #

description

quantity

?

4400108580
ref: ?
Includes items 1 - 3

FRONT FORK ASSY,BUFF

€ 538.00

?

44001103
ref: ?
Includes items 1 - 3

FRONT FORK

€ 1,935.00

1

44044009
ref: 1

CIRCLIP

€ 3.50

?

44041030
ref: ?
Includes items 2 - 6

BOLT-FORK TOP

€ 37.50

?

44041047
ref: ?
Includes items 2 - 6

BOLT,FORK TOP

€ 84.50

2

14039001
ref: 2

CAP,RUBBER

€ 3.00

2

44062004
ref: 2
F9A

FORK BOLT CAP,TOP

€ 8.00

7

44046015
ref: 7

RING-O,FORK TOP

€ 4.50

8

44029015
ref: 8

WASHER-FORK SPRG SEAT

€ 0.50

9

44026028
ref: 9

SPRING-FORK

€ 18.00

10

44013022
ref: 10

TUBE-FORK INNER

€ 158.50

11

44022003
ref: 11

CYLINDER COMP-FORK

€ 87.50

12

44010017
ref: 12

DUST SHIELD-FORK

€ 14.00

13

44044005
ref: 13

CIRCLIP-OIL SEAL FIT

€ 6.50

14

44043023
ref: 14

WASHER-OIL SEAL FIT

€ 2.00

15

44009020
ref: 15

OIL SEAL,FORK

€ 38.00

17

44062002
ref: 17

CAP

€ 1.50

18

220B0408
ref: 18

SCREW-PAN-CROS

€ 0.50

19

44045002
ref: 19

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

20

44045030
ref: 20

GASKET,FORK CYLINDER

€ 2.50

21

44041027
ref: 21

BOLT-FORK CYLINDER

€ 2.50

22

44063001
ref: 22

HOLDER-FRONT AXLE

€ 17.50

22

4406300180
ref: 22
F9A

FRONT AXLE HOLDER,BUFF

€ 51.50

23

461F0800
ref: 23

WASHER-SPRING,8MM

€ 0.50

24

311B0800
ref: 24

NUT,8MM

€ 0.50

25

44018003
ref: 25

PISTON-FORK

€ 9.00

26

44044008
ref: 26

CIRCLIP-FORK PISTON

€ 7.00

27

44041007
ref: 27

BOLT-STRNG STEM HEAD

€ 11.50

28

44043016
ref: 28

WASHER,FORK UPPER HOL

€ 7.00

29

44039032
ref: 29

HEAD-STEERING STEM

€ 84.00

30

920011578
ref: 30

BOLT,FLANGED,8X40

€ 4.00

31

44037032
ref: 31

STEERING STEM

€ 349.50

31

44037040
ref: 31
USE 27016-025

STEM-STEERING

€ 99.50

31

44037055
ref: 31
F9A

STEERING STEM

€ 302.00

32

92003064
ref: 32

BOLT-HEX HEAD,12X36

€ 15.00

33

461F1200
ref: 33

WASHER-SPRING,12MM

€ 0.50

34

92075059
ref: 34

DAMPER RUBBER

€ 3.50

35

23064001
ref: 35
*

HEADLAMP BRACKET

€ 37.50

35

2306401021
ref: 35
F9/A

BRACKET-HEAD LAMP,BLK

€ 5.50

36

92007027
ref: 36

BOLT-HEX HEAD,6X18

€ 4.00

37

461F0600
ref: 37

WASHER-SPRING,6MM

€ 0.50

38

410B0600
ref: 38

WASHER-PLAIN-SMALL,6M

€ 0.50

39

28012004
ref: 39
*

REFLECTOR,REFLEX

€ 2.50

39

28001004
ref: 39

REFLECTOR-REFLEX

€ 4.00

39

28012006
ref: 39
F9/A

REFLECTOR-REFLEX,FRNT

€ 16.00

40

461F0500
ref: 40

WASHER-SPRING,5MM

€ 0.50

41

311B0500
ref: 41

NUT-HEX

€ 0.50

42

92037046
ref: 42

CLAMP,CABLE

€ 3.00

43

112B0614
ref: 43

BOLT-UPSET 6X14

€ 2.50

43

112B0614
ref: 43

BOLT-UPSET 6X14

€ 2.50

44

461F0600
ref: 44

WASHER-SPRING,6MM

€ 0.50

45

410B0600
ref: 45

WASHER-PLAIN-SMALL,6M

€ 0.50

?

27016025
ref: ?
Includes items 46 an

STEERING LOCK ASSEMBLY

€ 39.50

47

2700804255
ref: 47
NOT REQUIRED FOR 440

KEY SET,#155

€ 8.00

47

2700804256
ref: 47
NOT REQUIRED FOR 440

KEY SET,#156

€ 8.00

47

2700804257
ref: 47
NOT REQUIRED FOR 440

KEY SET,#157

€ 8.00

47

2700804258
ref: 47
NOT REQUIRED FOR 440

KEY SET,#158

€ 8.00

47

2700804259
ref: 47
NOT REQUIRED FOR 440

KEY SET,#159

€ 5.50

47

2700804260
ref: 47
NOT REQUIRED FOR 440

KEY SET,#160

€ 4.50

47

2700804261
ref: 47
NOT REQUIRED FOR 440

KEY SET,#161

€ 4.50

47

2700804262
ref: 47
NOT REQUIRED FOR 440

KEY SET,#162

€ 4.00

47

2700804263
ref: 47
NOT REQUIRED FOR 440

KEY SET,#163

€ 4.50

47

2700804264
ref: 47
NOT REQUIRED FOR 440

KEY SET,#164

€ 4.00

48

92033024
ref: 48
NOT REQUIRED FOR 440

CIRCLIP-STEERING LOCK

€ 6.50

49

92099001
ref: 49
NOT REQUIRED FOR 440

SCREW RIVET

€ 2.50

50

92047010
ref: 50
NOT REQUIRED FOR 440

CONE-STERNG BERG LOW

€ 10.00

51

92075137
ref: 51
F9/A

DAMPER RUBBER

€ 3.00
