CRANKCASE ('72-'73 F9/F9-A 350)
F9C 1975 USA CANADA

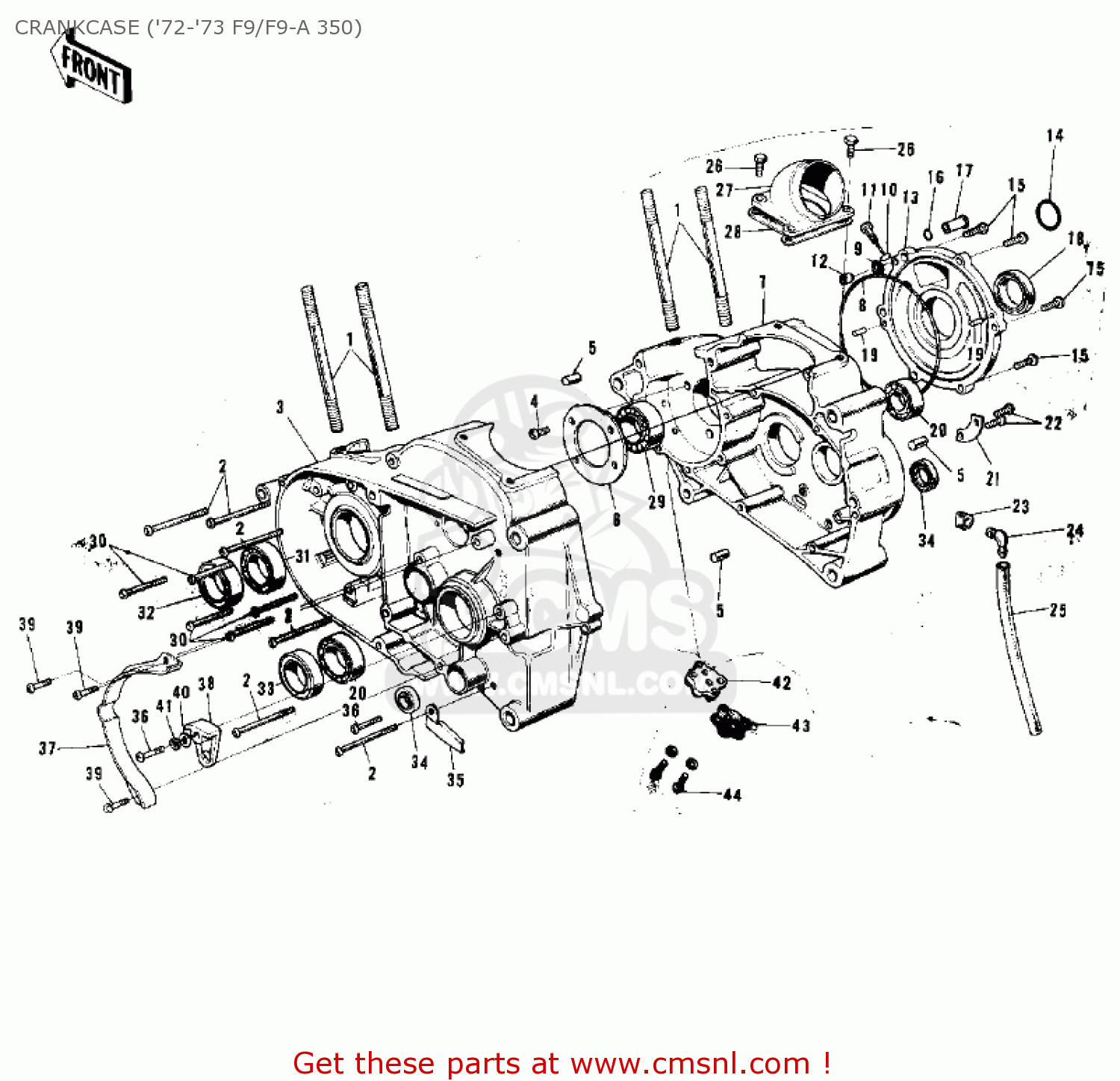

Crankcase ('72-'73 f9/f9-a 350) diagram F9C 1975 USA CANADA
CRANKCASE ('72-'73 F9/F9-A 350) F9C 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
172G1075
ref: 1
STUD,10X75
€ 8.00
2
220B0675
ref: 2
SCREW,PAN HEAD,6X75
€ 3.00
3
14001065
ref: 3
CRANKCASE SET
€ 306.00
4
221B0616
ref: 4
SCREW-CNTSNK HD,6X16
€ 0.50
5
920431037
ref: 5
PIN,DOWEL,10X8.2X14
€ 0.50
6
14014019
ref: 6
HOLDER-CRANK BEARING
€ 5.50
7
14001065
ref: 7
CRANKCASE SET
€ 306.00
7
14003062
ref: 7
F9A
CRANKCASE,RH
€ 372.50
8
92055039
ref: 8
'O' RING 134.5MM
€ 9.00
9
670B1505
ref: 9
O RING,5MM
€ 1.00
10
92055011
ref: 10
'O' RING 5MM
€ 4.00
11
92062004
ref: 11
NOZZLE-OIL INJECTION
€ 7.00
12
92062008
ref: 12
NOZZLE
€ 7.00
13
14019048
ref: 13
COVER-ROTARY DISC VLV
€ 31.50
14
670B3035
ref: 14
'O' RING,35MM
€ 1.50
15
220B0620
ref: 15
SCREW-PAN HEAD,6X20
€ 2.50
16
92055037
ref: 16
RING-O,CHECK VALVE
€ 2.50
17
16128006
ref: 17
VALVE-CHECK
€ 7.50
18
653B354808
ref: 18
OIL SEAL,TB35488
€ 12.50
19
610A0512
ref: 19
ROLLER,5X12
€ 3.00
20
601B6205
ref: 20
BEARING-BALL,#6205C3
€ 14.00
21
14014020
ref: 21
HOLDER-MISSION BERNG
€ 1.00
22
220B0614
ref: 22
SCREW-PAN HEAD,6X14
€ 2.00
23
92071042
ref: 23
GROMMET
€ 2.50
24
140691001
ref: 24
BREATHER
€ 17.50
25
92059061
ref: 25
PIPE-BREATHER
€ 3.00
26
112G0620
ref: 26
BOLT 6X20
€ 1.00
26
112G0620
ref: 26
BOLT 6X20
€ 1.00
27
11015021
ref: 27
INLET PIPE
€ 18.00
28
11017005
ref: 28
GASKET-INLET PIPE (NAS)
€ 1.50
29
92045016
ref: 29
BEARING-BALL,#SC0626C
€ 36.00
30
220B0650
ref: 30
SCREW-PAN HEAD,6X50
€ 2.00
31
601B6305
ref: 31
BEARING-BALL,#6305C3
€ 30.00
32
920491250
ref: 32
SEAL-OIL
€ 12.00
33
92050033
ref: 33
SEAL-OIL,TB3040
€ 14.00
34
92049004
ref: 34
OIL SEAL SB12205
€ 6.00
35
14076001
ref: 35
COVER-WIRING HARNESS
€ 1.50
36
220B0630
ref: 36
SCREW-PAN HEAD,6X30
€ 2.50
37
14077001
ref: 37
CHAIN GUIDE
€ 22.00
38
13123004
ref: 38
TENSIONER-CHAIN
€ 5.50
39
220B0612
ref: 39
SCREW-PAN HEAD,6X12
€ 1.00
40
410B0600
ref: 40
WASHER-PLAIN-SMALL,6M
€ 0.50
41
461F0600
ref: 41
WASHER-SPRING,6MM
€ 0.50
42
16128008
ref: 42
F9A
VALVE,CHECK
€ 9.50
43
14051003
ref: 43
F9A
GASKET,CHECK TALVE (MCA)
€ 2.00
44
220B0625
ref: 44
F9A
SCREW-PAN HEAD,6X25
€ 1.50
