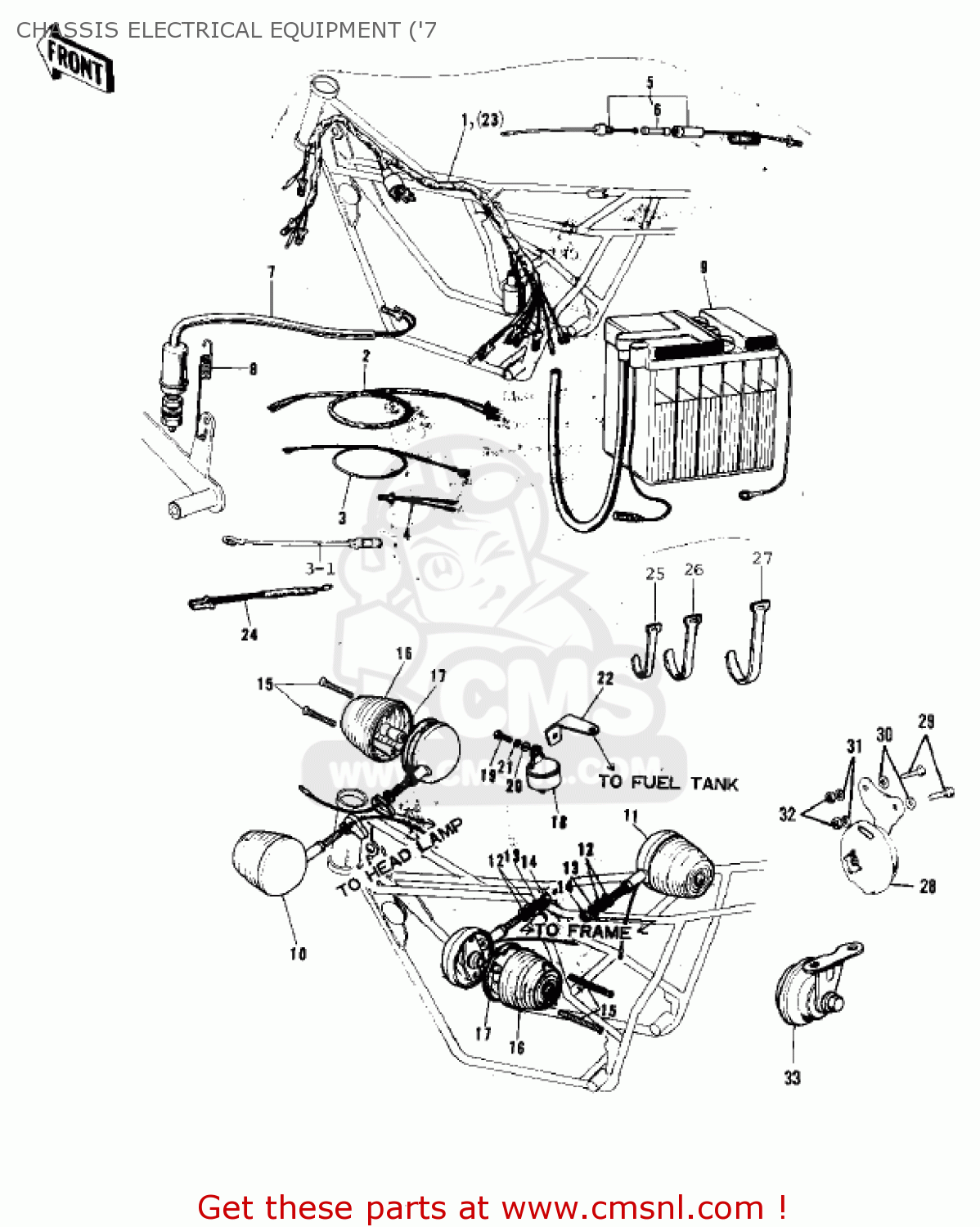

CHASSIS ELECTRICAL EQUIPMENT ('7

ref

part #

description

quantity

1

26001069
ref: 1

WIRING HARNESS-MAIN

€ 103.50

1

26001078
ref: 1

UNAVAILABLE IN PRICE BOOK

€ 0.00

2

26002027
ref: 2

WIRING HARNWSS-REAR

€ 10.00

2

26002029
ref: 2

WIRING HARNESS-REAR

€ 8.00

3

26010017
ref: 3

WIRE-BATTERY GROUND

€ 2.50

3-1

26011093
ref: 3-1

WIRE-LEAD

€ 6.00

4

26011042
ref: 4

WIRE-LEAD

€ 3.00

5

26004008
ref: 5

FUSE-ASSY

€ 13.00

6

26006003
ref: 6

FUSE 10A

€ 3.00

7

27010018
ref: 7

SWITCH-BRAKE LAMP

€ 23.00

8

27011004
ref: 8

SPRING-BRAKE LAMP SW

€ 2.50

9

26012021
ref: 9

BATTERY 6V 2AH

€ 28.00

9

26012035
ref: 9

BATTERY,YUA,6N4B-2A-3

€ 73.50

10

23040032
ref: 10
OPTION

LAMP-FRNT TURN SIGNAL

€ 26.00

11

23043030
ref: 11
OPTION

LAMP-REAR TURN SIGNA

€ 22.50

12

410B1000
ref: 12
OPTION

WASHER-PLAIN-SMALL,10

€ 0.50

13

461F1000
ref: 13
OPTION

WASHER-SPRING,10MM

€ 0.50

14

315B1000
ref: 14
OPTION

NUT,10MM

€ 0.50

15

222B0315A
ref: 15
OPTION

SCREW-OVL CNTSNK,3X15

€ 2.50

16

23048011
ref: 16
OPTION

LENS-SIGNAL LAMP

€ 15.50

17

92069042
ref: 17
OPTION

BULB,6V 8W

€ 3.00

18

27002009
ref: 18
OPTION

RELAY-TURN SIGNAL

€ 23.50

19

220B0616
ref: 19
OPTION

SCREW-PAN HEAD,6X16

€ 2.50

20

410B0600
ref: 20
OPTION

WASHER-PLAIN-SMALL,6M

€ 0.50

21

461F0600
ref: 21
OPTION

WASHER-SPRING,6MM

€ 0.50

22

27023001
ref: 22
OPTION

BRACKET-SIGNAL RELAY

€ 2.00

23

26001054
ref: 23
OPTION

WIRING HARNESS-MAIN

€ 38.50

24

26011058
ref: 24
OPTION

WIRE-LEAD

€ 4.00

25

92072030
ref: 25
F9A

BAND,SHORT

€ 3.00

26

92072031
ref: 26
F9A

BAND,MIDDLE

€ 3.00

27

92072032
ref: 27
F9A

BAND,LONG

€ 3.00

28

27003062
ref: 28
F9

HORN

€ 28.50

28

27003062
ref: 28
F9

HORN

€ 28.50

29

112G0620
ref: 29
F9

BOLT 6X20

€ 1.00

30

411B0600
ref: 30
F9

WASHER-PLAIN,6MM

€ 0.50

31

461F0600
ref: 31
F9

WASHER-SPRING,6MM

€ 0.50

32

311B0600
ref: 32

NUT,6MM

€ 0.50

33

27003057
ref: 33
F9-A

HORN

€ 83.00

33

27003057
ref: 33
F9-A

HORN

€ 83.00

all assemblies
