CRANKSHAFT/PISTON/ROTARY VALVE (
F9C 1975 USA CANADA

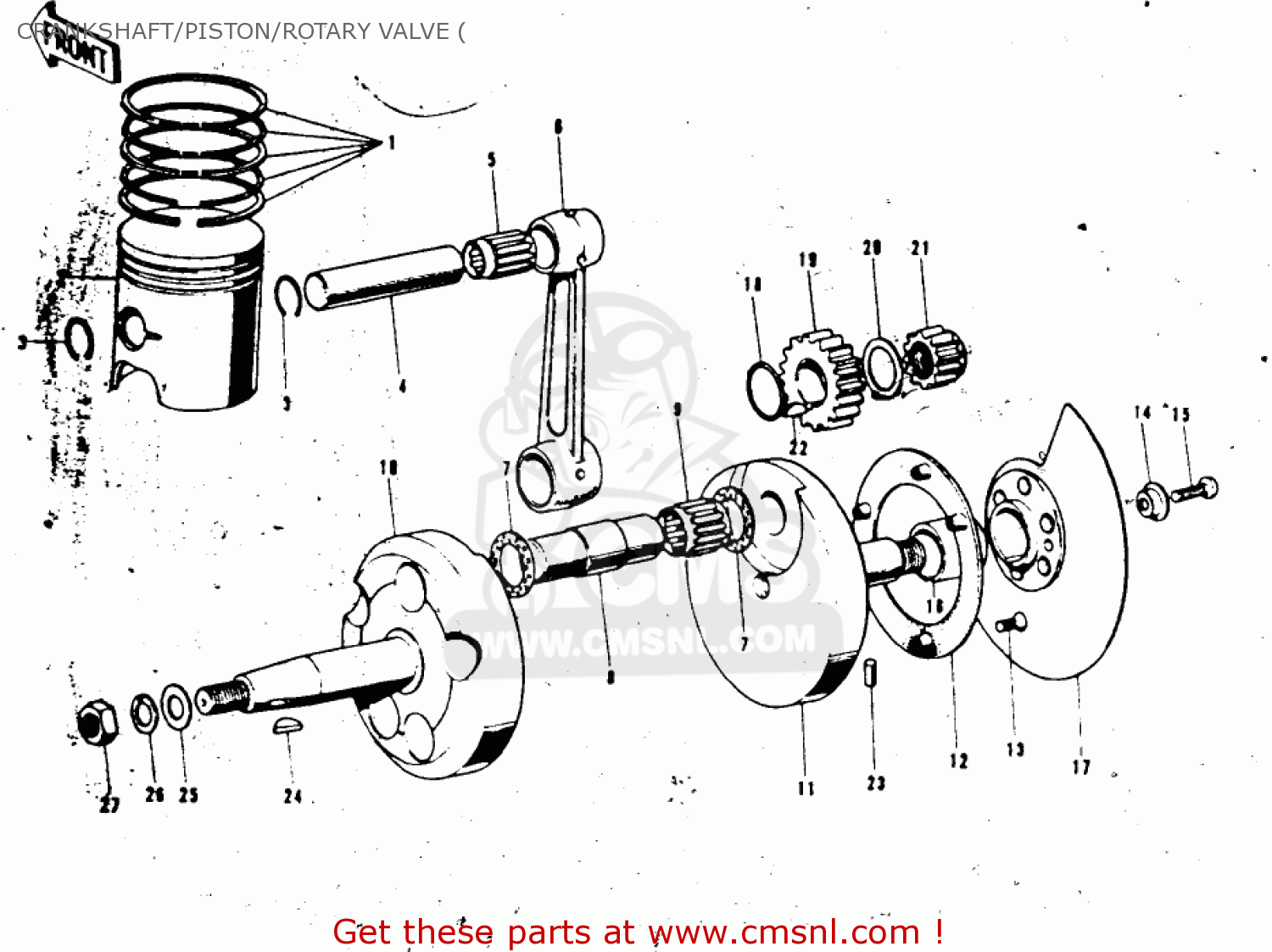

Crankshaft/piston/rotary valve ( diagram F9C 1975 USA CANADA
CRANKSHAFT/PISTON/ROTARY VALVE ( F9C 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13008024
ref: 1
RING SET,STD
€ 95.50
2
13001039
ref: 2
PISTON,STD
€ 47.50
3
92036015
ref: 3
RING-SNAP,PISTON PIN
€ 3.00
4
13002016
ref: 4
PIN-PISTON
€ 20.00
5
130331010
ref: 5
KBK182223.8X
BEARING-NEEDLE,KBK18X
€ 22.50
?
13044017
ref: ?
Includes items 6 - 9
CONNECTING ROD SET
€ 144.50
?
13036036
ref: ?
Includes items 6 - 1
CRANK&CONROD ASSY
€ 796.50
7
92026069
ref: 7
WASHER-CONROD SIDE
€ 4.00
8
13035026
ref: 8
CRANK PIN
€ 44.50
9
13034032
ref: 9
PK293817.8X
BRG-N,PK293817.8X2
€ 12.50
9
13034032
ref: 9
PK293817.8X3 F9C
BRG-N,PK293817.8X2
€ 12.50
10
13037045
ref: 10
CRANKSHAFT,L.H
€ 796.50
11
13038045
ref: 11
CRANKSHAFT,R.H
€ 796.50
12
13045006
ref: 12
HOLDER-CRANKSHAFT OIL
€ 8.00
13
92012002
ref: 13
SCREW-OVL CNTSNK,5X10
€ 1.50
14
92026071
ref: 14
SPACER-R.H CRANKSHAFT
€ 3.00
15
92011025
ref: 15
SCREW-PAN HEAD,6X20
€ 2.00
16
92027097
ref: 16
COLLAR-CRANKSHAFT
€ 15.00
17
12001022
ref: 17
VALVE-ROTARY DISC
€ 154.00
18
670B3022
ref: 18
'O' RING,22MM
€ 2.00
19
13121028
ref: 19
PRIMARY PINION,24T
€ 216.50
20
92024029
ref: 20
WASHER-LOCK,18MM
€ 1.00
21
16084011
ref: 21
PINION-OIL PUMP
€ 61.00
22
510A5100
ref: 22
KEY-WOODRUFF
€ 1.50
23
610A0412
ref: 23
ROLLER,4X12
€ 2.50
24
92038001
ref: 24
WOODRUFF KEY
€ 3.00
25
92022172
ref: 25
WASHER,14.5X25X3.6
€ 6.50
26
461F1400
ref: 26
WASHER-SPRING,14MM
€ 0.50
27
92015043
ref: 27
NUT,14MM
€ 3.50
